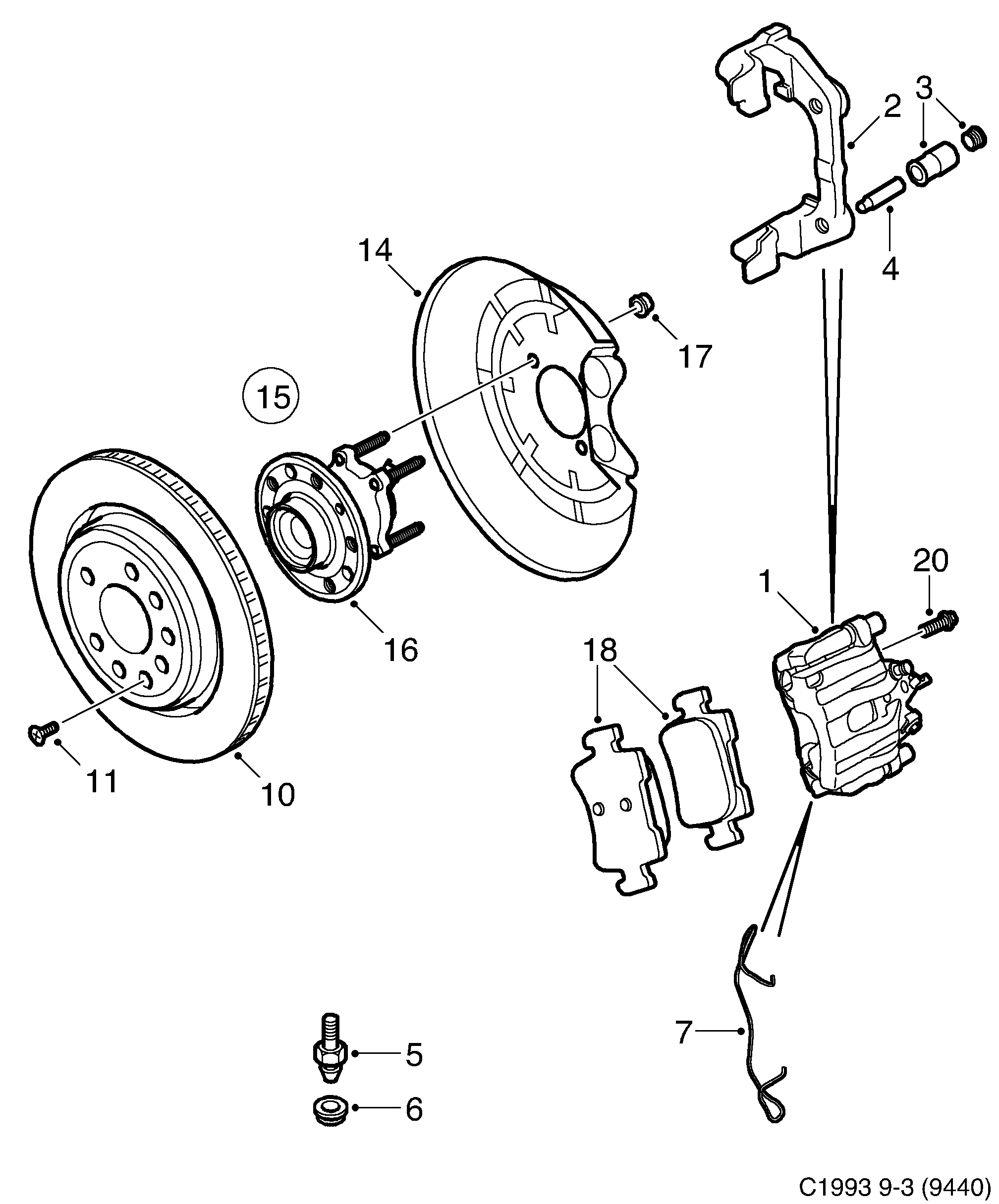

190: Brakes - Rear wheel brake
(2003 - 2005 | 4D, CV, 5D) | For 9-3 (9440) (2005)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93172182 Brake housing B207E, B207L, D223L, Z18XE | 15'' Brake. Diameter 278 mm / 10.9 in. Thickness 12 mm / 0.47 in | LH CODE = DA | 1 | |
| 1 | 93172183 Brake housing B207E, B207L, D223L, Z18XE | 15'' Brake. Diameter 278 mm / 10.9 in. Thickness 12 mm / 0.47 in | RH CODE = DA | 1 | |
| 1 | 93172186 Brake housing -2005 | B207R, Z19DT, Z19DTH | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | LH | 1 | |
| 1 | 93172184 Brake housing 2005- | B207R, Z19DT, Z19DTH | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | LH CODE = DB | 1 | |
| 1 | 93172187 Brake housing -2005 | B207R, Z19DT, Z19DTH | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | RH | 1 | |
| 1 | 93172185 Brake housing 2005- | B207R, Z19DT, Z19DTH | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | RH CODE = DB | 1 | |
| 2 | 93172188 Carrier 15'' Brakes | 2 | |
| 2 | 93172189 Carrier 16'' Brakes | 2 | |
| 3 | 90510227 Guide | 2 | |
| 4 | 90297771 Guide | 2 | |
| 5 | 93172175 Bleed screw | 1 | |
| 6 | 90576233 Dust cap | 2 | |
| 7 | 93172191 Spring | 1 | |
| 10 | 12762290 Brake disc 2005-2005 | B207E, B207L, D223L, Z18XE | 15'' Brake. Diameter 278 mm / 10.9 in. Thickness 12 mm / 0.47 in | CODE = BA | 2 | |
| 10 | 12762291 Brake disc 2005-2005 | B207R, Z19DT, Z19DTH | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | CODE = BB | 2 | |
| 11 | 11093893 Screw | 2 | |
| 14 | 13168748 Backing plate 2005-2005 | 15'' Brake. Diameter 278 mm / 10.9 in. Thickness 12 mm / 0.47 in | LH | 1 | |
| 14 | 13168749 Backing plate 2005-2005 | 15'' Brake. Diameter 278 mm / 10.9 in. Thickness 12 mm / 0.47 in | RH | 1 | |
| 14 | 13168750 Backing plate 2005-2005 | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | LH | 1 | |
| 14 | 13168751 Backing plate 2005-2005 | 16'' Brake. Diameter 292 mm / 11.5 in. Thickness 20 mm / 0.79 in. | RH | 1 | |
| 15 | 93170611 Wheel hub With Speed sensor | 2 | |
| 16 | 24421906 93170611 Wheel hub | 1 | |
| 17 | 9191936 Flange lock nut | 4 | |
| 18 | 93183140 13322091 Brake pad kit 2004-2005 | 1 | |
| 18 | 93166942 Brake pad kit 2004-2005 | 1 | |
| 20 | 93171776 Screw 2004-2005 | 4 |
