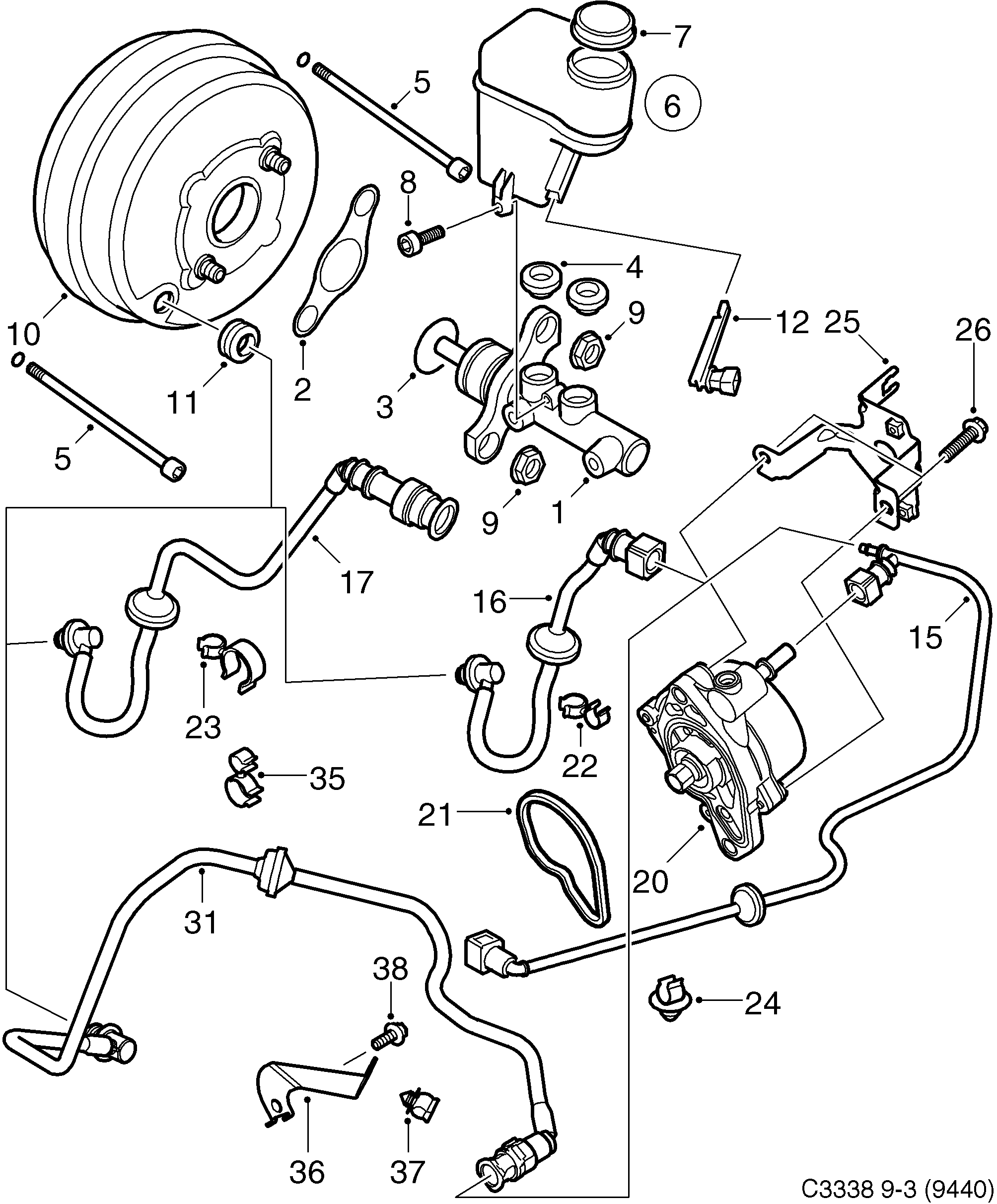

1100: Brakes - Footbrake system - Master cylinder - vacuum servo
(2003 - 2011 | Z18XE, Z19DT, Z19DTH, B207E, B207L, B207R | 4D, 5D, CV) | For 9-3 (9440) (2006)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93172089 Master cylinder LHD | 1 | |
| 1 | 93172091 Master cylinder RHD | 1 | |
| 2 | 93172095 Gasket | 1 | |
| 3 | 9117595 Sealing ring | 1 | |
| 4 | 90509681 Plug | 2 | |
| 5 | 93172096 Screw | 2 | |
| 6 | 93172092 Reservoir LHD | 1 | |
| 6 | 93172093 Reservoir RHD | 1 | |
| 7 | 93172094 93189060 Cover | 1 | |
| 8 | 93170487 Hexagon screw | 1 | |
| 9 | 93172097 Nut | 2 | |
| 10 | 93175747 Brake servo 2004-2010, LHD | 1 | |
| 10 | 93175748 Brake servo 2004-2010, RHD | 1 | |
| 11 | 93174830 Grommet 2004-2011 | 1 | |
| 12 | 93175090 Level sensor | 1 | |
| 15 | 12789292 12783806 Vacuum pipe 2003-2008 | B207 | 1 | |
| 16 | 12766023 Vacuum pipe 2005-2011, LHD | B207 | 1 | |
| 16 | 12766022 Vacuum pipe 2005-2011, RHD | B207 | 1 | |
| 17 | 12793464 Vacuum pipe LHD | D223L | 1 | |
| 17 | 12793465 Vacuum pipe RHD | D223L | 1 | |
| 20 | 55561099 Vacuum pump 2005-2011 | 1 | |
| 20 | 93178955 93190660 Vacuum pump 2003-2006 | Z19DT | 1 | |
| 20 | 93179221 55205446 Vacuum pump 2004-2007 | Z19DTH | 1 | |
| 21 | 55561100 Gasket 2005-2011 | B207 | 1 | |
| 21 | 93178956 Seal 2003-2010 | Z19DT | 1 | |
| 21 | 93179222 Seal 2003-2010 | Z19DTH | 1 | |
| 22 | 24457009 Clip | 1 | |
| 23 | 92152154 Clip 2006-2010 | Z19DTH | 1 | |
| 24 | 92152171 Clip LHD | B207 | 1 | |
| 25 | 55354051 Bracket B207 | 1 | |
| 26 | 11089674 Screw B207 | 2 | |
| 26 | 93181977 Screw 2003-2010 | Z19DT | 2 | |
| 26 | 93179223 Screw 2003-2010 | Z19DTH | 2 | |
| 31 | 93166703 Vacuum pipe 2004-2009 | Z18XE | 1 | |
| 31 | 93166784 Vacuum pipe 2003-2010, LHD | Z19DT | 1 | |
| 31 | 12806044 Vacuum pipe 2003-2010, RHD | Z19DT | 1 | |
| 31 | 12806073 Vacuum pipe LHD | Z19DTH, Z19DTR, A19DTR | 1 | |
| 31 | 12806045 Vacuum pipe RHD | Z19DTH, Z19DTR, A19DTR | 1 | |
| 35 | 12793889 Clamp 2004-2009 | Z18XE | 1 | |
| 35 | 24419235 Clip 2003-2010 | Z19DTH | 1 |
