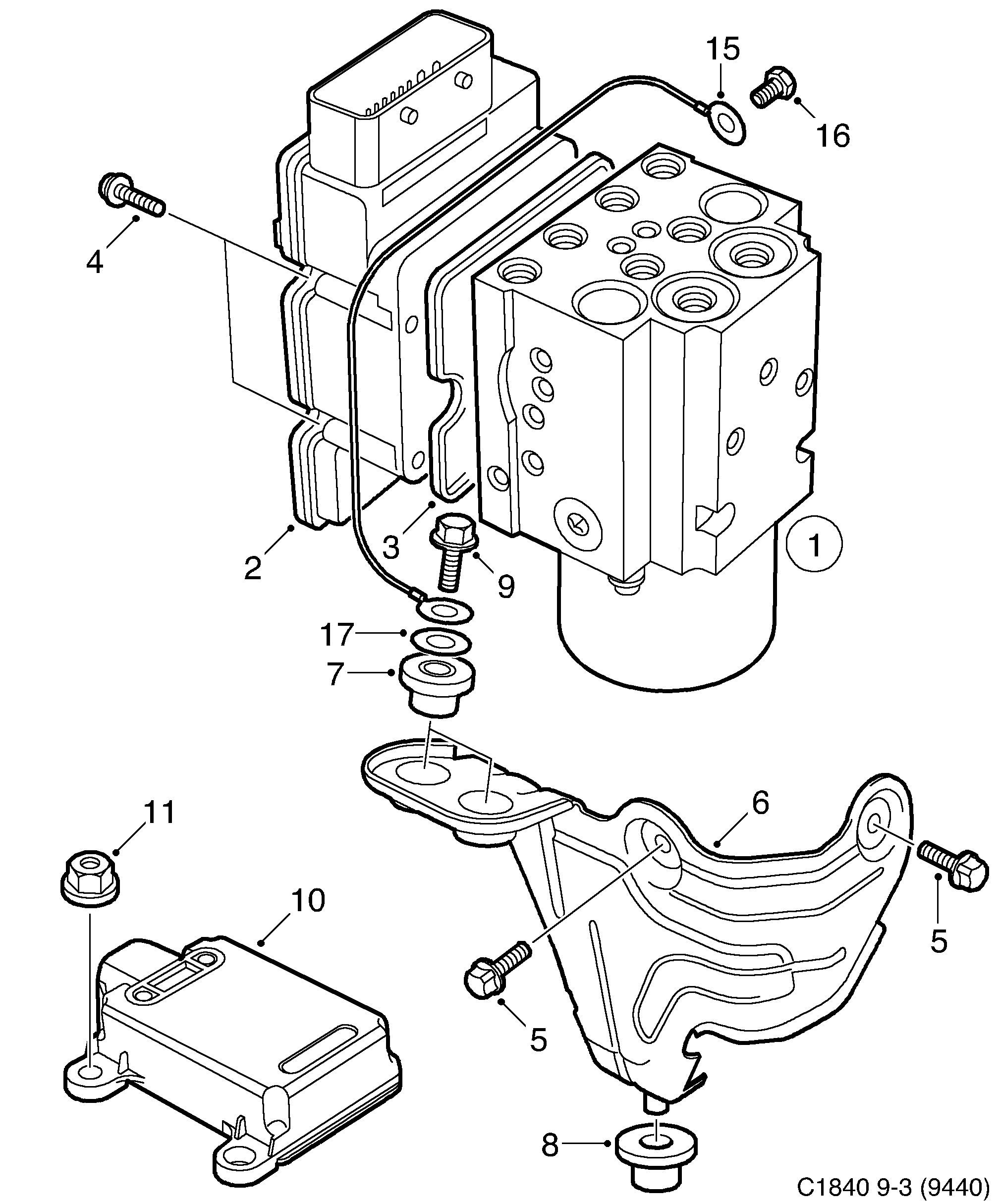

1000: Brakes - Footbrake system - Hydraulic unit ABS
(2003 - 2011 | 4D, CV, 5D) | For 9-3 (9440) (2007)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93170632 Hydraulic unit 2006-2011 | ABS | 1 | |
93170479 Screw Not as separate spare part. | 2 | ||
| 3 | 93170627 Gasket Not as separate spare part. | 1 | |
| 1 | 93185682 Hydraulic unit 2006-2011 | Z18XE, B207, Z19DT, Z19DTH, Z19DTR, A19DTR | ESP | 1 | |
93170479 Screw Not as separate spare part. | 4 | ||
| 1 | 93185682 Hydraulic unit 2006-2010 | B284 | ESP | 1 | |
93170479 Screw Not as separate spare part. | 4 | ||
| 2 | 93190837 93196759 Control unit 2007-2008 | Z18XE, B207, Z19DT, Z19DTH, Z19DTR | ESP | 1 | |
93170479 Screw Not as separate spare part. | 2 | ||
| 3 | 93170628 Gasket Not as separate spare part. | 1 | |
| 2 | 93190838 93196760 Control unit 2007-2008 | B284 | ESP | 1 | |
| 2 | 93190839 Control unit 2006-2011 | Hill start assistant Less All Wheel Drive (XWD) | ESP | 1 | |
93170479 Screw Not as separate spare part. | 2 | ||
93170628 Gasket Not as separate spare part. | 1 | ||
| 2 | 93190836 Control unit 2007-2008 | Without ESP | 1 | |
93170479 Screw Not as separate spare part. | 2 | ||
93170628 Gasket Not as separate spare part. | 1 | ||
| 4 | 93170479 Screw | 4 | |
| 5 | 11588710 Screw | 3 | |
| 6 | 12785189 Bracket | 1 | |
| 7 | 24410153 Damper | 2 | |
| 8 | 24402550 Damper | 1 | |
| 9 | 11588726 Hexagon screw | 2 | |
| 10 | 13223930 Yaw rate sensor 2006-2011 | Less All Wheel Drive (XWD) | 1 | |
| 11 | 11900451 Nut | 3 |
