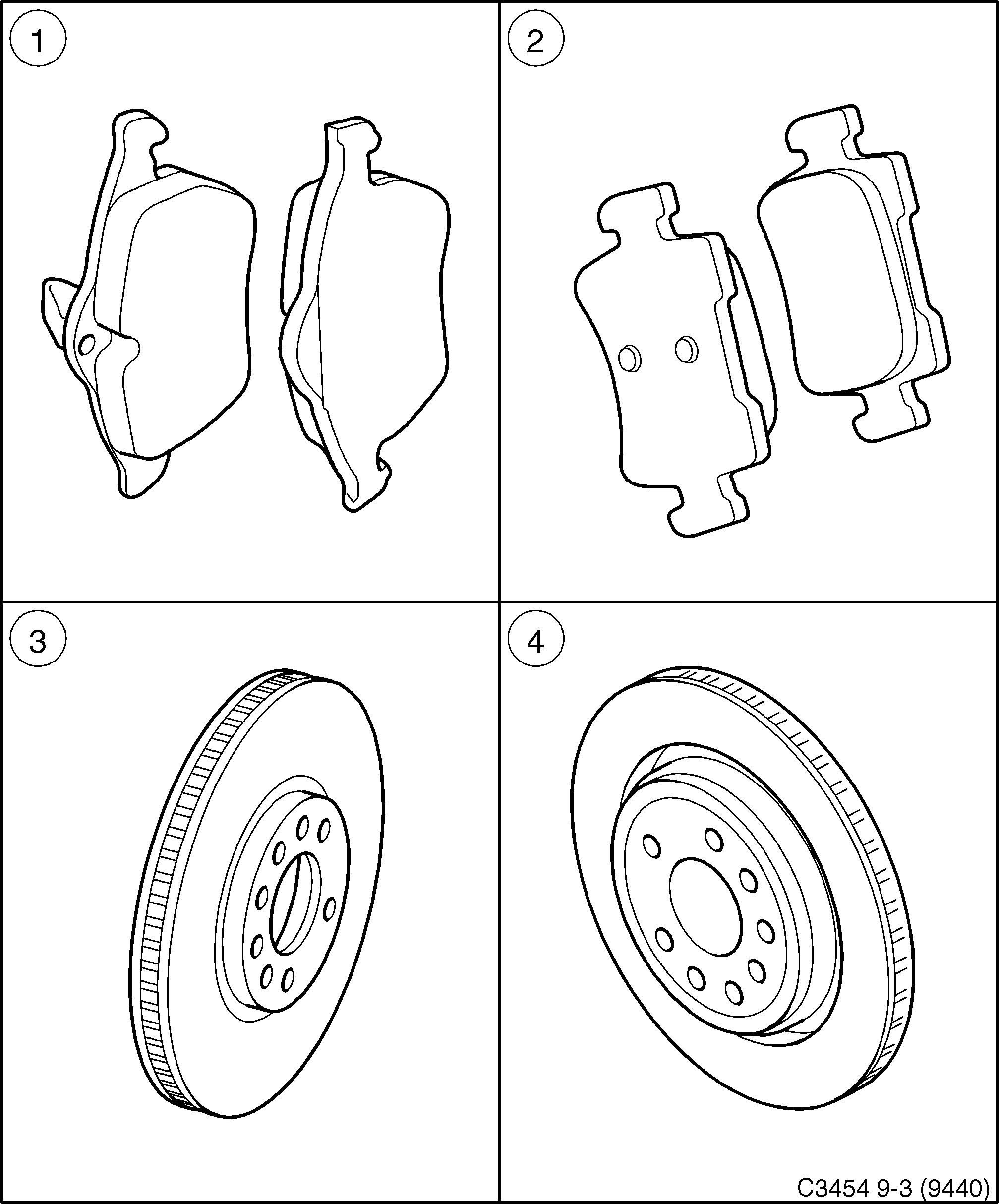

3010: Brakes - Kits - Brakes
(2006 - 2011 | 4D, CV, 5D) | For 9-3 (9440) (2007)
| Pos. | Part No. | Qty | |||
|---|---|---|---|---|---|
| 1 | 93188111 Brake pad kit 2006-2011 | front brake | 15'' Brakes | 1 | |||
| 1 | 93188111 Brake pad kit 2006-2011 | Not for USA and Canada. front brake | 16 '' Brakes | 1 | |||
| 1 | 12765397 93166943 Brake pad kit 2006-2008 | front brake | 16'' Brakes | 1 | |||
| 1 | 93188113 Brake pad kit 2007-2011 | Not for USA and Canada. front brake | 16''+ Brakes | 1 | |||
| 1 | 93190340 93166941 Brake pad kit 2006-2008 | front brake | 16''+ Brakes | 1 | |||
| 2 | 93183140 13322091 Brake pad kit 2006-2007 | rear brake | 1 | |||
| 2 | 93190338 13322091 Brake pad kit 2007-2008 | rear brake | 1 | |||
| 2 | 93166942 Brake pad kit 2006-2011 | rear brake | 1 | |||
| 3 | 93171497 Brake disc 15'' Brake. Diameter 285 mm / 11.2 in. Thickness 25 mm / 0.98 in. front brake | CODE = AA | 1 | |||
| 3 | 93171500 Brake disc 16'' Brake. Diameter 302 mm / 11.9 in. Thickness 28 mm / 1.10 in front brake | CODE = AB | 1 | |||
| 3 | 93175606 Brake disc 16''+ Brake. Diameter 314 mm / 12.4 in. Thickness 28 mm / 1.10 in front brake | CODE = AC | 1 | |||
| 4 | |||||
| 4 | 93188378 Brake disc kit 2006-2011 | rear brake | Brakes 16'',+16'' CODE BB | 1 | |||
12762291 Brake disc | 2 | ||||
| 4 | 93188377 Brake disc kit 2006-2011 | rear brake | Brakes 15'' CODE BA | 1 | |||
12762290 Brake disc | 2 | ||||
