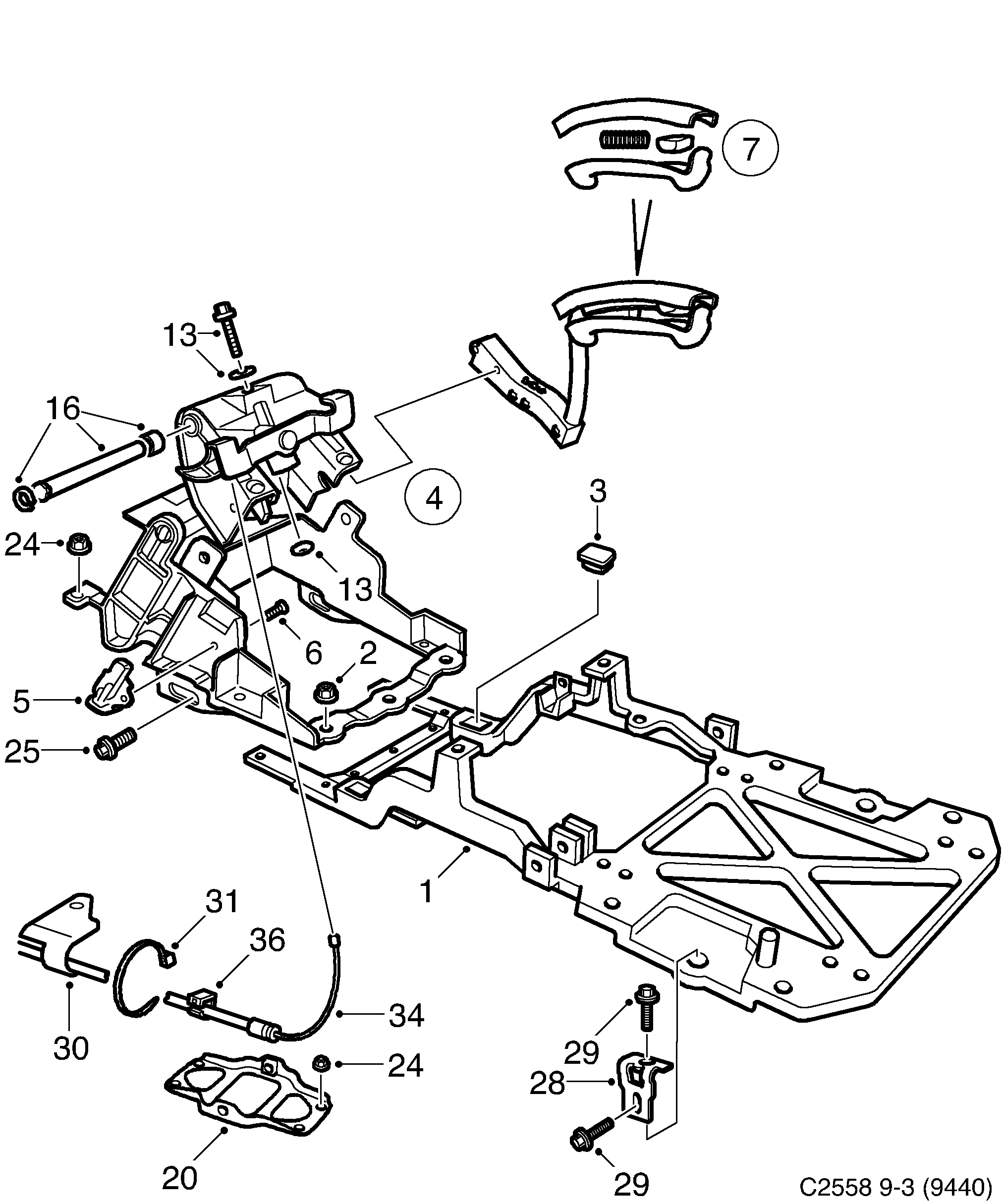

2000: Brakes - Parking brake system
(2003 - 2011 | 4D, CV, 5D) | For 9-3 (9440) (2008)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12804649 Attachment bracket 2004-2011 | 1 | |
| 2 | 92150142 92153044 Nut | 5 | |
| 3 | 12788227 Spacer 4 MM | X | |
| 3 | 12788228 Spacer 5 MM | X | |
| 3 | 12786769 Spacer 6 MM | X | |
| 3 | 12788229 Spacer 7 MM | X | |
| 3 | 12788226 Spacer 8 MM | X | |
| 4 | 12788215 Handbrake LHD | 1 | |
| 4 | 12788216 Handbrake RHD | 1 | |
| 5 | 90087504 Contact | 1 | |
| 6 | 11900378 Screw | 1 | |
| 7 | 12802419 Handle | 1 | |
Handle Upper | 1 | ||
Handle Lower | 1 | ||
Button | 1 | ||
Spring | 1 | ||
| 13 | 12801143 Adjuster kit | 1 | |
12794924 Screw Not as separate spare part. | 1 | ||
12794925 Washer Not as separate spare part. | 1 | ||
12794926 Lock washer Not as separate spare part. | 1 | ||
| 16 | 12801144 Shaft set | 1 | |
12786756 Shaft Not as separate spare part. | 1 | ||
12794931 Bushing Not as separate spare part. | 2 | ||
92150818 Lock ring Not as separate spare part. | 1 | ||
| 20 | 12786770 Cover plate | 1 | |
| 24 | 92150596 92151925 Nut 2005-2011 | 4 | |
| 25 | 92152261 Screw 2003- | 2 | |
| 28 | 12786773 Adjusting plate | 2 | |
| 29 | 92152021 Screw 2003- | 4 | |
| 30 | 12800773 Support 2005-2011 | LH | 1 | |
| 30 | 12800774 Support 2005-2011 | RH | 1 | |
| 30 | 12800773 Support 2006-2011 | LH | 1 | |
| 30 | 12800774 Support 2006-2011 | RH | 1 | |
| 31 | 7593221 30507607 Tensioning band 2005-2011 | 2 | |
| 34 | 12801833 12843729 Handbrake cable 2003-2008 | 2 | |
| 36 | 4807939 Tensioning band 2005-2011 | 2 | |
12794960 Foam plastic piece 2006-2011 | 2 |
