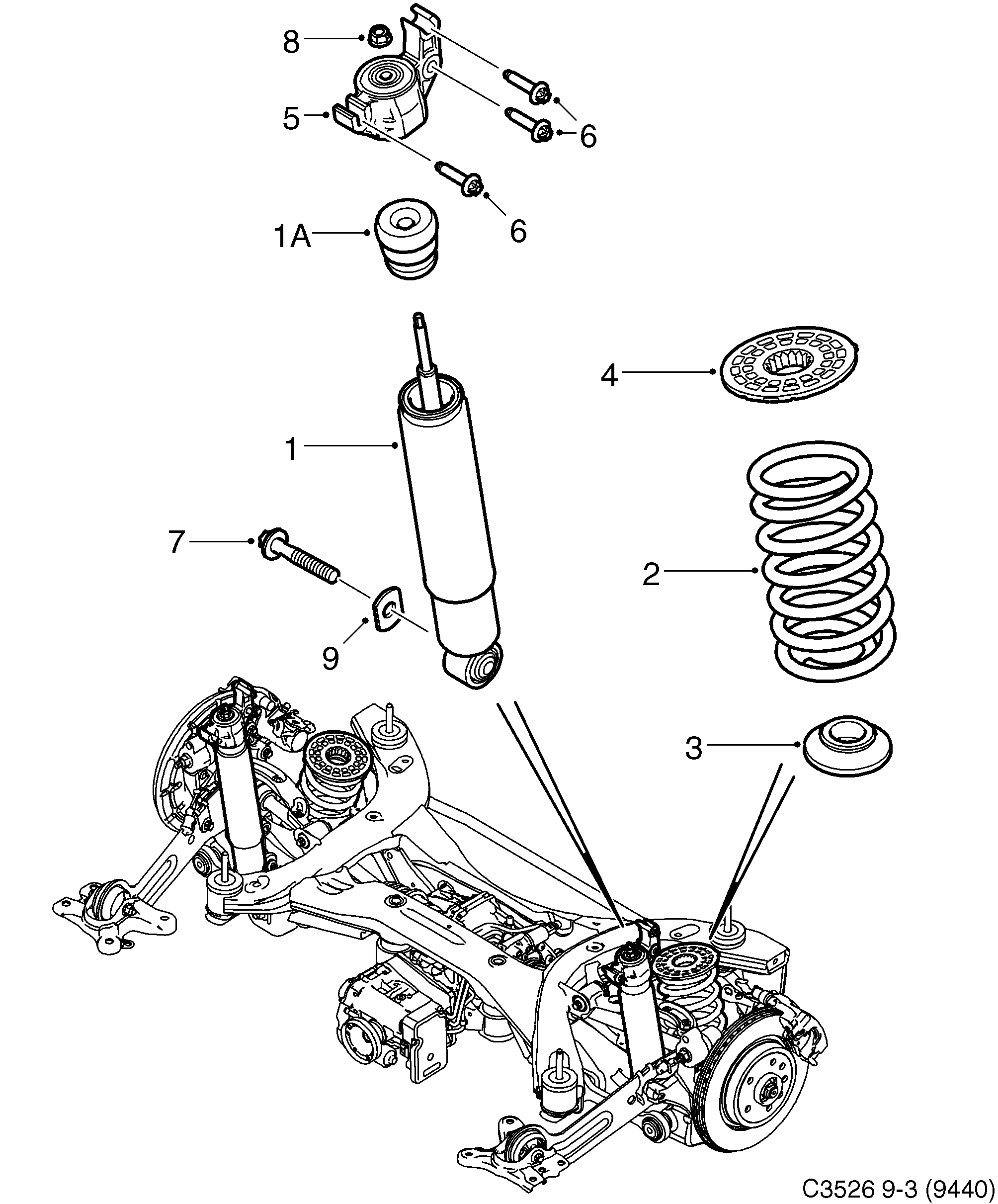

250: Suspension system - Rear suspension - All wheel drive (XWD)

(2008 - 2011) | For 9-3 (9440) (2011)

Pos.	Part No.	Description	Usage	Qty
1	12848630 Rear shock absorber assy 2010-2011 \| B284 \| ''Sport'' With All Wheel Drive (XWD) \| CODE=XC	Rear shock absorber assy	2010-2011 B284 ''Sport'' With All Wheel Drive (XWD) CODE=XC	2
1	12848631 Rear shock absorber assy 2010-2011 \| B284 \| ''Sport'' With All Wheel Drive (XWD) \| CODE=XD	Rear shock absorber assy	2010-2011 B284 ''Sport'' With All Wheel Drive (XWD) CODE=XD	2
1	12848628 Rear shock absorber assy 2010-2011 \| With Mounting details With All Wheel Drive (XWD) \| CODE=XA	Rear shock absorber assy	2010-2011 With Mounting details With All Wheel Drive (XWD) CODE=XA	2
1	12848629 Rear shock absorber assy 2010-2011 \| B284 \| With Mounting details With All Wheel Drive (XWD) \| CODE=XB	Rear shock absorber assy	2010-2011 B284 With Mounting details With All Wheel Drive (XWD) CODE=XB	2
1	12848626 Rear shock absorber assy 2010-2011 \| B207 \| With All Wheel Drive (XWD) \| Code = XE	Rear shock absorber assy	2010-2011 B207 With All Wheel Drive (XWD) Code = XE	2
1	12848627 Rear shock absorber assy 2010-2011 \| B207 \| With All Wheel Drive (XWD) \| Code = XF	Rear shock absorber assy	2010-2011 B207 With All Wheel Drive (XWD) Code = XF	2
1A	Bump stop Not as separate spare part.	Bump stop	Not as separate spare part.
2	12778092 Rear spring 2008-2011 \| With All Wheel Drive (XWD) Standard chassis Sport chassis \| CODE=FA	Rear spring	2008-2011 With All Wheel Drive (XWD) Standard chassis Sport chassis CODE=FA	2
2	12778093 Rear spring 2008-2011 \| With All Wheel Drive (XWD) Standard chassis Sport chassis \| CODE=FB	Rear spring	2008-2011 With All Wheel Drive (XWD) Standard chassis Sport chassis CODE=FB	2
2	12780361 Rear spring 2008-2011 \| With All Wheel Drive (XWD) With lowered sport chassis \| CODE=FE	Rear spring	2008-2011 With All Wheel Drive (XWD) With lowered sport chassis CODE=FE	2
2	12783539 Rear spring 2008-2011 \| With All Wheel Drive (XWD) With lowered sport chassis \| CODE=FG	Rear spring	2008-2011 With All Wheel Drive (XWD) With lowered sport chassis CODE=FG	2
2	12778096 Rear spring 2008-2011 \| With All Wheel Drive (XWD) Standard chassis Sport chassis \| CODE=FC	Rear spring	2008-2011 With All Wheel Drive (XWD) Standard chassis Sport chassis CODE=FC	2
2	12778097 Rear spring 2008-2011 \| With All Wheel Drive (XWD) Standard chassis Sport chassis \| CODE=FD	Rear spring	2008-2011 With All Wheel Drive (XWD) Standard chassis Sport chassis CODE=FD	2
2	12780362 Rear spring 2008-2011 \| With All Wheel Drive (XWD) With lowered sport chassis \| CODE=FF	Rear spring	2008-2011 With All Wheel Drive (XWD) With lowered sport chassis CODE=FF	2
2	12783540 Rear spring 2010-2011 \| With All Wheel Drive (XWD) With lowered sport chassis \| CODE=FH	Rear spring	2010-2011 With All Wheel Drive (XWD) With lowered sport chassis CODE=FH	2
2	12783935 Rear spring 2010-2011 \| With All Wheel Drive (XWD) Increased ride 9-3X \| CODE = FI	Rear spring	2010-2011 With All Wheel Drive (XWD) Increased ride 9-3X CODE = FI	2
2	12783936 Rear spring 2010-2011 \| With All Wheel Drive (XWD) Increased ride 9-3X \| CODE = FJ	Rear spring	2010-2011 With All Wheel Drive (XWD) Increased ride 9-3X CODE = FJ	2
3	12782981 Spring support 2008-2011 \| With All Wheel Drive (XWD)	Spring support	2008-2011 With All Wheel Drive (XWD)	2
4	90538496 Spring support	Spring support		2
5	12778198 Bearing bushing 2008-2011	Bearing bushing	2008-2011	2
6	11900029 Hexagon screw	Hexagon screw		6
7	11096832 Hexagon screw M14	Hexagon screw	M14	2
8	11900441 Nut	Nut		2
9	12842676 Washer	Washer		2

Pos.

Part No.

Qty

12848630

Rear shock absorber assy

2010-2011 | B284 | ''Sport'' With All Wheel Drive (XWD) | CODE=XC

12848631

Rear shock absorber assy

2010-2011 | B284 | ''Sport'' With All Wheel Drive (XWD) | CODE=XD

12848628

Rear shock absorber assy

2010-2011 | With Mounting details With All Wheel Drive (XWD) | CODE=XA

12848629

Rear shock absorber assy

2010-2011 | B284 | With Mounting details With All Wheel Drive (XWD) | CODE=XB

12848626

Rear shock absorber assy

2010-2011 | B207 | With All Wheel Drive (XWD) | Code = XE

12848627

Rear shock absorber assy

2010-2011 | B207 | With All Wheel Drive (XWD) | Code = XF

Bump stop

Not as separate spare part.

12778092

Rear spring

2008-2011 | With All Wheel Drive (XWD) Standard chassis Sport chassis | CODE=FA

12778093

Rear spring

2008-2011 | With All Wheel Drive (XWD) Standard chassis Sport chassis | CODE=FB

12780361

Rear spring

2008-2011 | With All Wheel Drive (XWD) With lowered sport chassis | CODE=FE

12783539

Rear spring

2008-2011 | With All Wheel Drive (XWD) With lowered sport chassis | CODE=FG

12778096

Rear spring

2008-2011 | With All Wheel Drive (XWD) Standard chassis Sport chassis | CODE=FC

12778097

Rear spring

2008-2011 | With All Wheel Drive (XWD) Standard chassis Sport chassis | CODE=FD

12780362

Rear spring

2008-2011 | With All Wheel Drive (XWD) With lowered sport chassis | CODE=FF

12783540

Rear spring

2010-2011 | With All Wheel Drive (XWD) With lowered sport chassis | CODE=FH

12783935

Rear spring

2010-2011 | With All Wheel Drive (XWD) Increased ride 9-3X | CODE = FI

12783936

Rear spring

2010-2011 | With All Wheel Drive (XWD) Increased ride 9-3X | CODE = FJ

12782981

Spring support

2008-2011 | With All Wheel Drive (XWD)

90538496

Spring support

12778198

Bearing bushing

2008-2011

11900029

Hexagon screw

11096832

Hexagon screw

M14

11900441

Nut

12842676

Washer
