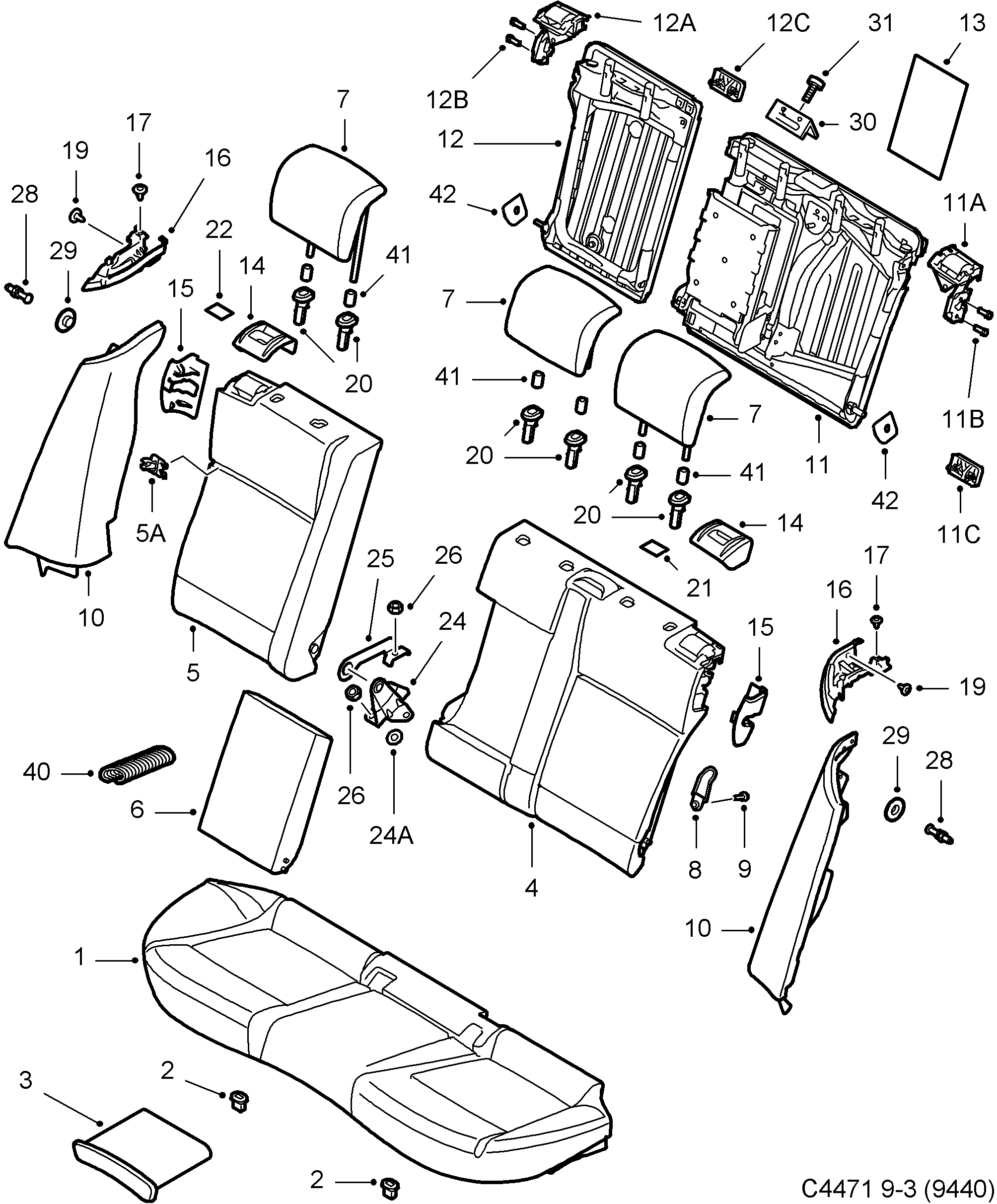

3220: Car body, internal - Other interior equipment - Rear seat
(2006 - 2011 | 5D) | For 9-3 (9440) (2011)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12794464 Seat cushion | 1 | |
| 1 | 12778639 Seat cushion 2008-2011 | Cup holder | 1 | |
| 2 | 24437789 Anchorage | 2 | |
| 3 | 12790515 Holder | 1 | |
| 4 | 12755518 Backrest cushion LH | 1 | |
| 5 | 12755519 Backrest cushion RH | 1 | |
| 5A | 12765672 Attachment | 7 | |
| 6 | 12755336 Arm rest Grey | TRIM COLOUR K01, K30 | 1 | |
| 6 | 12755338 Arm rest 2006-2011 | Grey | TRIM COLOUR K02, K03, K05, K09 | 1 | |
| 6 | 12755337 Arm rest 2006-2011 | Black | Trim colour K00 | 1 | |
| 6 | 12763779 Arm rest 2008-2011 | Black | Trim Colour B02, B05, B09, B10, B38, B43, B53 | 1 | |
| 6 | 12755335 Arm rest Beige | TRIM COLOUR L01, L30 | 1 | |
| 6 | 12755339 Arm rest Beige | TRIM COLOUR L02, L03, L05, L09, L33, L53 | 1 | |
| 7 | 12790490 Head restraint LH | 1 | |
| 7 | 12790492 Head restraint Centre | 1 | |
| 7 | 12790501 Head restraint RH | 1 | |
| 8 | 12755556 Hook | 3 | |
| 9 | 12755557 Screw | 3 | |
| 10 | 12758710 Foam plastic cushion LH | 1 | |
| 10 | 12758711 Foam plastic cushion RH | 1 | |
| 10 | 12767961 Backrest cushion 2006-2011 | Black | LH K43 | 1 | |
| 10 | 12767961 Backrest cushion 2010-2011 | Black | LH B53 | 1 | |
| 10 | 12767963 Backrest cushion 2006-2011 | Black | RH K43 | 1 | |
| 10 | 12767963 Backrest cushion 2010-2011 | Black | RH B53 | 1 | |
| 10 | 12755487 Foam plastic cushion Grey Beige | LH K30 | 1 | |
| 10 | 12755496 Foam plastic cushion Grey Beige | RH K30 | 1 | |
| 10 | 12755489 Foam plastic cushion 2006-2011 | Grey | LH K02, K03 | 1 | |
| 10 | 12755498 Foam plastic cushion 2006-2011 | Grey | RH K02, K03 | 1 | |
| 10 | 12755491 Foam plastic cushion 2006-2011 | Grey | LH K05, K09 | 1 | |
| 10 | 12755500 Foam plastic cushion Grey | RH K05, K09 | 1 | |
| 10 | 12755485 Foam plastic cushion 2006-2011 | Black | LH K00 | 1 | |
| 10 | 12755494 Foam plastic cushion 2006-2011 | Black | RH K00 | 1 | |
| 10 | 12755486 Foam plastic cushion Beige | LH L30 | 1 | |
| 10 | 12755495 Foam plastic cushion Beige | RH L30 | 1 | |
| 10 | 12755488 Foam plastic cushion 2009-2011 | Beige | LH TRIM COLOUR L02 L05 L38 L43 L53 | 1 | |
| 10 | 12755497 Foam plastic cushion 2009-2011 | Beige | RH TRIM COLOUR L02 L05 L38 L43 L53 | 1 | |
| 10 | 12755490 Foam plastic cushion -2011 | Beige | LH Trim colour L05 | 1 | |
| 10 | 12755490 Foam plastic cushion -2011 | Beige Leather ''Sport'' | LH Trim colour L09 | 1 | |
| 10 | 12755499 Foam plastic cushion -2011 | Beige Leather ''Sport'' | RH Trim colour L05 | 1 | |
| 10 | 12755499 Foam plastic cushion -2011 | Beige Leather ''Sport'' | RH Trim colour L09 | 1 | |
| 11 | 12845843 Backrest 2011-2011 | Integrated child seat | LH | 1 | |
| 11A | 13198055 Lock LH | 1 | |
| 11B | 13197525 Screw | 2 | |
| 11C | 24466784 Spacer | 1 | |
| 12 | 12845845 Backrest 2011-2011 | Integrated child seat | RH | 1 | |
| 12A | 13198059 Lock RH | 1 | |
| 12B | 13197525 Screw | 2 | |
| 12C | 24466784 Spacer | 1 | |
| 13 | 12843753 Flap 2008-2011 | 1 | |
| 14 | 12775817 Cover 2007-2011 | Beige | LH | 1 | |
| 14 | 12775816 Cover 2007-2011 | Beige | RH | 1 | |
| 14 | 12784540 Cover 2008-2011 | Grey | LH | 1 | |
| 14 | 12784541 Cover 2008-2011 | Grey | RH | 1 | |
| 15 | 12755510 12778722 Cover Beige | LH | 1 | |
| 15 | 12784967 Cover 2009-2011 | Beige | LH | 1 | |
| 15 | 12755512 12778723 Cover Beige | RH | 1 | |
| 15 | 12784968 Cover 2009-2011 | Beige | RH | 1 | |
| 15 | 13246785 Plate 2007-2011 | Grey | LH | 1 | |
| 15 | 13246787 Plate 2007-2011 | Grey | RH | 1 | |
| 16 | 12796050 Guide LH | 1 | |
| 16 | 12796051 Guide RH | 1 | |
| 17 | 92152036 Rivet | 6 | |
| 19 | 90138810 Rivet | 2 | |
| 19 | 4063897 Rivet | 2 | |
| 20 | 24453402 Sleeve | 6 | |
| 21 | 12759109 Label | 2 | |
| 24 | 24443081 Joint | 1 | |
| 24A | 12855192 Washer | 3 | |
| 25 | 12755520 Bracket | 1 | |
| 26 | 11900430 Nut | 4 | |
| 28 | 12759564 Striker | 2 | |
| 29 | 12755853 Cover | 2 | |
| 30 | 24451677 Bracket | 1 | |
| 31 | 92152354 Screw M8 | 2 | |
| 40 | 12800399 Mounting kit | 1 | |
| 40 | 12800401 Mounting kit 2006-2011 | Side bolster | X | |
| 41 | 12804555 Spacer | X | |
| 42 | 12799656 Plate Hinge Outer | 2 |
