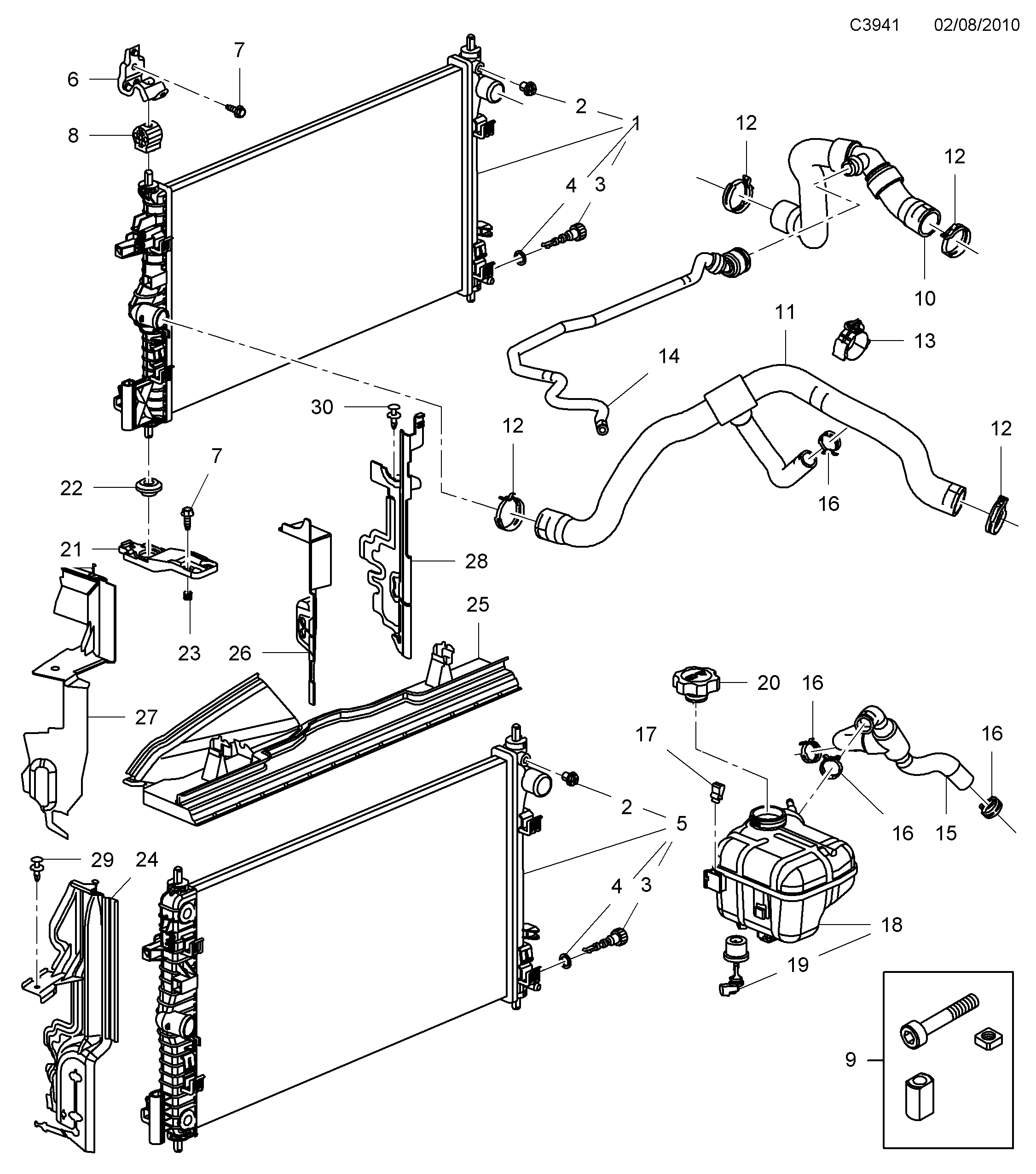

5010: Engine - Cooling system - Radiator - Expansion tank
(2010 - 2011 | A20DTH, A20DTR, A20NHT) | For 9-5 (650) (2010)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13241728 Radiator 2010-2010 | A20NHT | 1 | |
| 2 | 93188651 Drain screw | 1 | |
| 3 | 13241754 Drain cock | 1 | |
| 4 | 13280295 Washer | 1 | |
| 5 | 13241729 Radiator 2010-2010 | A20NHT | 1 | |
| 2 | 93188651 Drain screw | 1 | |
| 3 | 13241754 Drain cock | 1 | |
| 4 | 13280295 Washer | 1 | |
| 6 | 13239137 Support bracket 2010-2010 | A20NHT | Upper | 2 | |
| 7 | 11588723 Screw M8X25 | 4 | |
| 8 | 13306606 Buffer Upper | 2 | |
| 9 | 13282869 Bolt Kit | 1 | |
| 10 | 13220131 Hose 2010-2010 | A20NHT | Inlet | 1 | |
| 11 | 13220126 Hose 2010-2010 | A20NHT | Outlet | 1 | |
| 12 | 13162312 Hose clamp | 4 | |
| 13 | 9202590 Clip Outlet Hose | 1 | |
| 14 | 13220152 Hose 2010-2010 | Degassing | 1 | |
| 15 | 13220146 Hose 2010-2010 | A20NHT | Header tank to engine | 1 | |
| 16 | 13283239 Hose clamp | 4 | |
| 16 | 90572594 Hose clamp Optional with 13283239 | 4 | |
| 17 | 13284504 Clamp | 1 | |
| 18 | 13220123 Expansion tank | 1 | |
| 19 | 13271444 Control unit | 1 | |
| 20 | 13502353 Cap | 1 | |
| 21 | 13337769 Bracket Lower | 2 | |
| 22 | 13304695 Buffer Lower | 2 | |
| 23 | 11087031 Thread insert Lower | 2 | |
| 29 | 11589290 Expanding rivet | X | |
| 30 | 11589290 Expanding rivet | X |
