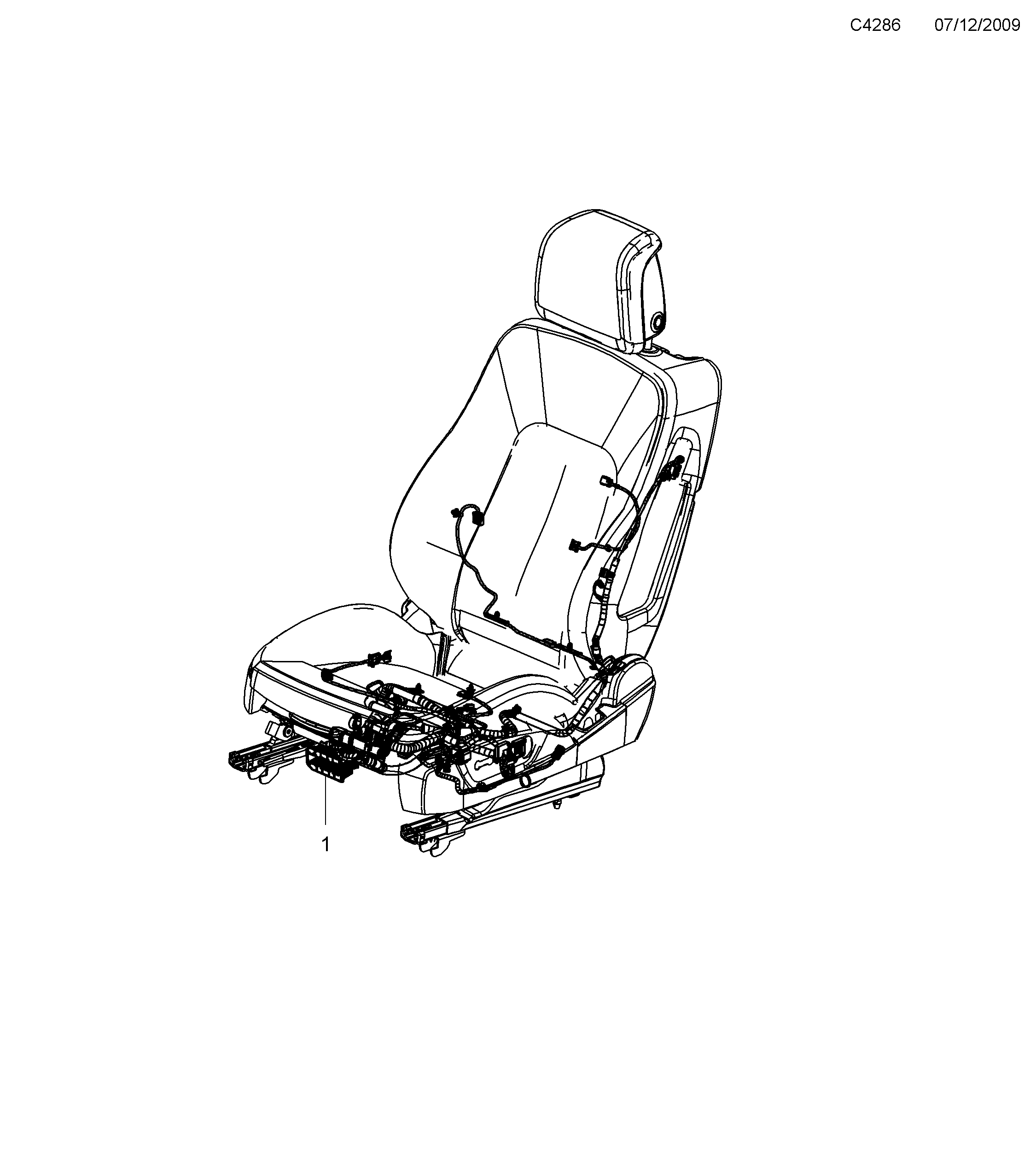

4750: Electrical, general - Wiring and fuses - Front seat

(2010 - 2011) | For 9-5 (650) (2010)

Pos.	Part No.	Description	Usage	Qty
1	13287085 Cable harness LHD \| For cars without electrically heated seats Comfort seat Manual, 6-way \| LH	Cable harness	LHD For cars without electrically heated seats Comfort seat Manual, 6-way LH	1
1	13287087 Cable harness LHD \| For cars with electrically heated seats Comfort seat Manual, 6-way \| LH	Cable harness	LHD For cars with electrically heated seats Comfort seat Manual, 6-way LH	1
1	13290378 Cable harness LHD \| For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package \| LH	Cable harness	LHD For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package LH	1
1	13288390 Cable harness LHD \| For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package \| LH	Cable harness	LHD For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package LH	1
1	13287093 Cable harness LHD \| For cars with electrically heated seats With memory function. Electric, multi directional Without Rear seat entertainment package \| LH	Cable harness	LHD For cars with electrically heated seats With memory function. Electric, multi directional Without Rear seat entertainment package LH	1
1	13287095 Cable harness LHD \| Without memory function For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package \| LH	Cable harness	LHD Without memory function For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package LH	1
1	12848557 Cable harness LHD \| For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan \| LH	Cable harness	LHD For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan LH	1
1	13317072 Cable harness LHD \| For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Seat fan \| LH	Cable harness	LHD For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Seat fan LH	1
1	13317083 Cable harness LHD \| For cars without electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support \| RH	Cable harness	LHD For cars without electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support RH	1
1	12848550 Cable harness LHD \| For cars with electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support \| RH	Cable harness	LHD For cars with electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support RH	1
1	13287109 Cable harness LHD \| For cars without electrically heated seats Manual, 6-way Lumbar support \| RH	Cable harness	LHD For cars without electrically heated seats Manual, 6-way Lumbar support RH	1
1	13287111 Cable harness LHD \| For cars with electrically heated seats Manual, 6-way \| RH	Cable harness	LHD For cars with electrically heated seats Manual, 6-way RH	1
1	12848548 Cable harness LHD \| For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan \| RH	Cable harness	LHD For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan RH	1
1	13288392 Cable harness LHD \| Electric, multi directional Seat fan Without Rear seat entertainment package PPS Passenger Presence System \| RH	Cable harness	LHD Electric, multi directional Seat fan Without Rear seat entertainment package PPS Passenger Presence System RH	1
1	12848547 Cable harness LHD \| Electric, multi directional Rear seat entertainment package and seat fan Without PPS Passenger Presence System \| RH	Cable harness	LHD Electric, multi directional Rear seat entertainment package and seat fan Without PPS Passenger Presence System RH	1
1	13288391 Cable harness LHD \| For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan PPS Passenger Presence System \| RH	Cable harness	LHD For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan PPS Passenger Presence System RH	1
1	13290381 12826972 Cable harness 2010-2010, LHD \| For cars with electrically heated seats Electric, multi directional With PPS Passenger Presence System Without Rear seat entertainment package and seat fan \| RH	Cable harness	2010-2010, LHD For cars with electrically heated seats Electric, multi directional With PPS Passenger Presence System Without Rear seat entertainment package and seat fan RH	1
1	13349954 12826972 Cable harness 2010-2010, LHD \| For cars with electrically heated seats Electric, multi directional With PPS Passenger Presence System Without Rear seat entertainment package and seat fan \| RH	Cable harness	2010-2010, LHD For cars with electrically heated seats Electric, multi directional With PPS Passenger Presence System Without Rear seat entertainment package and seat fan RH	1
1	12848552 Cable harness LHD \| For cars with electrically heated seats Electric, multi directional \| RH	Cable harness	LHD For cars with electrically heated seats Electric, multi directional RH	1
1	12848555 12826969 Cable harness 2010-2010, LHD \| For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan \| RH	Cable harness	2010-2010, LHD For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan RH	1
1	13317079 12826971 Cable harness 2010-2010, LHD \| For cars with electrically heated seats Electric, multi directional PPS Passenger presence system and seat fan Without Rear seat entertainment package \| RH	Cable harness	2010-2010, LHD For cars with electrically heated seats Electric, multi directional PPS Passenger presence system and seat fan Without Rear seat entertainment package RH	1
1	13317078 12826970 Cable harness 2010-2010, LHD \| For cars with electrically heated seats Electric, multi directional PPS Passenger Presence System Rear seat entertainment package and seat fan \| RH	Cable harness	2010-2010, LHD For cars with electrically heated seats Electric, multi directional PPS Passenger Presence System Rear seat entertainment package and seat fan RH	1
1	13317084 Cable harness RHD \| For cars without electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support \| LH	Cable harness	RHD For cars without electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support LH	1
1	12848549 Cable harness RHD \| For cars with electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support \| LH	Cable harness	RHD For cars with electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support LH	1
1	13287110 Cable harness RHD \| For cars without electrically heated seats Manual, 6-way Lumbar support \| LH	Cable harness	RHD For cars without electrically heated seats Manual, 6-way Lumbar support LH	1
1	13287112 Cable harness RHD \| For cars with electrically heated seats Manual, 6-way Lumbar support \| LH	Cable harness	RHD For cars with electrically heated seats Manual, 6-way Lumbar support LH	1
1	12848551 Cable harness RHD \| For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan \| LH	Cable harness	RHD For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan LH	1
1	12848553 Cable harness RHD \| For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan \| LH	Cable harness	RHD For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan LH	1
1	13317082 Cable harness RHD \| For cars with electrically heated seats Electric, multi directional Seat fan Without Rear seat entertainment package \| LH	Cable harness	RHD For cars with electrically heated seats Electric, multi directional Seat fan Without Rear seat entertainment package LH	1
1	12848554 Cable harness RHD \| For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan \| LH	Cable harness	RHD For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan LH	1
1	13317081 Cable harness RHD \| LH	Cable harness	RHD LH	1
1	13287086 Cable harness RHD \| For cars without electrically heated seats Manual, 6-way \| RH	Cable harness	RHD For cars without electrically heated seats Manual, 6-way RH	1
1	13287088 Cable harness RHD \| For cars with electrically heated seats Manual, 6-way \| RH	Cable harness	RHD For cars with electrically heated seats Manual, 6-way RH	1
1	13317076 Cable harness RHD \| For cars with electrically heated seats Without memory function Electric, multi directional Without Rear seat entertainment package and seat fan \| RH	Cable harness	RHD For cars with electrically heated seats Without memory function Electric, multi directional Without Rear seat entertainment package and seat fan RH	1
1	13317085 Cable harness RHD \| For cars without electrically heated seats Without memory function Electric, multi directional Without Rear seat entertainment package and seat fan \| RH	Cable harness	RHD For cars without electrically heated seats Without memory function Electric, multi directional Without Rear seat entertainment package and seat fan RH	1
1	13287094 Cable harness RHD \| For cars with electrically heated seats With memory function. Electric, multi directional Without Rear seat entertainment package and seat fan \| RH	Cable harness	RHD For cars with electrically heated seats With memory function. Electric, multi directional Without Rear seat entertainment package and seat fan RH	1
1	13287096 Cable harness RHD \| With memory function. Electric, multi directional Seat fan Without Rear seat entertainment package \| RH	Cable harness	RHD With memory function. Electric, multi directional Seat fan Without Rear seat entertainment package RH	1
1	12848556 Cable harness RHD \| For cars with electrically heated seats With memory function. Electric, multi directional Rear seat entertainment package Without Seat fan \| RH	Cable harness	RHD For cars with electrically heated seats With memory function. Electric, multi directional Rear seat entertainment package Without Seat fan RH	1
1	13317073 Cable harness RHD \| For cars with electrically heated seats With memory function. Electric, multi directional Rear seat entertainment package and seat fan \| RH	Cable harness	RHD For cars with electrically heated seats With memory function. Electric, multi directional Rear seat entertainment package and seat fan RH	1

Pos.

Part No.

Qty

13287085

Cable harness

LHD | For cars without electrically heated seats Comfort seat Manual, 6-way | LH

13287087

Cable harness

LHD | For cars with electrically heated seats Comfort seat Manual, 6-way | LH

13290378

Cable harness

LHD | For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package | LH

13288390

Cable harness

LHD | For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package | LH

13287093

Cable harness

LHD | For cars with electrically heated seats With memory function. Electric, multi directional Without Rear seat entertainment package | LH

13287095

Cable harness

LHD | Without memory function For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package | LH

12848557

Cable harness

LHD | For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan | LH

13317072

Cable harness

LHD | For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Seat fan | LH

13317083

Cable harness

LHD | For cars without electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support | RH

12848550

Cable harness

LHD | For cars with electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support | RH

13287109

Cable harness

LHD | For cars without electrically heated seats Manual, 6-way Lumbar support | RH

13287111

Cable harness

LHD | For cars with electrically heated seats Manual, 6-way | RH

12848548

Cable harness

LHD | For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan | RH

13288392

Cable harness

LHD | Electric, multi directional Seat fan Without Rear seat entertainment package PPS Passenger Presence System | RH

12848547

Cable harness

LHD | Electric, multi directional Rear seat entertainment package and seat fan Without PPS Passenger Presence System | RH

13288391

Cable harness

LHD | For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan PPS Passenger Presence System | RH

13290381

12826972

Cable harness

2010-2010, LHD | For cars with electrically heated seats Electric, multi directional With PPS Passenger Presence System Without Rear seat entertainment package and seat fan | RH

13349954

12826972

Cable harness

2010-2010, LHD | For cars with electrically heated seats Electric, multi directional With PPS Passenger Presence System Without Rear seat entertainment package and seat fan | RH

12848552

Cable harness

LHD | For cars with electrically heated seats Electric, multi directional | RH

12848555

12826969

Cable harness

2010-2010, LHD | For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan | RH

13317079

12826971

Cable harness

2010-2010, LHD | For cars with electrically heated seats Electric, multi directional PPS Passenger presence system and seat fan Without Rear seat entertainment package | RH

13317078

12826970

Cable harness

2010-2010, LHD | For cars with electrically heated seats Electric, multi directional PPS Passenger Presence System Rear seat entertainment package and seat fan | RH

13317084

Cable harness

RHD | For cars without electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support | LH

12848549

Cable harness

RHD | For cars with electrically heated seats Manual, 4-way Manual, 6-way Without Lumbar support | LH

13287110

Cable harness

RHD | For cars without electrically heated seats Manual, 6-way Lumbar support | LH

13287112

Cable harness

RHD | For cars with electrically heated seats Manual, 6-way Lumbar support | LH

12848551

Cable harness

RHD | For cars without electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan | LH

12848553

Cable harness

RHD | For cars with electrically heated seats Electric, multi directional Without Rear seat entertainment package and seat fan | LH

13317082

Cable harness

RHD | For cars with electrically heated seats Electric, multi directional Seat fan Without Rear seat entertainment package | LH

12848554

Cable harness

RHD | For cars with electrically heated seats Electric, multi directional Rear seat entertainment package Without Seat fan | LH

13317081

Cable harness

RHD | LH

13287086

Cable harness

RHD | For cars without electrically heated seats Manual, 6-way | RH

13287088

Cable harness

RHD | For cars with electrically heated seats Manual, 6-way | RH

13317076

Cable harness

RHD | For cars with electrically heated seats Without memory function Electric, multi directional Without Rear seat entertainment package and seat fan | RH

13317085

Cable harness

RHD | For cars without electrically heated seats Without memory function Electric, multi directional Without Rear seat entertainment package and seat fan | RH

13287094

Cable harness

RHD | For cars with electrically heated seats With memory function. Electric, multi directional Without Rear seat entertainment package and seat fan | RH

13287096

Cable harness

RHD | With memory function. Electric, multi directional Seat fan Without Rear seat entertainment package | RH

12848556

Cable harness

RHD | For cars with electrically heated seats With memory function. Electric, multi directional Rear seat entertainment package Without Seat fan | RH

13317073

Cable harness

RHD | For cars with electrically heated seats With memory function. Electric, multi directional Rear seat entertainment package and seat fan | RH
