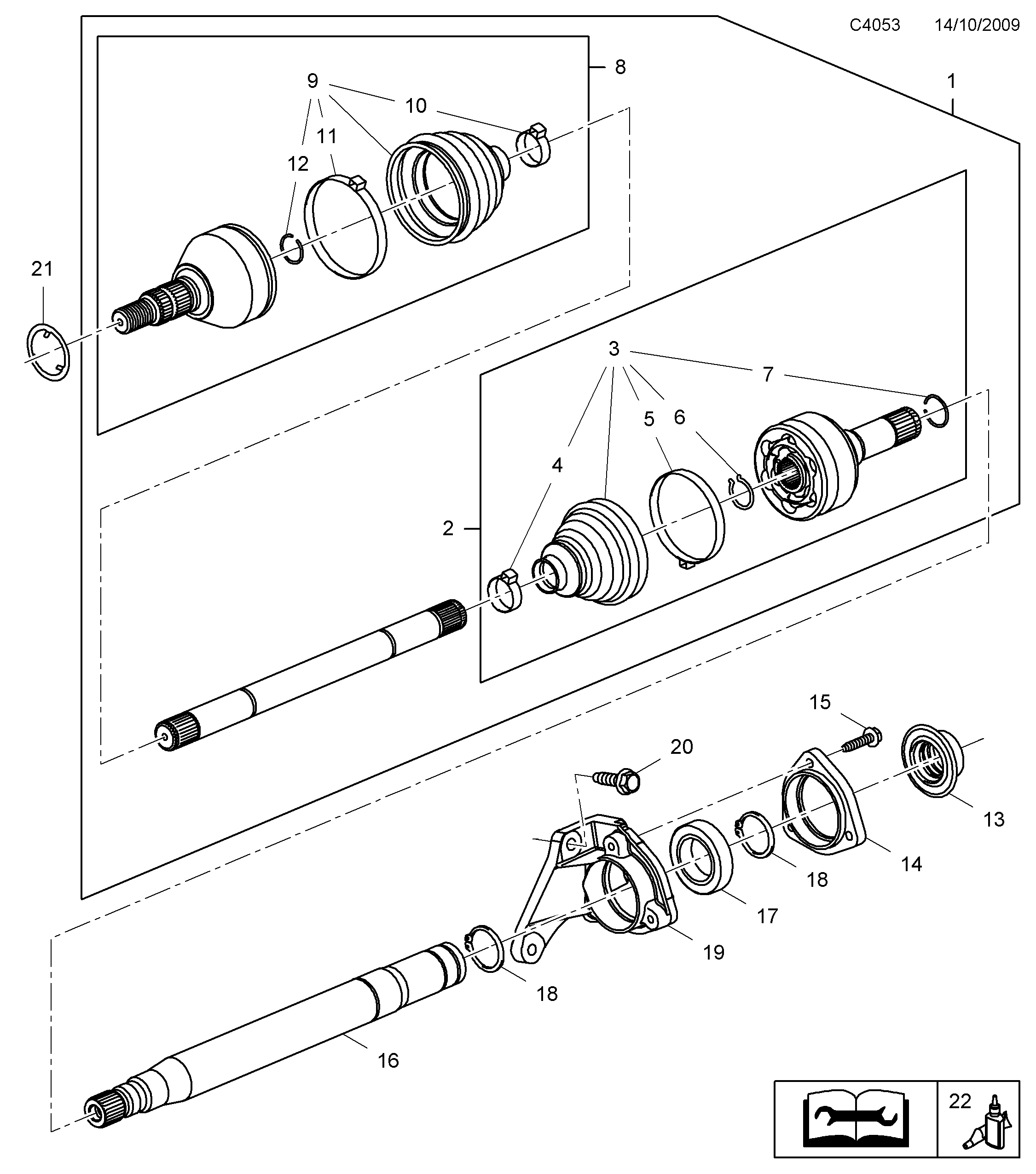

5025: Power transmission - Drive shaft - Outer universal joint - Front
(2010 - 2011 | A20DTH, A20DTR) | For 9-5 (650) (2010)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13219092 Drive shaft A20DTH | 2 | |
| 1 | 13219092 Drive shaft A20DTR | With All Wheel Drive (XWD) | 2 | |
| 2 | 13296195 Joint, inner | 2 | |
| 3 | 13291745 Bellows kit Inner | 1 | |
| 4 | 13291770 Clamping ring | 1 | |
| 5 | 93173416 Clamp 33.5MM | 1 | |
| 6 | 13296471 Retaining ring | 1 | |
| 7 | 90223082 Lock ring | 1 | |
| 8 | 13296187 Joint, outer | 2 | |
| 9 | 13291737 Bellows kit Outer | 1 | |
| 10 | 93173416 Clamp 35.5MM | 1 | |
| 11 | 93173417 Clamp 95.5MM | 1 | |
| 12 | 93173412 Lock ring | 1 | |
| 13 | 9186677 Sealing ring Less All Wheel Drive (XWD) | 1 | |
| 14 | 9186608 Flange | 1 | |
| 15 | 11588725 Hexagon screw M8X35 | 3 | |
| 16 | 13233952 Countershaft | 1 | |
| 17 | 24460144 Ball bearing | 1 | |
| 18 | 11102301 Ring | 2 | |
| 19 | 13219107 Bracket | 1 | |
| 20 | 11588741 Hexagon screw M10X45 | 3 | |
| 21 | 20825083 Washer 0.521MM | 2 | |
| 21 | 11611232 Washer 0.508MM | 2 | |
| 22 | 13329237 Grease 100G | X | |
| 22 | 13329238 Grease 130G | X | |
| 22 | 13329239 Grease 150G | X |
