Question 1

Où trouver le schéma de Drive shaft assy pour Saab 9-5 (650) ?

Accepted Answer

Accédez au schéma éclaté officiel et à la liste complète des pièces pour la section Drive shaft assy de votre Saab 9-5 (650) 2010. Notre outil interactif permet de visualiser chaque composant en détail et d'identifier instantanément sa référence Saab d'origine pour un entretien certifié.

Question 2

Les numéros de pièces Saab sont-ils à jour ?

Accepted Answer

Oui, notre explorateur inclut l'intégralité des références d'origine Saab (OEM) ainsi que les codes de remplacement NLS-USE (No Longer Supplied - Use). Cela vous permet de suivre l'évolution des pièces officiellement remplacées et d'assurer une compatibilité totale avec les stocks actuels de pièces de rechange.

Question 3

Quelles sont les motorisations Saab compatibles avec la section 9400 ?

Accepted Answer

La section 9400 (Drive shaft assy) est spécifiquement documentée pour être compatible avec les motorisations indiquées dans la liste technique. Vous pouvez vérifier la compatibilité exacte en utilisant notre filtre de recherche par numéro de châssis (VIN).

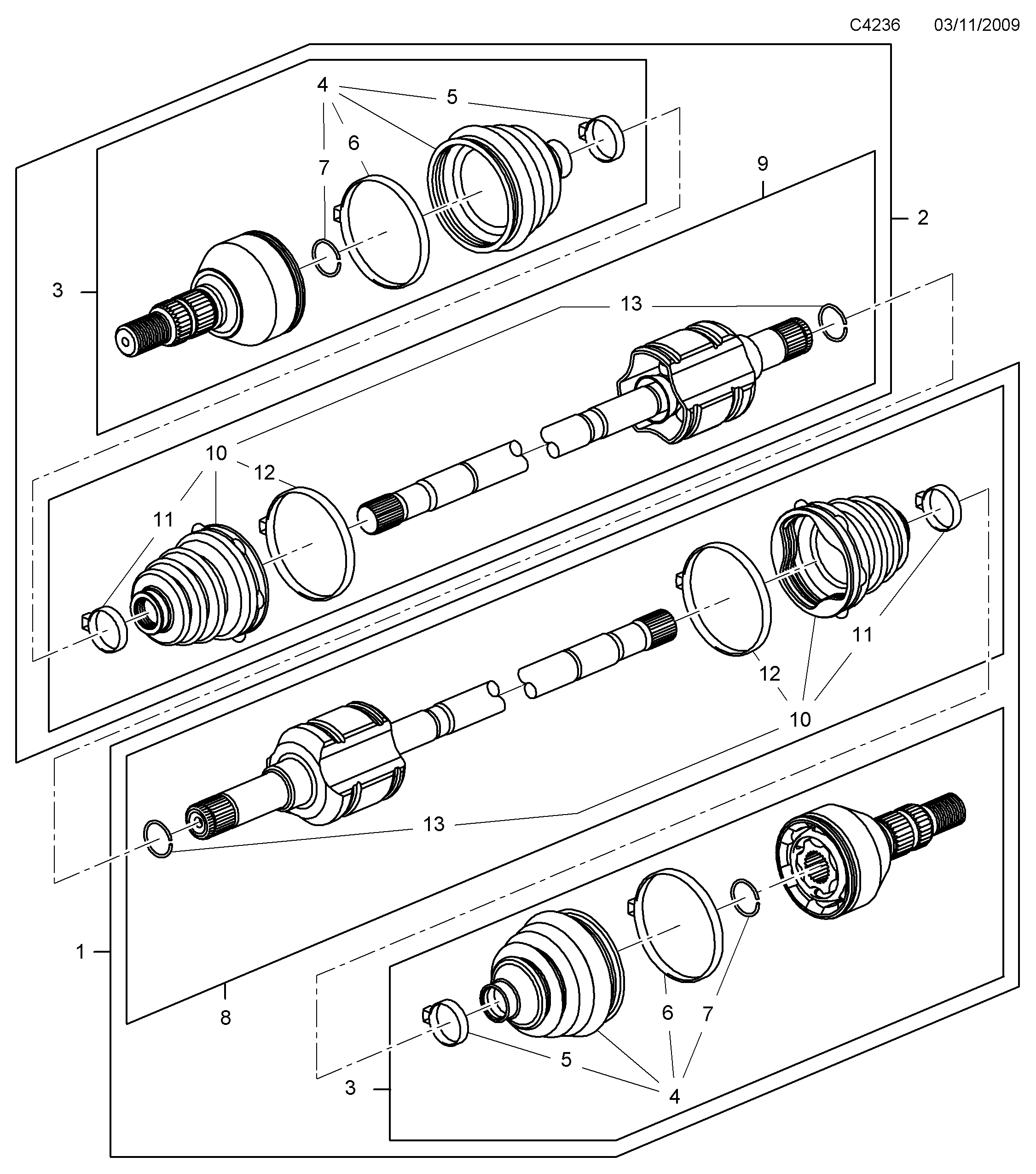

Pos.	Part No.	Description	Usage	Qty
1	13228224 Drive shaft Less ELSD \| RH	Drive shaft	Less ELSD RH	1
2	13228223 Drive shaft Less ELSD \| LH	Drive shaft	Less ELSD LH	1
3	13296182 Joint, outer Use in conjunction with 13329237 Less ELSD	Joint, outer	Use in conjunction with 13329237 Less ELSD	2
4	13291733 Bellows kit Use in conjunction with 13329237 Less ELSD	Bellows kit	Use in conjunction with 13329237 Less ELSD	2
5	93182569 Clamp Less ELSD \| 29.5MM	Clamp	Less ELSD 29.5MM	2
6	93182570 Clamp Less ELSD \| 84.0MM	Clamp	Less ELSD 84.0MM	2
7	93176748 Lock ring Less ELSD	Lock ring	Less ELSD	2
8	13311880 Halfshaft with inner joint Use in conjunction with 13329240 Less ELSD \| RH	Halfshaft with inner joint	Use in conjunction with 13329240 Less ELSD RH	1
9	13311879 Halfshaft with inner joint Use in conjunction with 13329240 Less ELSD \| LH	Halfshaft with inner joint	Use in conjunction with 13329240 Less ELSD LH	1
10	13311877 Bellows kit Less ELSD	Bellows kit	Less ELSD	2
11	93176527 Clamp Less ELSD \| 33.1MM	Clamp	Less ELSD 33.1MM	2
12	93176753 Clamp Less ELSD \| 84.5MM	Clamp	Less ELSD 84.5MM	2
13	90121202 Retaining ring Less ELSD	Retaining ring	Less ELSD	2
1	13267108 Drive shaft With ELSD \| RH	Drive shaft	With ELSD RH	1
2	13228231 Drive shaft With ELSD \| LH	Drive shaft	With ELSD LH	1
3	13296184 Joint, outer With ELSD	Joint, outer	With ELSD	2
4	13291734 Bellows kit With ELSD	Bellows kit	With ELSD	2
5	93170250 Clamp With ELSD \| 30.5MM	Clamp	With ELSD 30.5MM	2
6	13291762 Clamp With ELSD \| 87.0MM	Clamp	With ELSD 87.0MM	2
7	9201827 Lock ring With ELSD	Lock ring	With ELSD	2
8	13311882 Halfshaft with inner joint With ELSD \| RH	Halfshaft with inner joint	With ELSD RH	2
9	13311881 Halfshaft with inner joint With ELSD \| LH	Halfshaft with inner joint	With ELSD LH	2
10	13311878 Bellows kit With ELSD	Bellows kit	With ELSD	2
11	93170395 Clamp With ELSD \| 34.1MM	Clamp	With ELSD 34.1MM	2
12	93170396 Clamp With ELSD \| 88.5MM	Clamp	With ELSD 88.5MM	2
13	90121202 Retaining ring With ELSD	Retaining ring	With ELSD	2

Pos.	Part No.	Description	Usage	Qty
1	13228224 Drive shaft Less ELSD \| RH	Drive shaft	Less ELSD RH	1
2	13228223 Drive shaft Less ELSD \| LH	Drive shaft	Less ELSD LH	1
3	13296182 Joint, outer Use in conjunction with 13329237 Less ELSD	Joint, outer	Use in conjunction with 13329237 Less ELSD	2
4	13291733 Bellows kit Use in conjunction with 13329237 Less ELSD	Bellows kit	Use in conjunction with 13329237 Less ELSD	2
5	93182569 Clamp Less ELSD \| 29.5MM	Clamp	Less ELSD 29.5MM	2
6	93182570 Clamp Less ELSD \| 84.0MM	Clamp	Less ELSD 84.0MM	2
7	93176748 Lock ring Less ELSD	Lock ring	Less ELSD	2
8	13311880 Halfshaft with inner joint Use in conjunction with 13329240 Less ELSD \| RH	Halfshaft with inner joint	Use in conjunction with 13329240 Less ELSD RH	1
9	13311879 Halfshaft with inner joint Use in conjunction with 13329240 Less ELSD \| LH	Halfshaft with inner joint	Use in conjunction with 13329240 Less ELSD LH	1
10	13311877 Bellows kit Less ELSD	Bellows kit	Less ELSD	2
11	93176527 Clamp Less ELSD \| 33.1MM	Clamp	Less ELSD 33.1MM	2
12	93176753 Clamp Less ELSD \| 84.5MM	Clamp	Less ELSD 84.5MM	2
13	90121202 Retaining ring Less ELSD	Retaining ring	Less ELSD	2
1	13267108 Drive shaft With ELSD \| RH	Drive shaft	With ELSD RH	1
2	13228231 Drive shaft With ELSD \| LH	Drive shaft	With ELSD LH	1
3	13296184 Joint, outer With ELSD	Joint, outer	With ELSD	2
4	13291734 Bellows kit With ELSD	Bellows kit	With ELSD	2
5	93170250 Clamp With ELSD \| 30.5MM	Clamp	With ELSD 30.5MM	2
6	13291762 Clamp With ELSD \| 87.0MM	Clamp	With ELSD 87.0MM	2
7	9201827 Lock ring With ELSD	Lock ring	With ELSD	2
8	13311882 Halfshaft with inner joint With ELSD \| RH	Halfshaft with inner joint	With ELSD RH	2
9	13311881 Halfshaft with inner joint With ELSD \| LH	Halfshaft with inner joint	With ELSD LH	2
10	13311878 Bellows kit With ELSD	Bellows kit	With ELSD	2
11	93170395 Clamp With ELSD \| 34.1MM	Clamp	With ELSD 34.1MM	2
12	93170396 Clamp With ELSD \| 88.5MM	Clamp	With ELSD 88.5MM	2
13	90121202 Retaining ring With ELSD	Retaining ring	With ELSD	2

9400: Power transmission - Drive shaft assy - Rear
