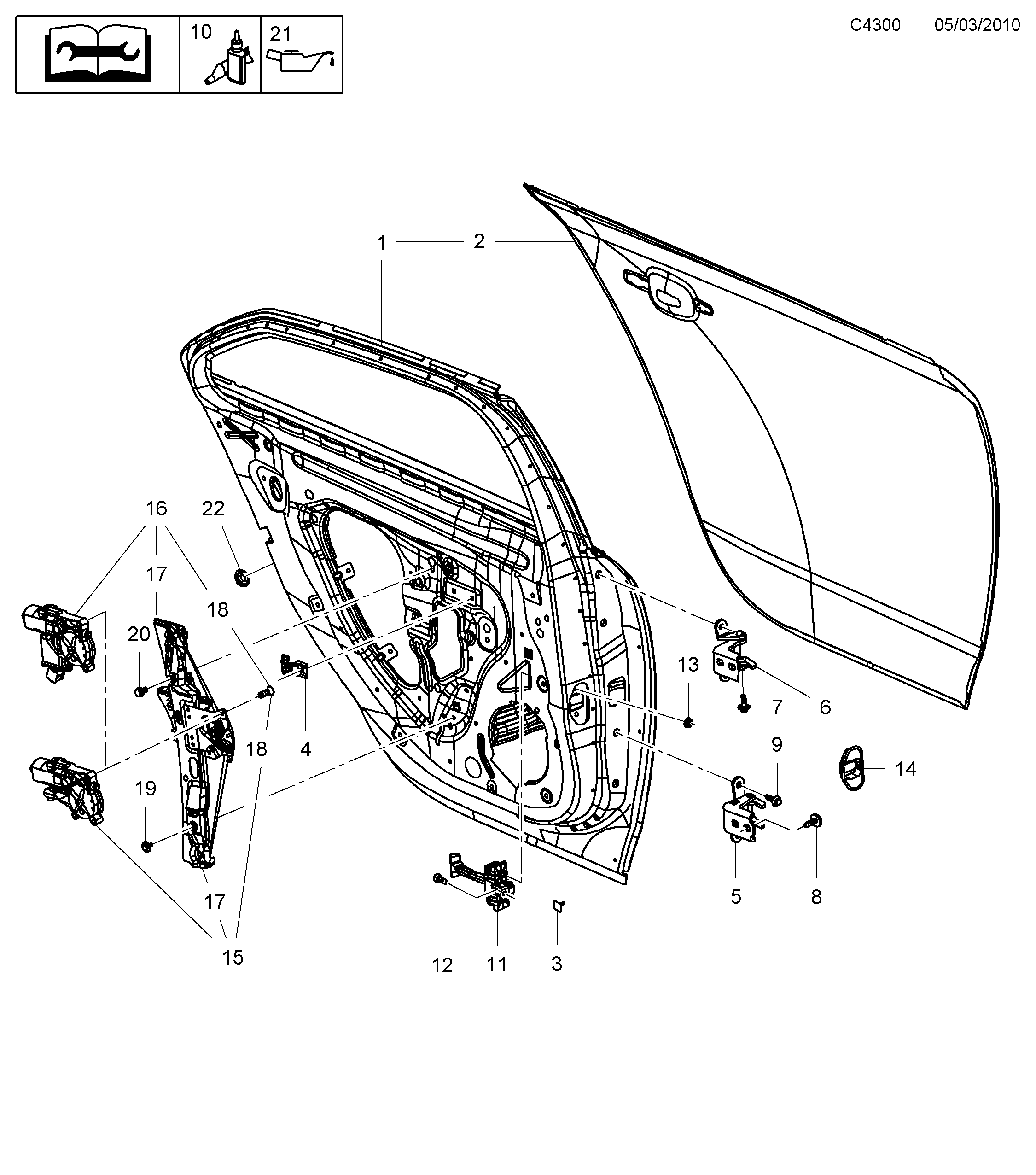

2100: Car body, external - Doors, boot lid - Rear door - Window regulator
(2010 - 2011) | For 9-5 (650) (2010)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13285609 Rear door LH | 1 | |
| 1 | 13285608 Rear door RH | 1 | |
| 2 | 13285617 Outer panel Rear door | LH | 1 | |
| 2 | 13285616 Outer panel Rear door | RH | 1 | |
| 3 | 12792705 Clip | X | |
| 4 | 12783313 Bracket Inner Handle | 2 | |
| 5 | 13229059 Hinge Lower | LH | 1 | |
| 5 | 13229060 Hinge Lower | RH | 1 | |
| 6 | 13281822 Hinge Upper | LH | 1 | |
| 6 | 13281823 Hinge Upper | RH | 1 | |
| 7 | 12768930 Screw M8X20 | 2 | |
| 8 | 11561763 Hexagon screw M8X30 | X | |
| 9 | 11571208 Screw M8 X26 | X | |
| 10 | 90542117 Flange sealant Hinge bolt | 50 ML | X | |
| 11 | 12775103 Check link | 2 | |
| 12 | 11570007 Hexagon screw | X | |
| 13 | 11900439 Nut M6 | X | |
| 14 | 12842272 Grommet Check link | X | |
| 15 | 13313815 Window regulator With Express down function | LH | 1 | |
| 16 | 13313813 Window regulator With Express up/down function | LH | 1 | |
| 17 | 13297108 Window regulator Without Motor | LH | 1 | |
| 18 | Bolt Not as separate spare part. Motor to regulator | ||
| 15 | 13313816 Window regulator With Express down function | RH | 1 | |
| 16 | 13313814 Window regulator With Express up/down function | RH | 1 | |
| 17 | 13297109 Window regulator Without Motor | RH | 1 | |
| 18 | Bolt Not as separate spare part. Motor to regulator | ||
| 19 | 11571264 Screw M6x15 | X | |
| 20 | 13308337 Screw M6X12 | X | |
| 21 | 90001825 Grease Window regulator | 200G | X | |
| 10 | 90542117 Flange sealant Window regulator | X | |
| 22 | 24436714 Plug | 1 |
