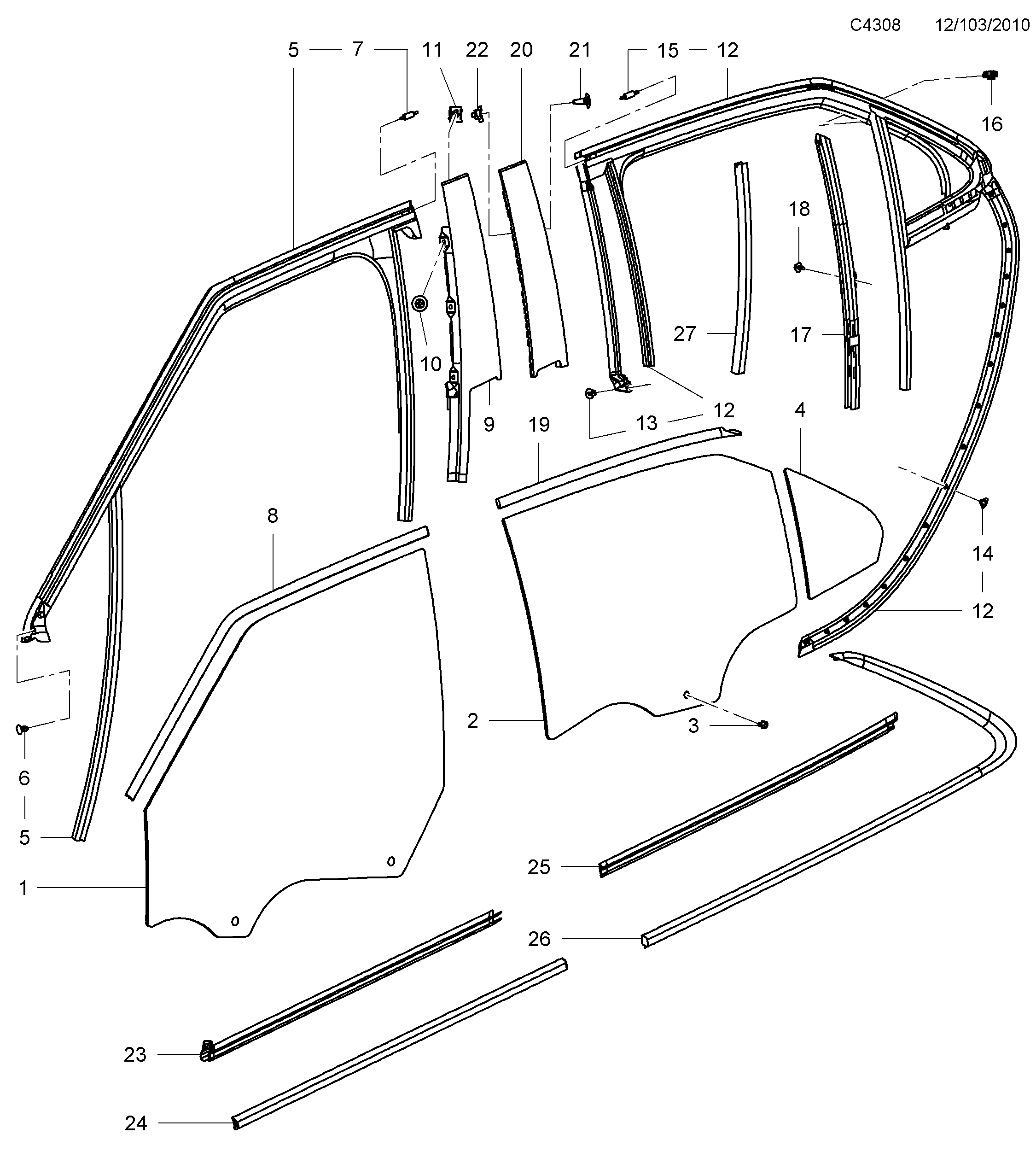

3500: Car body, external - External details - Door and side windows
(2010 - 2011) | For 9-5 (650) (2010)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12772870 Door window FRONT,LH | 1 | |
| 1 | 12772869 Door window FRONT,RH | 1 | |
| 2 | 12772866 Door window Without Deep tinted rear windows | REAR,LH | 1 | |
| 2 | 12772864 Door window With Deep tinted rear windows | REAR,LH | 1 | |
| 2 | 12772865 Door window Without Deep tinted rear windows | REAR,RH | 1 | |
| 2 | 12772863 Door window With Deep tinted rear windows | REAR,RH | 1 | |
| 3 | 25803643 Retainer Rear side window | 2 | |
| 4 | 12772862 Glass, fixed window Without Deep tinted rear windows | LH | 1 | |
| 4 | 12772858 Glass, fixed window With Deep tinted rear windows | LH | 1 | |
| 4 | 12772861 Glass, fixed window Without Deep tinted rear windows | RH | 1 | |
| 4 | 12772857 Glass, fixed window With Deep tinted rear windows | RH | 1 | |
| 5 | 12776425 Seal 2010-2010 | Front door window | LH | 1 | |
| 5 | 12776424 Seal 2010-2010 | Front door window | RH | 1 | |
| 6 | 13292066 Retainer | X | |
| 7 | 13281829 Retainer | X | |
| 8 | 12776941 Stripe Front door window | LH | 1 | |
| 8 | 12826914 Stripe Front door window | LH | 1 | |
| 8 | 12776940 Stripe Front door window | RH | 1 | |
| 8 | 12826915 Stripe Front door window | RH | 1 | |
| 9 | 13299784 Cover Anthracite. Front door window | LH | 1 | |
| 9 | 13299785 Cover Anthracite. Front door window | RH | 1 | |
| 10 | 92152026 Screw Front door window | X | |
| 11 | 13118202 Nut Front door window | X | |
| 12 | 13292081 Seal Rear side window | LH | 1 | |
| 12 | 13292080 Seal Rear side window | RH | 1 | |
| 13 | 13292066 Retainer | X | |
| 14 | 24441519 Retainer | X | |
| 15 | 13281829 Retainer | X | |
| 16 | 12849999 Retainer | X | |
| 17 | 12776953 Guide rail Rear side window | LH | 1 | |
| 17 | 12776952 Guide rail Rear side window | RH | 1 | |
| 18 | 11519381 Screw Rear side window | M6x15 | 1 | |
| 19 | 12776939 Stripe Rear side window | LH | 1 | |
| 19 | 12826912 Stripe Rear side window | LH | 1 | |
| 19 | 12776938 Stripe Rear side window | RH | 1 | |
| 19 | 12826913 Stripe Rear side window | RH | 1 | |
| 20 | 13299786 Cover Anthracite. Rear side window | LH | 1 | |
| 20 | 13299787 Cover Anthracite. Rear side window | RH | 1 | |
| 21 | 92152026 Screw Rear side window | X | |
| 22 | 13118202 Nut Rear side window | X | |
| 23 | 12776413 Sealing strip Front door window | INNER,LH | 1 | |
| 23 | 12776412 Sealing strip Front door window | INNER,RH | 1 | |
| 24 | 12776421 Sealing strip Front door window | OUTER,LH | 1 | |
| 24 | 12776420 Sealing strip Front door window | OUTER,RH | 1 | |
| 24 | 12826910 Sealing strip Front door window | OUTER,LH | 1 | |
| 24 | 12826911 Sealing strip Front door window | OUTER,RH | 1 | |
| 25 | 12776415 Sealing strip Rear side window | INNER,LH | 1 | |
| 25 | 12776414 Sealing strip Rear side window | INNER,RH | 1 | |
| 26 | 12776419 Sealing strip Rear side window | OUTER,LH | 1 | |
| 26 | 12776418 Sealing strip Rear side window | OUTER,RH | 1 | |
| 26 | 12826909 Sealing strip Rear side window | OUTER,LH | 1 | |
| 26 | 12826908 Sealing strip Rear side window | OUTER,RH | 1 | |
| 27 | 13292280 Insulation Rear side window | LH | 1 | |
| 27 | 13292281 13292280 Insulation Rear side window | RH | 1 |
