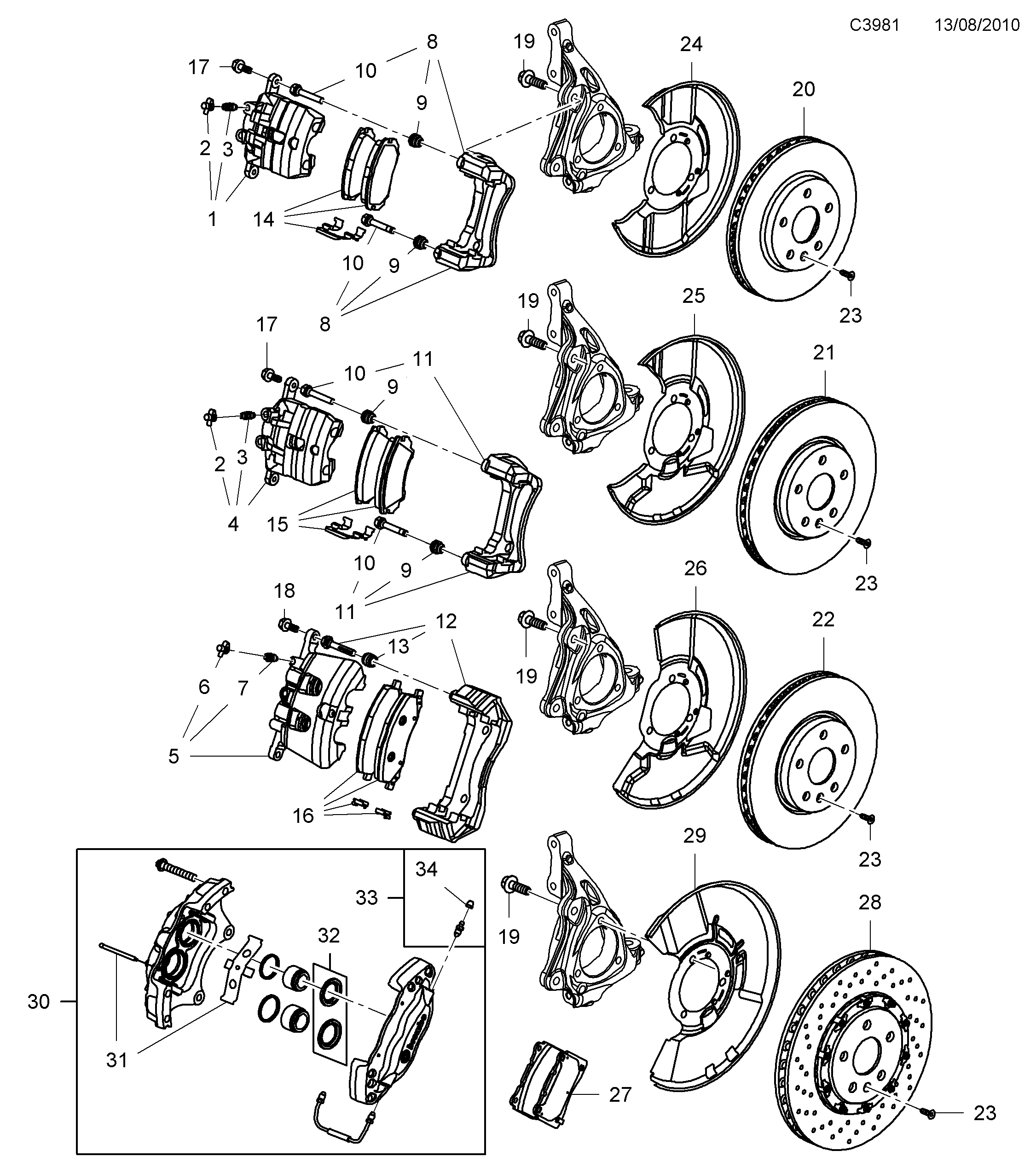

| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13279638 Brake housing Brake caliper 16" Brakes Without Brake noise and dust performance | LH CODE = CA | 1 | |
| 1 | 13279639 Brake housing Brake caliper 16" Brakes Without Brake noise and dust performance | RH CODE = CA | 1 | |
| 2 | 88935785 Dust cap Brake caliper 16" Brakes Without Brake noise and dust performance | 2 | |
| 3 | 88935776 Bleeder valve Brake caliper 16" Brakes Without Brake noise and dust performance | 2 | |
| 4 | 13279638 Brake housing Brake caliper 17" Brakes Brake noise and dust performance | LH CODE = CA | 1 | |
| 4 | 13279639 Brake housing Brake caliper 17" Brakes Brake noise and dust performance | RH CODE = CA | 1 | |
| 4 | 13578804 Brake housing Brake caliper 17" Brakes Without Brake noise and dust performance | LH CODE=CB | 1 | |
| 4 | 13578803 Brake housing Brake caliper 17" Brakes Without Brake noise and dust performance | RH CODE=CB | 1 | |
| 2 | 88935785 Dust cap Brake caliper 17" Brakes | 2 | |
| 3 | 88935776 Bleeder valve Brake caliper 17" Brakes | 2 | |
| 5 | 13276172 Brake housing Brake caliper 17"+ Brakes | LH CODE=CC | 1 | |
| 5 | 13276173 Brake housing Brake caliper 17"+ Brakes | RH CODE=CC | 1 | |
| 6 | 9200134 Dust cap Brake caliper 17"+ Brakes | 2 | |
| 7 | 93179161 Bleeder valve Brake caliper 17"+ Brakes | 2 | |
| 8 | 13364139 Brake Carrier 16" Brakes Without Brake noise and dust performance | LH | 1 | |
| 8 | 13364140 Brake Carrier 16" Brakes Without Brake noise and dust performance | RH | 1 | |
| 9 | 15851364 Seal Guide pin 16" Brakes Without Brake noise and dust performance | 4 | |
| 10 | 13504030 Guide pin | 1 | |
| 11 | 13364143 Brake Carrier 17" Brakes Without Brake noise and dust performance | LH | 2 | |
| 11 | 13364144 Brake Carrier 17" Brakes Without Brake noise and dust performance | RH | 2 | |
| 9 | 15851364 Seal Guide pin 17" Brakes Without Brake noise and dust performance | 4 | |
| 10 | 13504030 Guide pin | 1 | |
| 11 | 13364141 Brake Carrier 17" Brakes Brake noise and dust performance | LH | 1 | |
| 11 | 13364142 Brake Carrier 17" Brakes Brake noise and dust performance | RH | 1 | |
| 9 | 15851364 Seal Guide pin 17" Brakes Brake noise and dust performance | 4 | |
| 10 | 13504030 Guide pin | 1 | |
| 12 | 13276187 Brake Carrier 17"+ Brakes | 2 | |
| 13 | 13276182 Seal Guide pin 17"+ Brakes | 4 | |
| 14 | 13237750 Brake pad kit 16" Brakes Without Brake noise and dust performance | 1 | |
| 15 | 13237751 Brake pad kit 17" Brakes Without Brake noise and dust performance | 1 | |
| 15 | 13237753 Brake pad kit 17" Brakes Brake noise and dust performance | 1 | |
| 16 | 13237752 Brake pad kit 17"+ Brakes Without Brake noise and dust performance | 1 | |
| 17 | 89027183 Screw Guide pin 16" Brakes 17" Brakes | 4 | |
| 18 | 13276180 Screw Guide pin 17"+ Brakes | 4 | |
| 19 | 11562022 Screw Caliper to knuckle 16" Brakes 17" Brakes 17"+ Brakes | M14X42 | 4 | |
| 19 | 13331028 Screw Caliper to knuckle 18"+ Brakes | M14X55 | 4 | |
| 20 | 13579147 Brake disc 16" Brakes Diameter 296mm | CODE=AF | 2 | |
| 21 | 13579148 Brake disc 17" Brakes Diameter 321mm | CODE=AG | 2 | |
| 22 | 13579153 Brake disc 17"+ Brakes Diameter 337mm | CODE=AH | 2 | |
| 23 | 11570339 Screw Brake disc | M6 | 2 | |
| 24 | 13219205 Protecting plate 16" Brakes | LH | 1 | |
| 24 | 13219206 Protecting plate 16" Brakes | RH | 1 | |
| 25 | 13230782 Protecting plate 17" Brakes | LH | 1 | |
| 25 | 13230783 Protecting plate 17" Brakes | RH | 1 | |
| 26 | 13235021 Protecting plate 17"+ Brakes | LH | 1 | |
| 26 | 13235022 Protecting plate 17"+ Brakes | RH | 1 | |
| 27 | 13329562 Brake pad kit 2011-2011 | 18"+ Brakes | 1 | |
| 28 | 13273625 Brake disc 18"+ Brakes Diameter 345mm | CODE=AE | 2 | |
| 29 | 13273626 Protecting plate 2011-2011 | 18"+ Brakes | RH | 1 | |
| 29 | 13273627 Protecting plate 2011-2011 | 18"+ Brakes | LH | 1 | |
| 30 | 13273621 Brake caliper 2011-2011 | 18"+ Brakes | RH CODE=CD | 1 | |
| 30 | 13273623 Brake caliper 2011-2011 | 18"+ Brakes | LH CODE=CD | 1 | |
| 31 | 13329560 Fastener kit 2011-2011 | 18"+ Brakes | 1 | |
| 32 | 89047722 Bellows kit 2011-2011 | 18"+ Brakes | 1 | |
| 33 | 89047719 Bleeder valve 2011-2011 | 18"+ Brakes | 1 | |
| 34 | 89047720 Dust cap 2011-2011 | 18"+ Brakes | 1 |
