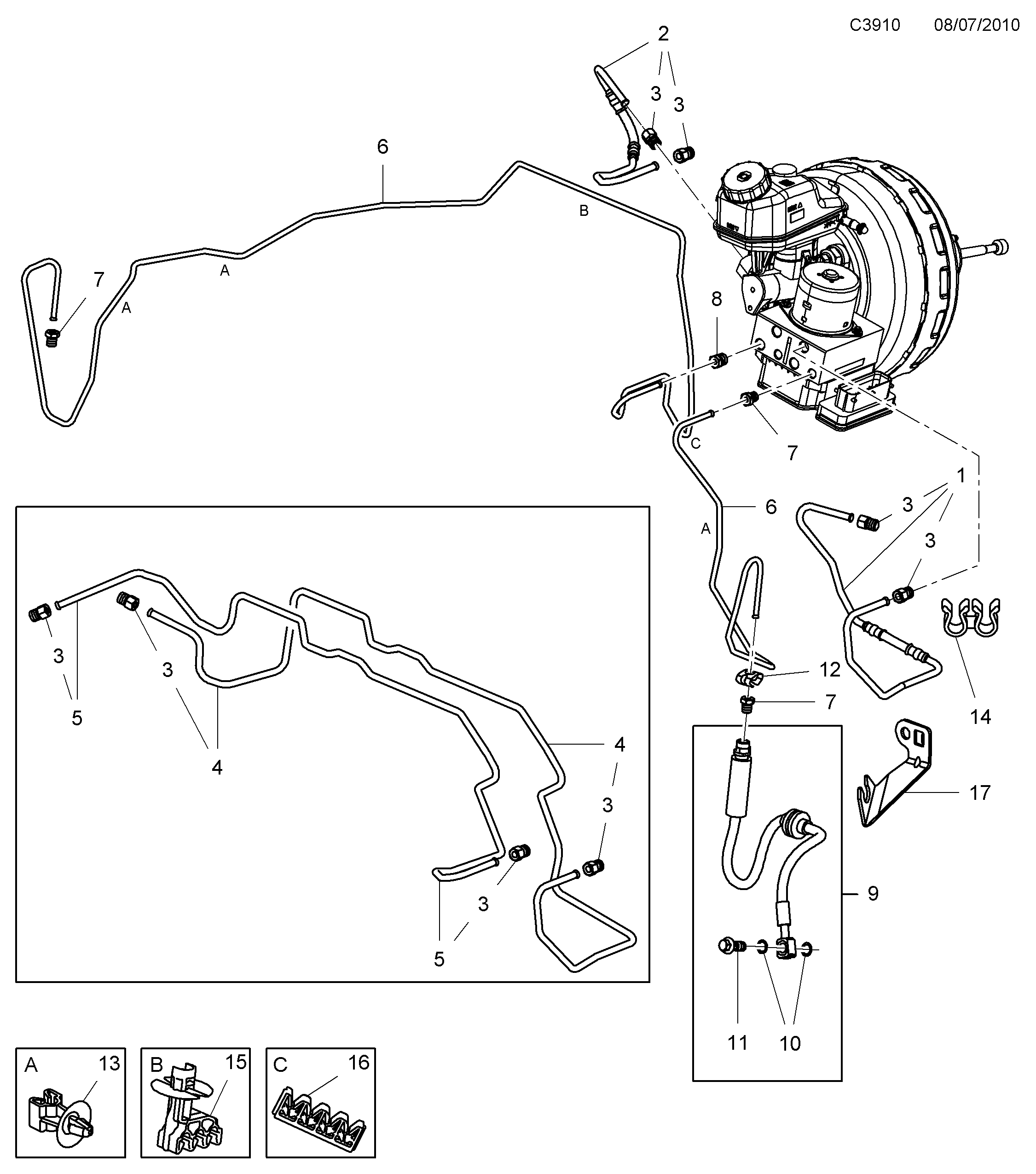

5000: Brakes - Footbrake system - Brake lines - Front
(2010 - 2011) | For 9-5 (650) (2011)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13227575 Brake line LHD | Hydraulic unit Primary | 1 | |
| 3 | 11518522 Nut M12X13 | 2 | |
| 2 | 20981029 Brake line LHD | Hydraulic unit Secondary | 1 | |
| 3 | 11518522 Nut M12X13 | 2 | |
| 4 | 13227581 Brake line RHD | A16LET, A20DTH, A20DTR | Hydraulic unit Primary | 1 | |
| 4 | 13292002 Brake line RHD | A20NHT, A20NFT | Hydraulic unit Primary With All Wheel Drive (XWD) | 1 | |
| 4 | 13292003 Brake line RHD | A28NER | Hydraulic unit Primary | 1 | |
| 4 | 13292003 Brake line RHD | A20NFT | Hydraulic unit Primary Less All Wheel Drive (XWD) | 1 | |
| 3 | 11518522 Nut M12X13 | 2 | |
| 5 | 13227582 Brake line RHD | A20DTH, A20DTR | Hydraulic unit Secondary | 1 | |
| 5 | 13292004 Brake line RHD | A20NHT | Hydraulic unit Secondary With All Wheel Drive (XWD) | 1 | |
| 5 | 13292005 Brake line RHD | A28NER | Hydraulic unit Secondary | 1 | |
| 5 | 13292005 Brake line RHD | A20NFT | Hydraulic unit Secondary Less All Wheel Drive (XWD) | 1 | |
| 5 | 13308275 Brake line RHD | A16LET | Hydraulic unit Secondary | 1 | |
| 3 | 11518522 Nut M12X13 | 2 | |
| 6 | 93178453 Brake line 6 metre roll Sold by the metre | Ø 5.14mm | 1 | |
| 7 | 11518524 Screw Union Brake pipe | M10X13 | X | |
| 8 | 11518525 Screw Union Brake pipe | M12X13 | X | |
| 9 | 20912237 Brake hose 2011-2011 | Front 16" Brakes 17" Brakes Standard front strut | 2 | |
| 9 | 20912241 Brake hose Front 16" Brakes 17" Brakes Performance front strut | 2 | |
| 9 | 20912240 Brake hose Front 17"+ Brakes Performance front strut | 2 | |
| 9 | 20912239 Brake hose Front 18"+ Brakes Performance front strut | 2 | |
| 10 | 13289726 Gasket Banjo bolt Front Brake hose | 4 | |
| 11 | 11569590 Screw Banjo bolt Front Brake hose Standard front strut | 2 | |
| 11 | 11518683 Screw Banjo bolt Front Brake hose Performance front strut | M10 | 2 | |
| 12 | 90498320 Clamping spring Front Brake hose | 2 | |
| 13 | 13235986 Clamp Front Brake pipe | X | |
| 14 | 13333161 Clip RHD | Brake pipe Hydraulic unit | 1 | |
| 15 | 24466933 Pipe clip Brake pipe | 1 | |
| 16 | 24433064 Clip A20DTH | X | |
| 17 | 13246028 Bracket 2011-2011 | Brake hose 18"+ Brakes | LH | 1 | |
| 17 | 13246029 Bracket 2011-2011 | Brake hose 18"+ Brakes | RH | 1 |
