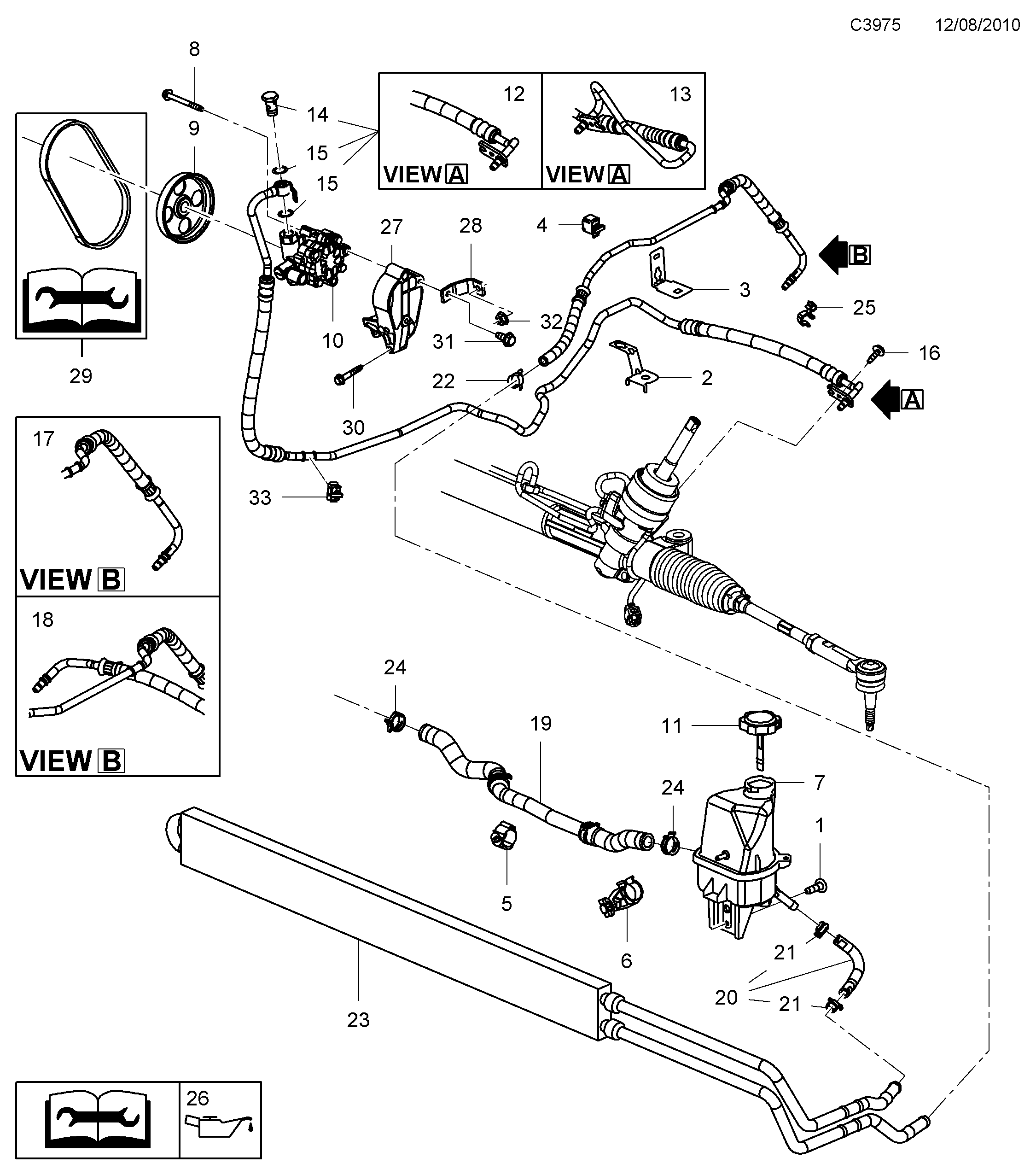

3900: Steering - Steering assembly - Hydraulic pump and hoses
(2011 | A20NFT, A16LET) | For 9-5 (650) (2011)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 9202831 Screw | 1 | |
| 2 | 13259113 Bracket RHD | Outlet pipe | 1 | |
| 3 | 13259114 Bracket Outlet pipe | 1 | |
| 4 | 13259115 Clip Outlet pipe | X | |
| 5 | 13288058 Clip Outlet pipe | 1 | |
| 6 | 13310359 Clip Outlet pipe | 1 | |
| 7 | 22755964 Reservoir power steering Without Cap | 1 | |
| 8 | 11588733 Hexagon screw power steering Pump | M8X80 | 2 | |
| 9 | 96837811 Pulley power steering Pump | 1 | |
| 10 | 13258067 Pump, hydraulic oil power steering | 1 | |
| 11 | 22755965 Cap Power steering reservoir | 1 | |
| 12 | 20957805 Pressure hose LHD | Power steering gear Inlet | 1 | |
| 13 | 20957806 Pressure hose RHD | Power steering gear Inlet | 1 | |
| 14 | 13280036 Hollow screw Power steering gear Inlet hose Fitting | 1 | |
| 15 | 13305013 Seal Power steering gear Inlet hose Fitting | 2 | |
| 16 | 11519383 Screw Power steering gear Inlet hose Outlet hose | 1 | |
| 17 | 13232697 Return line LHD | Power steering gear Outlet hose | 1 | |
| 18 | 13232699 Return line RHD | Power steering gear Outlet hose | 1 | |
| 19 | 13219369 Hose Power steering reservoir Outlet | 1 | |
| 20 | 13281432 Hose Power steering reservoir Inlet | 1 | |
| 21 | 13307373 Hose clamp Power steering reservoir Inlet hose | 2 | |
| 22 | 13307373 Hose clamp Power steering gear Outlet hose | 1 | |
| 23 | 13286331 Pipe power steering Cooling pipe | 1 | |
| 24 | 90572594 Hose clamp Power steering reservoir Outlet hose | 2 | |
| 25 | 13330717 Clip Power steering gear Outlet hose | RHD | 1 | |
| 26 | 93165414 Transmission oil Power steering fluid | 1L | X | |
| 26 | 93165483 Transmission oil Power steering fluid | 20L | X | |
| 27 | 55567295 Bracket Power steering pump | 1 | |
| 28 | 55564139 Brace Power steering pump | 1 | |
| 29 | 55564676 Belt Power steering pump | 1 | |
| 30 | 11588728 Hexagon screw Power steering pump Bracket | M8X50 | 2 | |
| 31 | 11588722 Hexagon screw Power steering pump Brace | M8x20 | 1 | |
| 32 | 11514596 Hexagon nut Power steering pump Brace | M8 | 1 | |
| 33 | 11611350 Clip Inlet pipe | 1 |
