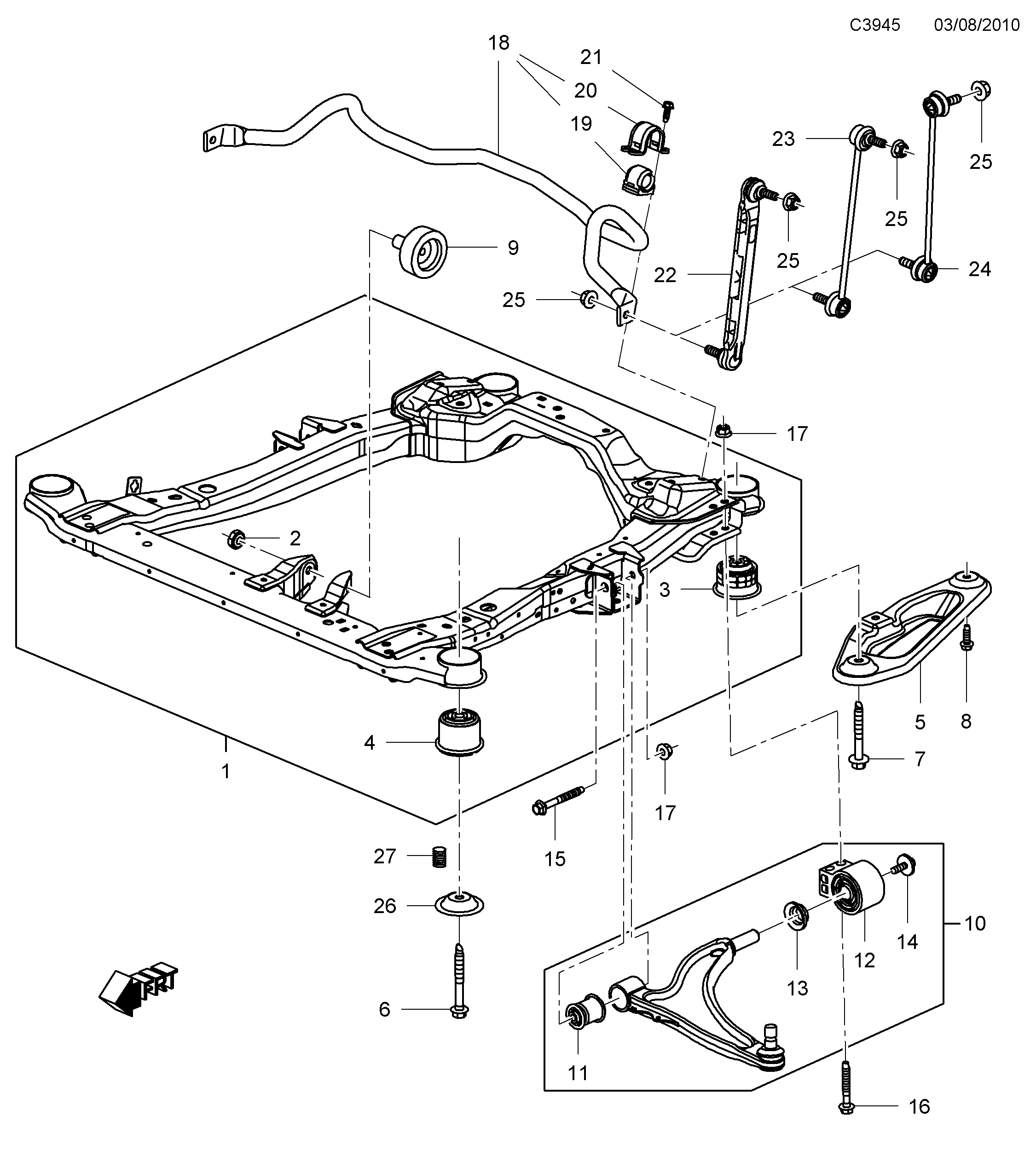

1500: Suspension system - Front suspension - Axle crossmember - All wheel drive (XWD)
(2010 - 2011) | For 9-5 (650) (2011)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12848401 Front Axle Casing | 1 | |
| 2 | 11570705 Nut | 1 | |
| 3 | 13318428 Insulation | 2 | |
| 4 | 13280217 Insulation | 2 | |
| 5 | 13303034 Support RH | 1 | |
| 5 | 13235089 Support LH | 1 | |
| 6 | 11570926 Screw M14X109.5 | 2 | |
| 7 | 11570927 Screw M14X101.5 | 2 | |
| 8 | 11588739 Hexagon screw M10X35 | 2 | |
| 9 | 13310150 Vibration damper A20DTH, A20DTR | 1 | |
| 10 | 13360020 Control arm, right Standard front strut | RH | 1 | |
| 10 | 13360028 Control arm, right Performance front strut | RH | 1 | |
| 10 | 13360019 Control arm, left Standard front strut | LH | 1 | |
| 10 | 13360027 Control arm, left Performance front strut | LH | 1 | |
| 11 | 13318894 Bushing Not as separate spare part. | 1 | |
| 12 | 13280216 Damper bushing | 1 | |
| 13 | 13278806 Sleeve | 1 | |
| 14 | 11610941 Screw M10 X 32 | 1 | |
| 15 | 11609608 Screw M12 X 95 | 2 | |
| 16 | 11589279 Screw M12X80 | 4 | |
| 17 | 11609282 Nut | 4 | |
| 18 | 13230516 Anti-roll bar A20NHT, A20NFT, A20DTR | Standard front strut With lowered sport chassis Without continuous damping control | CODE=S2 | 1 | |
| 18 | 13230516 Anti-roll bar A28NER | Performance front strut With lowered sport chassis Without continuous damping control | CODE=S2 | 1 | |
| 19 | 13281781 Insulation | 2 | |
| 20 | 13281780 Clamp | 2 | |
| 18 | 20932136 Anti-roll bar A20NHT, A20NFT | Standard front strut With lowered sport chassis With continuous damping control | CODE=S9 | 1 | |
| 18 | 20932137 Anti-roll bar A20DTR | Standard front strut With lowered sport chassis With continuous damping control | CODE=S1 | 1 | |
| 18 | 13230517 Anti-roll bar 2011-2011 | A28NER | Performance front strut With lowered sport chassis Without continuous damping control | CODE=S0 | 1 | |
| 18 | 13230520 Anti-roll bar 2011-2011 | A28NER | Performance front strut With lowered sport chassis With continuous damping control | CODE=SA | 1 | |
| 19 | 13281782 Insulation | 2 | |
| 20 | 13281780 Clamp | 2 | |
| 21 | 11588723 Screw M8X25 | 4 | |
| 22 | 13219141 Link rod Standard front strut Without continuous damping control | 2 | |
| 23 | 13258052 Link rod Standard front strut With continuous damping control | 2 | |
| 24 | 13282833 Link rod Performance front strut | 2 | |
| 25 | 11609282 Nut | 4 | |
| 26 | 13250388 Retainer | 2 | |
| 27 | 11087031 Thread insert Anti-roll bar Clamp | X |
