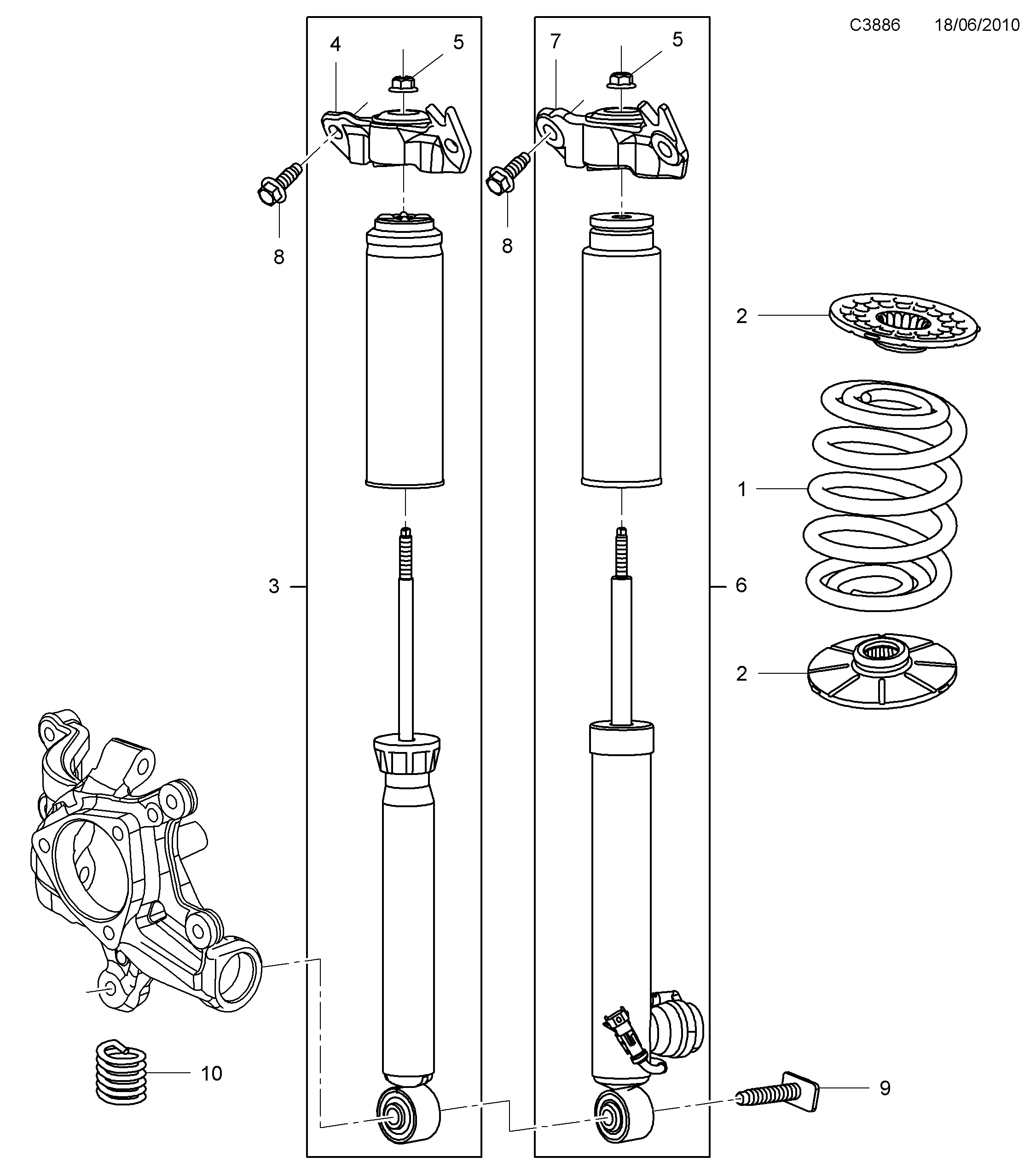

4000: Suspension system - Rear suspension - Springs and shock absorber - 4-Link rear suspension
(2010 - 2011) | For 9-5 (650) (2011)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13310867 Rear spring Except lowered sport chassis | CODE=R0 | 2 | |
| 1 | 13310869 Rear spring Except lowered sport chassis | CODE=R2 | 2 | |
| 1 | 13310868 Rear spring With lowered sport chassis | CODE=R1 | 2 | |
| 1 | 13310870 Rear spring With lowered sport chassis | CODE=R3 | 2 | |
| 2 | 90538496 Spring support | 2 | |
| 3 | 13331846 Rear shock absorber assy Without continuous damping control Except lowered sport chassis | RH CODE=85 | 1 | |
| 3 | 12822746 Rear shock absorber assy Without continuous damping control Except lowered sport chassis | RH CODE=84 | 1 | |
| 3 | 13331845 Rear shock absorber assy Without continuous damping control Except lowered sport chassis | LH CODE=85 | 1 | |
| 3 | 12822745 Rear shock absorber assy Without continuous damping control Except lowered sport chassis | LH CODE=84 | 1 | |
| 3 | 13331848 Rear shock absorber assy With lowered sport chassis Without continuous damping control | RH CODE=86 | 1 | |
| 3 | 13331847 Rear shock absorber assy With lowered sport chassis Without continuous damping control | LH CODE=86 | 1 | |
| 3 | 13331850 Rear shock absorber assy Without continuous damping control With lowered sport chassis | RH CODE=87 | 1 | |
| 3 | 13331849 Rear shock absorber assy Without continuous damping control With lowered sport chassis | LH CODE=87 | 1 | |
| 4 | 13271706 Support bearing Rear shock absorber assy | RH | 1 | |
| 4 | 13271705 Support bearing Rear shock absorber assy | LH | 1 | |
| 5 | 11516077 Nut Shock absorber | M10 | X | |
| 6 | 12823606 Rear shock absorber assy With continuous damping control With lowered sport chassis Less All Wheel Drive (XWD) | RH CODE=C9 | 1 | |
| 6 | 12823605 Rear shock absorber assy With continuous damping control With lowered sport chassis Less All Wheel Drive (XWD) | LH CODE=C9 | 1 | |
| 7 | 13271702 Support bearing Rear shock absorber assy | RH | 1 | |
| 7 | 13271701 Support bearing Rear shock absorber assy | LH | 1 | |
| 5 | 11516077 Nut Shock absorber | M10 | X | |
| 8 | 11610720 Screw Shock absorber Mounting | 2 | |
| 9 | 11589272 Screw Shock absorber Mounting | M12X30 | 4 | |
| 10 | 13127919 Thread insert M12 X12 | 1 |
