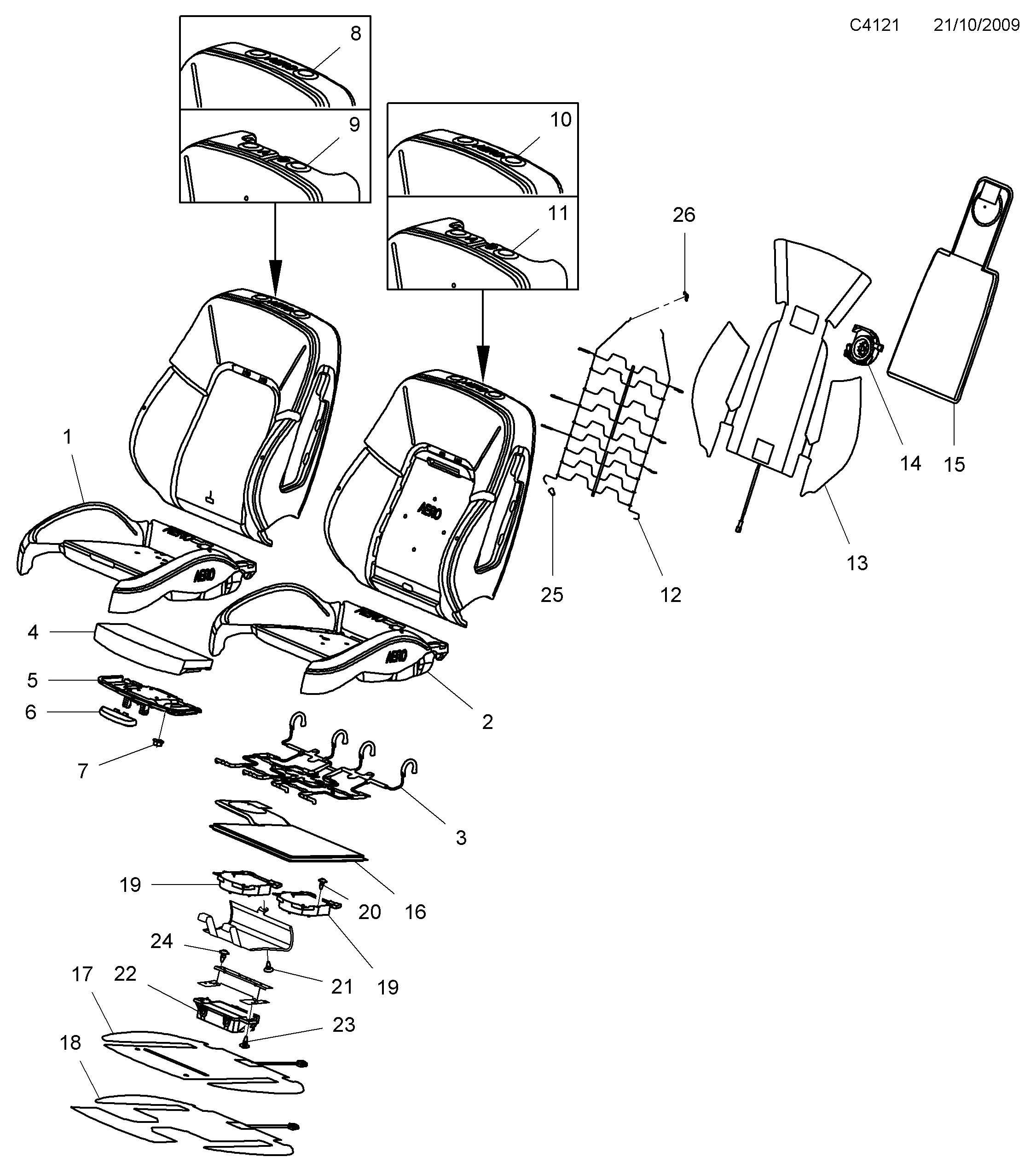

1350: Car body, internal - Front seat - Pads - Sport
(2010 - 2011) | For 9-5 (650) (2011)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12823414 Seat cushion 2011-2011 | Pad Without PPS Passenger presence system and seat fan | 2 | |
| 2 | 12823415 Seat cushion 2011-2011 | Pad Seat fan Without PPS Passenger Presence System | LH | 1 | |
| 2 | 12823416 Seat cushion 2011-2011 | Pad Seat fan Without PPS Passenger Presence System | RH | 1 | |
| 3 | 20965794 Wire matting Cushion | 2 | |
| 4 | 13264068 Cushion extension | 2 | |
| 5 | 13239029 Seat frame Manual cushion extension | 2 | |
| 6 | 13315661 Lever Manual cushion extension Jet Black | 2 | |
| 6 | 13315662 Lever Manual cushion extension Light neutral | 2 | |
| 6 | 13326596 Lever Manual cushion extension Dark pewter | 2 | |
| 7 | 11098671 Nut Manual cushion extension | X | |
| 8 | 12777544 Backrest cushion Pad Without Rear seat entertainment package and seat fan | LH | 1 | |
| 8 | 12781886 Backrest cushion RHD | Pad Without Rear seat entertainment package and seat fan | RH | 1 | |
| 8 | 12781886 Backrest cushion LHD | Pad Without PPS Passenger Presence System Rear seat entertainment package and seat fan | RH | 1 | |
| 8 | 13340383 Backrest cushion LHD | Pad PPS Passenger Presence System Without Rear seat entertainment package and seat fan | RH | 1 | |
| 9 | 12781889 Backrest cushion Pad Rear seat entertainment package Without Seat fan | LH | 1 | |
| 9 | 12781892 Backrest cushion RHD | Pad Rear seat entertainment package Without Seat fan | RH | 1 | |
| 9 | 12781892 Backrest cushion LHD | Pad Rear seat entertainment package Without Seat fan PPS Passenger Presence System | RH | 1 | |
| 9 | 13340386 Backrest cushion LHD | Pad Rear seat entertainment package PPS Passenger Presence System Without Seat fan | RH | 1 | |
| 10 | 12777545 Backrest cushion Pad Seat fan Without Rear seat entertainment package | LH | 1 | |
| 10 | 12781887 Backrest cushion RHD | Pad Seat fan Without Rear seat entertainment package | RH | 1 | |
| 10 | 12781887 Backrest cushion LHD | Pad Seat fan Without PPS Passenger Presence System Rear seat entertainment package | RH | 1 | |
| 10 | 13340384 Backrest cushion LHD | Pad Seat fan PPS Passenger Presence System Without Rear seat entertainment package | RH | 1 | |
| 11 | 12781890 Backrest cushion Pad Seat fan Rear seat entertainment package | LH | 1 | |
| 11 | 12781893 Backrest cushion RHD | Pad Seat fan Rear seat entertainment package | RH | 1 | |
| 11 | 12781893 Backrest cushion LHD | Pad Seat fan Rear seat entertainment package Without PPS Passenger Presence System | RH | 1 | |
| 11 | 13340387 Backrest cushion LHD | Pad Seat fan Rear seat entertainment package PPS Passenger Presence System | RH | 1 | |
| 12 | 13344013 Wire matting Backrest | 2 | |
| 13 | 13318272 Heating pad Backrest Seat fan | 2 | |
| 13 | 12777550 Heating pad Backrest Without Seat fan | 2 | |
| 14 | 13272826 Fan Backrest Seat fan | 2 | |
| 15 | 12841890 Mat Backrest Seat fan | 2 | |
| 16 | 12841891 Mat Cushion Seat fan | LH | 1 | |
| 16 | 12841892 Mat Cushion Seat fan | RH | 1 | |
| 17 | 13318270 Heating pad Cushion Seat fan Without Manual cushion extension | 1 | |
| 17 | 13318271 Heating pad Cushion Without Manual cushion extension and seat fan | 1 | |
| 18 | 12777552 Heating pad Cushion Manual cushion extension Seat fan | 1 | |
| 18 | 12777553 Heating pad Cushion Manual cushion extension Without Seat fan | 1 | |
| 19 | 13272825 Fan Cushion Seat fan | 2 | |
| 20 | 13330420 Screw Seat fan | M5 X 12 | X | |
| 21 | 13324600 Screw Seat fan Guard | M5 X 12 | 1 | |
| 22 | 13502042 Control unit Cushion | 1 | |
| 23 | 13330420 Screw Control unit | M5 X 12 | 2 | |
| 24 | 13330420 Screw M5 X 12 | 2 | |
| 25 | 13331394 Retainer Wire matting | X | |
| 26 | 13290987 Clip Wire matting | 4 | |
| 27 | 12825171 Protection Guard Seat fan | 1 |
