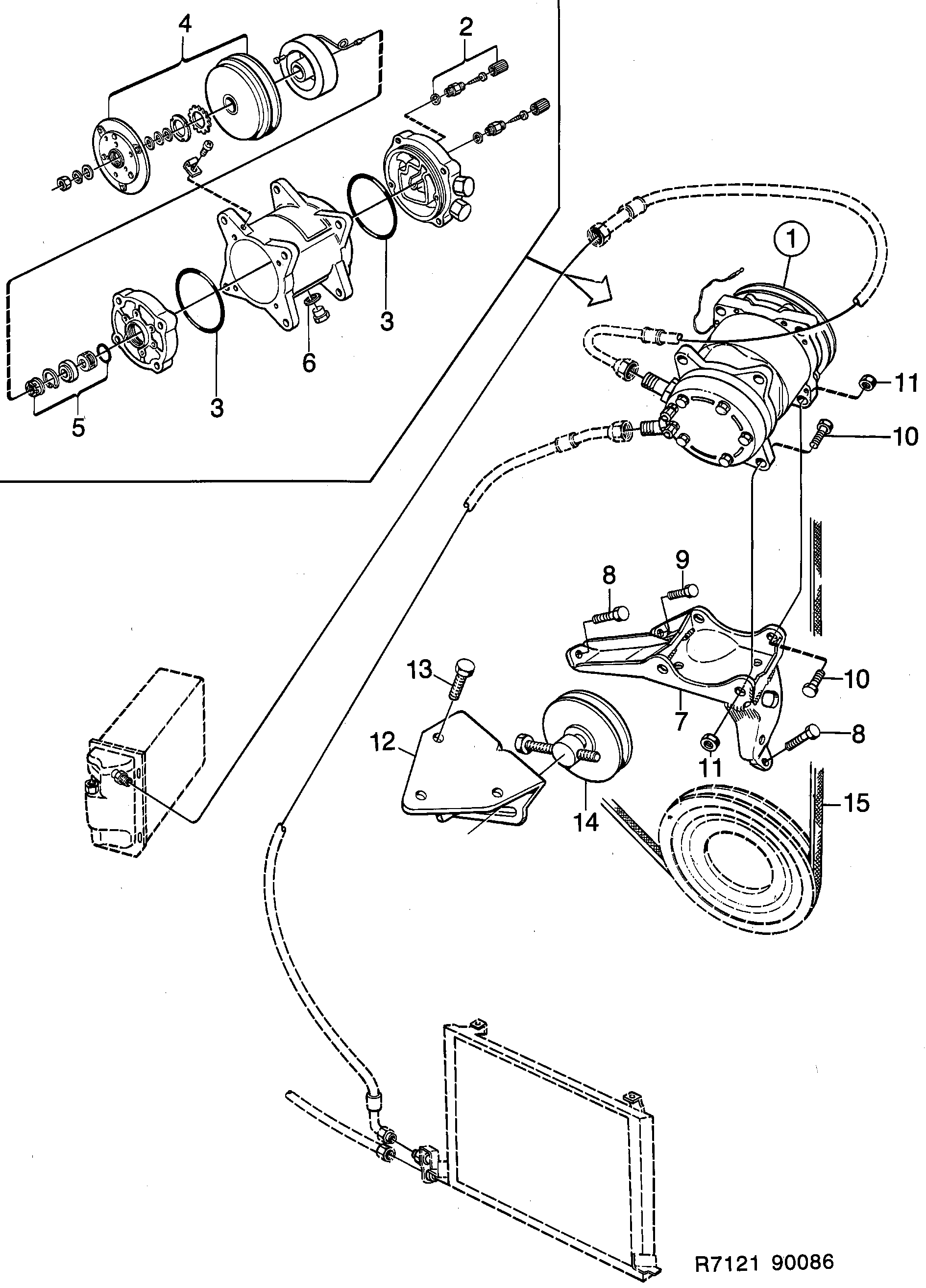

340: Chauffage et ventilation - Compresseur AC - (Clarion)
(1986) | Pour 900 (1986)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8820987 Compresseur (CLARION) | 1 | |
| 2 | 8821571 Soupape | 2 | |
| 3 | 8821605 Joint torique | 2 | |
| 4 | 8820995 Embrayage | 1 | |
| 5 | 8821597 Kit joints | 1 | |
| 6 | 8821589 Kit joints | 1 | |
| 7 | 9331562 Fixation | 1 | |
| 8 | 9339615 Vis | 2 | |
| 9 | 9339623 Vis | 1 | |
| 10 | 8083164 8148223 Vis | 4 | |
| 11 | 8029779 8151243 Ecrou | 4 | |
| 12 | 8821001 Console | 1 | |
| 13 | 8082943 Vis | 2 | |
| 14 | 8820128 Bras | 1 | |
| 15 | 9344623 Courroie trapézoïdale | 1 | |
8820029 Climatisation | X | ||
8820052 Câblage 1986-1986 | B201 | (FOR KIT 8820029) | X | ||
8820045 Câblage 1986-1986 | B201 | (FOR KIT 8820029) | X | ||
8821647 Jeu comp ralent 1986-1986 | B201C | (FOR KIT 8820029) | X | ||
9746710 Kit accessoire 1986-1986 | (FOR KIT 8820029) | X |
