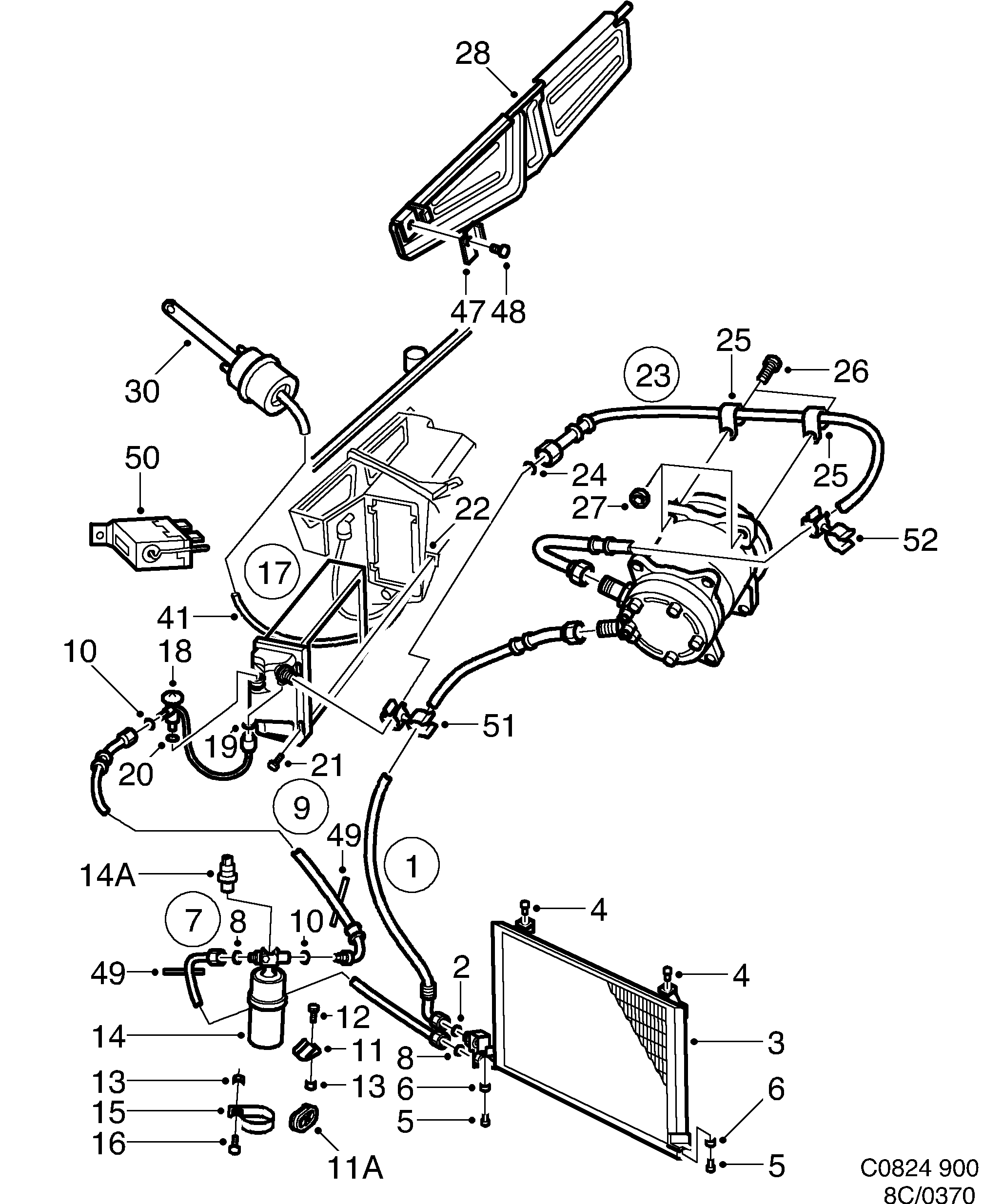

370: Chauffage et ventilation - Evaporateur AC - (Clarion)
(1986) | Pour 900 (1986)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 8820201 Flexible | 1 | |||
| 2 | 7972094 30541941 Joint torique | 1 | |||
| 3 | 8820177 Condenseur | 1 | |||
| 4 | 8059578 Vis | 2 | |||
| 5 | 7922420 Vis | 2 | |||
| 6 | 8029951 Rondelle | 2 | |||
| 7 | 8820219 Flexible | 1 | |||
| 8 | 7972086 30541940 Joint torique | 2 | |||
| 9 | 8820227 Flexible | 1 | |||
| 10 | 7972086 30541940 Joint torique | 2 | |||
| 11 | 9481458 Collier serrage | 1 | |||
| 11A | 9481441 Cale | 1 | |||
| 12 | 8019911 Vis | 1 | |||
| 13 | 8029555 8151227 Ecrou | 2 | |||
| 14 | 8820185 Réservoir | 1 | |||
| 14A | 8821639 Contact | 1 | |||
| 15 | 9461088 Collier serrage | 1 | |||
| 16 | 8082968 55562873 Vis | 1 | |||
| 17 | 8820169 Evaporateur | 1 | |||
| 18 | 8821431 Soupape | 1 | |||
| 19 | 7972078 Joint torique | 1 | |||
| 20 | 7972094 30541941 Joint torique | 1 | |||
| 21 | 7922461 Vis | 4 | |||
| 22 | 9465600 Ecrou | 4 | |||
| 23 | 8820193 Flexible | 1 | |||
| 24 | 7972482 4318044 Joint torique | 1 | |||
| 25 | 9480898 Collier serrage | 2 | |||
| 26 | 8019945 Vis | 2 | |||
| 27 | 8073512 92150265 Contre-écrou | 2 | |||
| 28 | 8820151 Volet | 1 | |||
| 30 | |||||
| 47 | 8821548 Plaque fixation | 1 | |||
| 48 | 8821555 Vis | 1 | |||
| 49 | 8278558 Lisse protection | 1 | |||
| 50 | |||||
| 51 | 7398373 Collier serrage | 1 | |||
| 52 | 7398530 Collier serrage | 1 | |||
