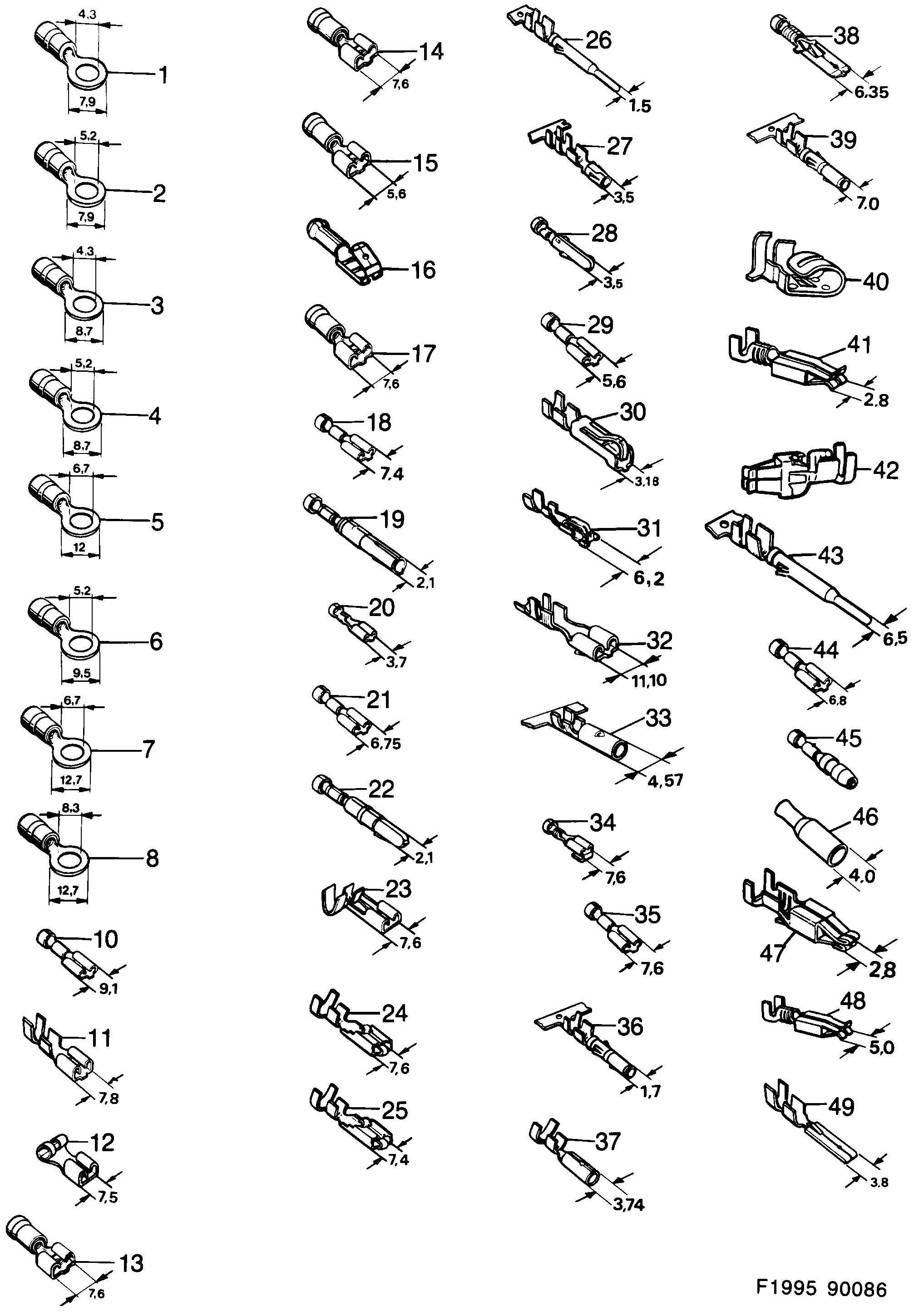

1000: Système électrique, boîte de connexion - Conduites et fusibles - Cosse câble

40/253 152 003

40/253 153 001

40/253 172 001

40/253 173 009

40/253 174 007

40/253 210 009

40/253 211 007

40/253 212 005

JOINT PIECE IN CONTACT HOUSING, 7155021

FOR THERMO SWITCH DOME LIGHT,FUSE BOX, JOINT PIECE,LIGHT CONTROLS,LAMP SAFETY BELT WARNING,CYKEL THERMOSTAT,IN CONTACT HOUSING 8516916,8572083

FOR THERMO SWITCH DOOR SWITCH

40/253 168 009

40/253 195 002

40/253 197 008,FOR HEADLIGHT

40/253 226 005

FOR EL-CENTRAL RELAY AC COMPRESSOR, FOR CONTACT HOUSING 8533697,8533705,8558538

IN FUSE BOX,FUEL PUMP,JOINT PIECE, COOLING FAN AC,INTERVAL RELAY,FOR CONTACT HOUSING,7155096,7342892 8533697,8533705,8544397 8552200

FOR APC FOR CONTACT HOUSING, 7155120,8533697

FOR ALTERNATOR JOINT PIECE,FOR CONTACT HOUSING,8541229

FOR LIGHT CIGARETTE LIGHTER,FAN,DOME LIGHT FUSE BOX,FOR CONTACT HOUSING,8516916

FOR CONTACT HOUSING 7155096,7155112,7342892 8521536,8533697

FOR CONTACT HOUSING 7342892

FOR CONTACT HOUSING 7155096,7155112,7342892 8521536,8533697,8552200

FOR CONTACT HOUSING 7155112

FOR CONTACT HOUSING 8516932

FOR CONTACT HOUSING 8530115

FOR CONTACT HOUSING 8540569,8551665,8571390 8378630

FOR CONTACT HOUSING 8558538

FOR CONTACT HOUSING 8504789,8530081

FOR CONTACT HOUSING 8516940,8530081

FOR JOINT PIECE

FOR JOINT PIECE IDLE COMPENSATOR,THERMO SWITCH AC,AC VALVE AIR SLIDE,FOR CONTACT HOUSING,8521692,9518416

FOR CONTACT HOUSING 8521692

FOR JOINT PIECE FOR CONTACT HOUSING 8521692

FOR GLOVE BOX LIGHT EARTH,SWITCH AC,DOME LIGHT,THERMOSTAT AC DIRECTION INDICATOR LOW PRESSURE SWITCH MICRO SWITCH,TAIL LIGHT FOR CONTACT HOUSING 8541229,8544363

FOR FUSE BOX,FAN UNIT,GLOVE BOX LIGHT, DIRECTION INDICATOR JOINT PIECE,MICRO SWITCH,THERMOSTAT AC FOR CONTACT HOUSING 8541229,8544363,8574949

JOINT PIECE,FOR CONTACT HOUSING,9507658

FOR FUSE BOX FOR CONTACT HOUSING 8553497,8561631

FOR CONTACT HOUSING 8544215,8544231,8544256

FOR EL-CENTRAL,FOR CONTACT HOUSING 8544220, 8553497,8564916

FOR FUSE BOX THEFT ALARM,HORN,FOR CONTACT HOUSING,8544249

FOR JOINT PIECE FUSE BOX,FOR CONTACT HOUSING,8544215,8544231 8544256,8553505,8561623

FOR CONTACT HOUSING 8544215,8544231,8553505

FOR FLASHER

OIL GUARD,FUSE BOX,TEMP SENSOR,PRESSURE GUARD AC,DOOR SWITCH THERMOSWITCH THERMOSTAT SWITCH GEAR INDICATOR JOINT PIECE,FOR CONTACT HOUSING,8516916

FOR PRESSURE SWITCH FOR CONTACT HOUSING, 8533184

FOR CONTACT HOUSING 8533184

FOR CONTACT HOUSING 8544348

FOR CONTACT HOUSING 8568735

FUSE BOX

FUSE BOX

COMPRESSOR

FUSE BOX

FOR JOINT PIECE FOR CONTACT HOUSING, 8516916,8521544

FOR STARTER,BACK- UP LIGHT,FOR CONTACT HOUSING,8516916,8521544 8572083

FUSE BOX

FUSE BOX,JOINT PIECE,RELAY COOLING FAN AC,RELAY AC-COMPRESSOR FOR CONTACT HOUSING 7155096,7155112,8533697 8544249,8551665,8571390

FOR CONTACT HOUSING 8558546

FOR CONTACT HOUSING 7155120

FOR CONTACT HOUSING 9502998

FOR CONTACT HOUSING 8544249

FOR SWITCH WINDOW REGULATOR,JOINT PIECE, REGULATOR,FOR CONTACT HOUSING,8582116

FOR FUSE BOX,JOINT PIECE,FOR CONTACT HOUSING,8533655,9124090 9124157

FOR FUSE BOX

FOR FUSE BOX,JOINT PIECE,FOR CONTACT HOUSING,8533655,9124090 9124157,9124199

FOR FUSE BOX FOR CONTACT HOUSING, 8544215,8544256

FOR FUSE BOX,FOR CONTACT HOUSING,9124090 9124191

FOR FUSE BOX,FAN FOR CONTACT HOUSING, 9124090

FOR THEFT ALARM

FOR EL-ANTENNA

FOR FUSE BOX FOR CONTACT HOUSING, 8586802,8593899,8593915 8593931,9123399

FOR CONTACT HOUSING 9124090

FOR CONTACT HOUSING 9124199

FOR CONTACT HOUSING 9124199

FOR CONTACT HOUSING 9124199
