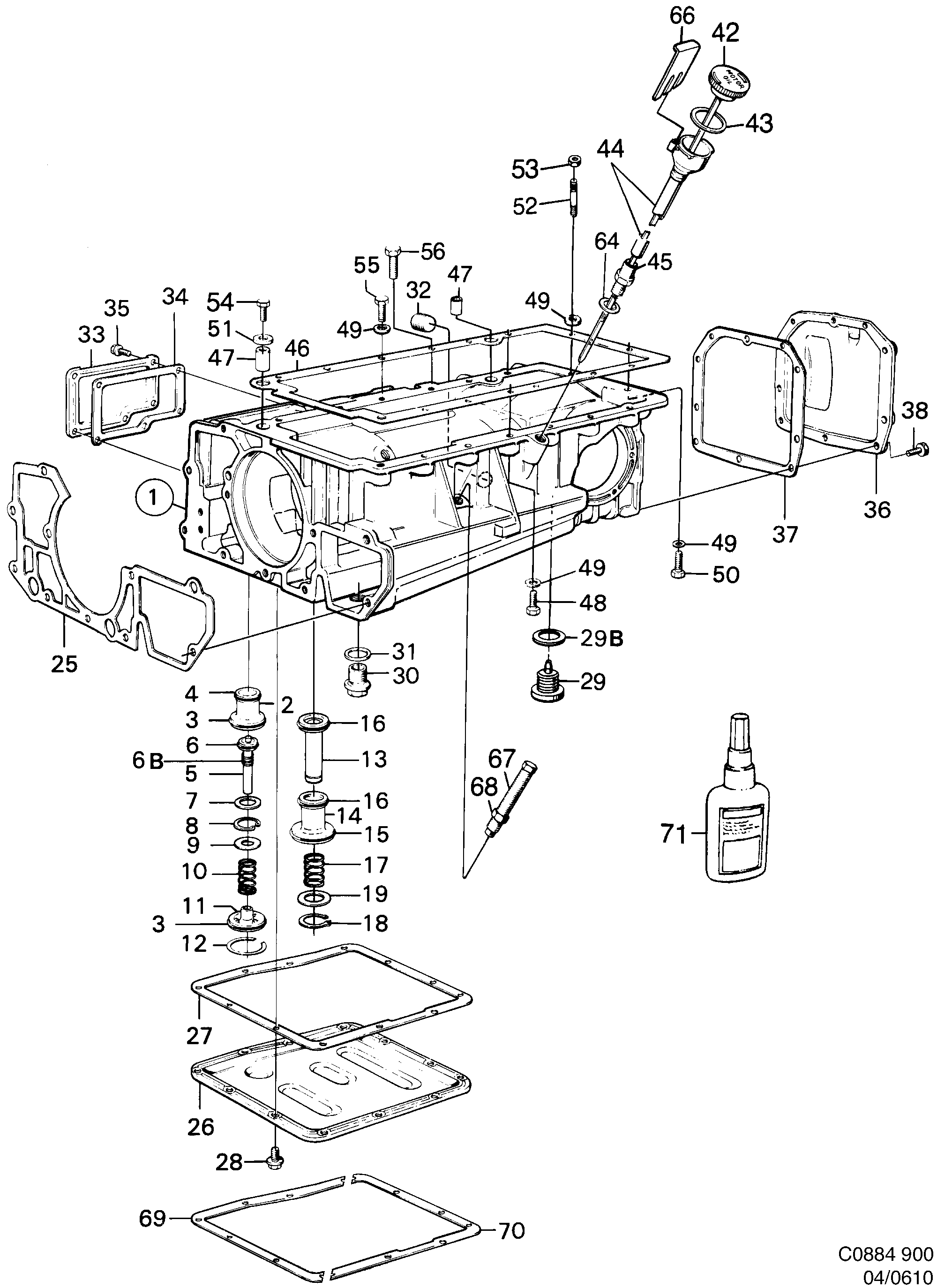

610: Transmission - Boîte de vitesses, automatique - Servoassistance, couvercles, bouchons
(1986 - 1989 | A) | Pour 900 (1986)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 7542277 Carter boîte vitesses GEAR BOX GA 33207,33308 | 1 | |||
| 1 | 7542269 Carter boîte vitesses GEAR BOX GA 43407 | 1 | |||
| 1 | 7554264 Carter boîte vitesses GEAR BOX GA 53307,53408 | 1 | |||
| 2 | 7542293 Piston GEAR BOX GA 33207,33308 | 1 | |||
| 2 | 7542285 Piston GEAR BOX GA 43407 | 1 | |||
| 2 | 9335738 Piston GEAR BOX GA 53307,53408 | 1 | |||
| 3 | 8706111 Joint torique | 2 | |||
| 4 | 8325151 Joint torique | 1 | |||
| 5 | 7542301 Axe palier | 1 | |||
| 6 | 7542954 Joint | 1 | |||
| 6B | 9335753 Ressort | 1 | |||
| 7 | 9335787 Plateau pression | 1 | |||
| 8 | 9335795 Anneau verrouillage | 1 | |||
| 9 | 9335803 Plateau pression | 1 | |||
| 10 | 9335811 Ressort | 1 | |||
| 11 | 9335829 Piston | 1 | |||
| 12 | 9334806 Anneau verrouillage | 1 | |||
| 13 | 7542319 Piston | 1 | |||
| 14 | 7542327 Piston | 1 | |||
| 15 | 8709610 Joint torique | 1 | |||
| 16 | 8706129 Joint torique | 2 | |||
| 17 | 7542335 Ressort | 1 | |||
| 18 | 9348988 Anneau verrouillage | 1 | |||
| 19 | 9341330 Rondelle | 2 | |||
| 25 | 9334780 Joint | 1 | |||
| 26 | 9335449 Carter huile GA 33207,43407,53307 | 1 | |||
| 26 | 4029476 Carter huile | 1 | |||
| 27 | 9335456 Joint GA33207,43407,53307 | 1 | |||
| 27 | 4029450 Joint | 1 | |||
| 28 | 8019903 7985930 Vis | 12 | |||
| 29 | 8717407 Bouchon vidange | 1 | |||
| 29B | 8717415 Joint | 1 | |||
| 30 | 8711871 8731762 Bouchon vidange | 1 | |||
| 31 | 8718439 Joint | 1 | |||
| 32 | 8710857 Tampon | 1 | |||
| 33 | 9335431 Couvercle | 1 | |||
| 34 | 7542665 Joint | 1 | |||
| 35 | 8019903 7985930 Vis | 5 | |||
| 36 | 8722035 Couvercle | 1 | |||
| 37 | 8714842 Joint -2002 | 1 | |||
| 38 | 8125197 Vis | 10 | |||
| 42 | 9361650 Jauge GEAR BOX GA 33207,33308 | 1 | |||
| 42 | 7514201 Jauge huile GEAR BOX GA 43407,53307 53408 | 1 | |||
| 43 | 9361544 55557303 Bague de garniture | 1 | |||
| 44 | 9368200 Rechargement d'huile | 1 | |||
| 45 | 9361452 Raccord | 1 | |||
| 46 | 7510241 Joint | 1 | |||
8781841 93165267 Instajoint 280 ML | X | ||||
| 47 | 8300725 Douille guide | 2 | |||
| 48 | 8083958 8125213 Vis | 7 | |||
| 49 | 8029985 92153033 Rondelle | 14 | |||
| 50 | 8082968 55562873 Vis | 1 | |||
| 51 | 7061328 Rondelle | 1 | |||
| 52 | 9346388 Vis 1986-1986 | 1 | |||
| 53 | 8074106 Ecrou 1986-1987 | 1 | |||
| 54 | 9346354 Vis | 1 | |||
| 55 | 9346362 Vis | 5 | |||
| 56 | 9346370 Vis | 1 | |||
| 64 | 9361627 Rondelle | 1 | |||
| 66 | 9362542 Plaque | 1 | |||
| 67 | 8706152 Vis réglage | 1 | |||
| 68 | 8706160 Ecrou | 1 | |||
| 69 | 4029500 Châssis | 1 | |||
| 70 | 4029518 Châssis | 1 | |||
| 71 | 7496284 Etanchéité filetages 50 ML | X | |||
9335563 Kit joints | X | ||||
