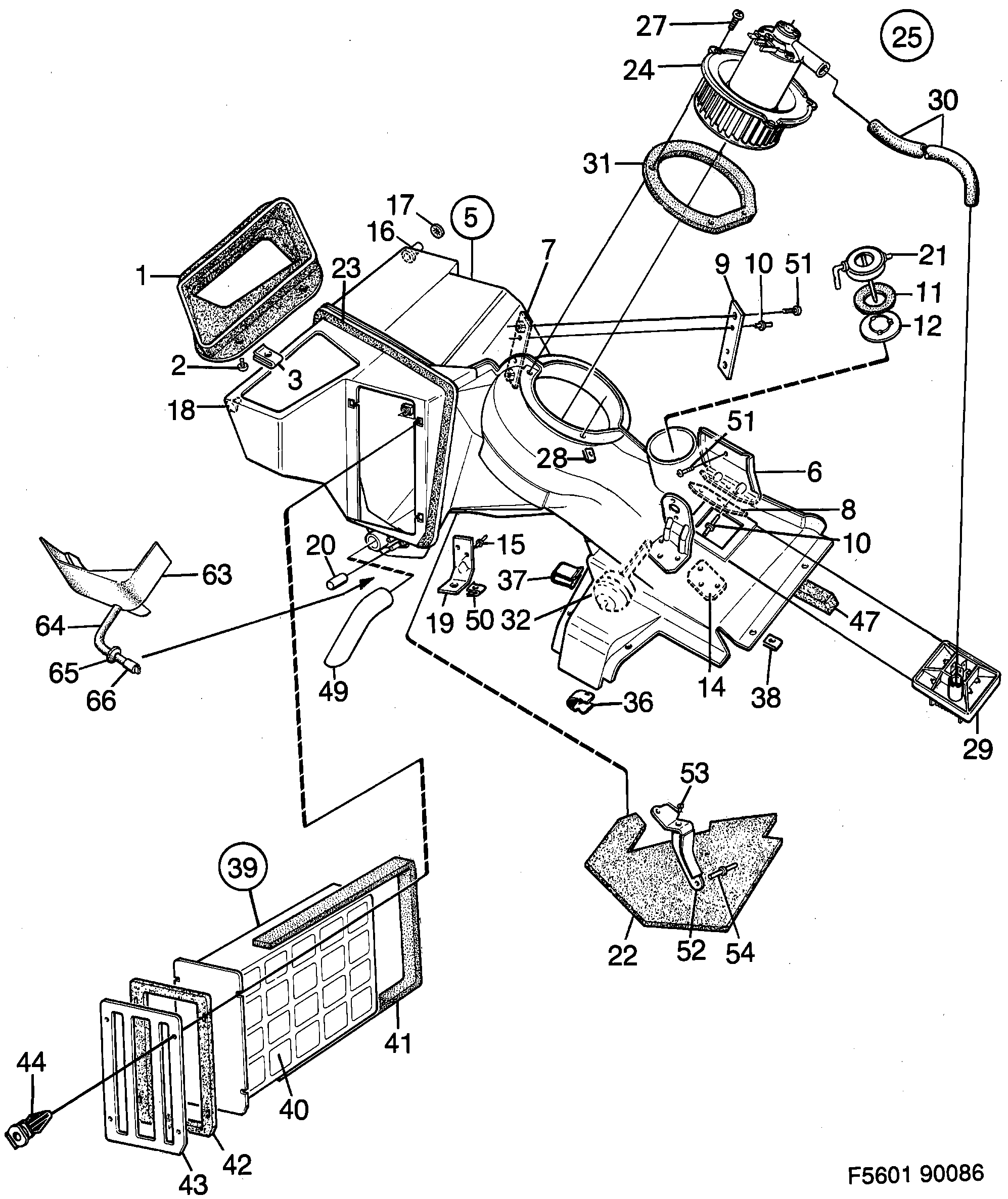

130: Chauffage et ventilation - Ventilateur - Filtre air
(1986 - 1989) | Pour 900 (1987)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 9400623 Prise air | 1 | |||
| 2 | 7922354 92153219 Vis | 4 | |||
| 3 | 9426909 Ecrou | 4 | |||
| 5 | 9481631 Centrale de chauffage 1986-1988 | 1 | |||
| 6 | 9400714 Console LH | 1 | |||
| 7 | 9461278 Console RH | 1 | |||
| 8 | 9417874 Tôle LH | 1 | |||
| 9 | 9461260 Tôle RH | 1 | |||
| 10 | 7972052 Rivet | 5 | |||
| 11 | 9417916 Joint | 1 | |||
| 12 | 9422767 Disque papillon | 1 | |||
| 14 | 9426008 Tôle | 1 | |||
| 15 | 7972045 Rivet | 2 | |||
| 16 | 9400805 Palier | 1 | |||
| 17 | 9442203 Collier serrage | 1 | |||
| 18 | 9417940 Tampon 1986-1987 | 1 | |||
| 19 | 9401282 Console | 1 | |||
| 20 | 9481912 Tampon | 2 | |||
| 21 | 9417908 Disque papillon | 1 | |||
| 22 | 9482175 Isolant | 1 | |||
| 23 | 9481789 Joint | 1 | |||
| 24 | 9481920 Ventilateur 1986-1987 | 1 | |||
| 27 | 7922735 Vis | 3 | |||
| 28 | 7968555 Ecrou d'agrafe | 3 | |||
| 29 | 9558784 Résistance | 1 | |||
| 30 | 8557001 Flexible | 1 | |||
| 31 | 9418070 Joint | 1 | |||
| 32 | |||||
| 36 | 9451253 Clip | 2 | |||
| 37 | 9462557 Clip | 1 | |||
| 38 | 9441239 Ecrou d'agrafe | 5 | |||
| 39 | 9479981 Filtre air | 1 | |||
| 40 | 9401126 Filtre habitacle | 1 | |||
| 41 | 9418054 Joint | 1 | |||
| 42 | 9481060 Joint | 1 | |||
| 43 | 9418062 Couvercle | 1 | |||
| 44 | 9479973 Pince serrage | 4 | |||
| 47 | 9401159 Joint | 1 | |||
| 49 | 9401167 Tuyau drainage -1989 | 1 | |||
| 50 | 7933682 Ecrou ressort | 1 | |||
| 51 | 8059602 8059610 Vis | 3 | |||
| 52 | 9432964 Console | 1 | |||
| 53 | 8209009 9388588 Butée | 1 | |||
| 54 | 7961709 Rivet | 2 | |||
| 63 | 9481839 Jeu | 1 | |||
| 64 | 9363276 Flexible carburant | 1 | |||
| 65 | 8245888 Tampon | 1 | |||
| 66 | 9481904 Valve antiretour | 1 | |||
