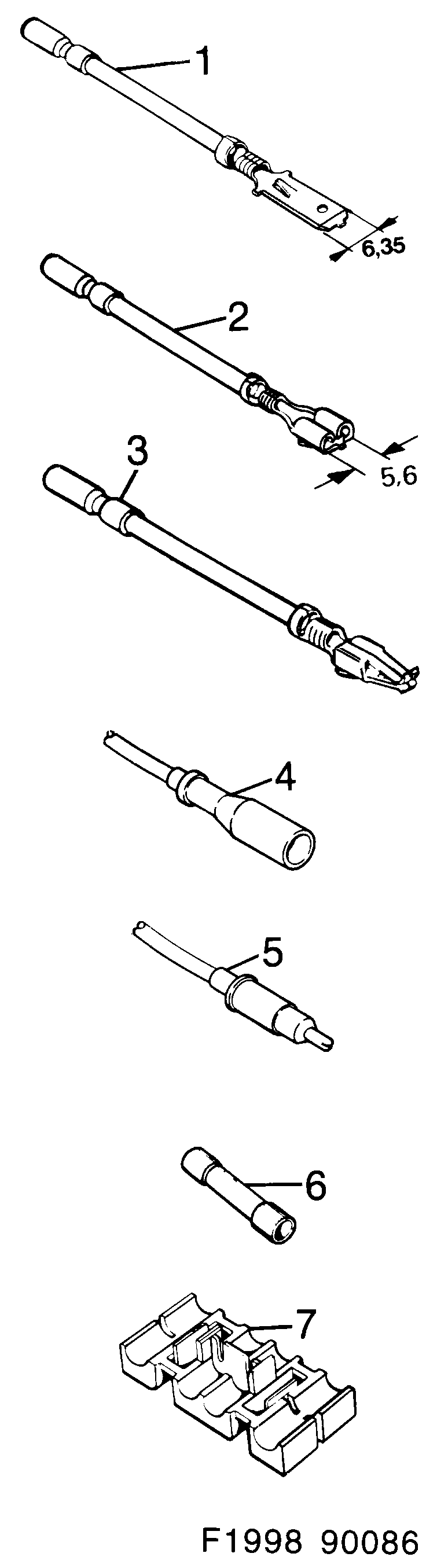

1090: Système électrique, boîte de connexion - Conduites et fusibles - Cosse câble
(1987) | Pour 900 (1987)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8522542 Cosse Code coleur vert (section 1,5 MM2). | FOR FUSE BOX JOINT PIECE,FOR CONTACT HOUSING,7155104 7155120,7342900,8558546 | X | |
| 2 | 8522567 Cosse Code coleur bleu (section 1,5-2,5 MM2). | FOR JOINT PIECE FOR CONTACT HOUSING, 8516890 | X | |
| 3 | 8522617 Cosse Code coleur vert (section 1,5 MM2). | JOINT PIECE FOR CONTACT HOUSING 8533821,8539363,8582082 8586802,8593899,8593907 8593915,8593923,8593949 8597064 | X | |
| 4 | 7874498 Connexion FOR JOINT PIECE,AC COMPRESSOR,CENTRAL LOCK FOR CONTACT HOUSING 9503277,9503319,9503418 9503434,9503475,9501685 9519679 | X | |
| 5 | 7874506 Connexion FOR JOINT PIECE,FOR CONTACT HOUSING,9503327 9503327,9503426,9506668 | X | |
| 6 | 7155146 Douille raccord Code coleur bleu (section 1,5-2,5 MM2). | 40/253 188 007 | X | |
| 6 | 7155203 Douille raccord Code coleur rouge (section 0,3-1,5 MM2). | 40/253 164 008 | X | |
| 6 | 7155633 Douille raccord Code coleur jaune (section 3,0-6,0 MM2). | 40/253 221 006 | X | |
| 7 | 8521668 Joint câble AREA 0,8-2,1 MM2 | X |
