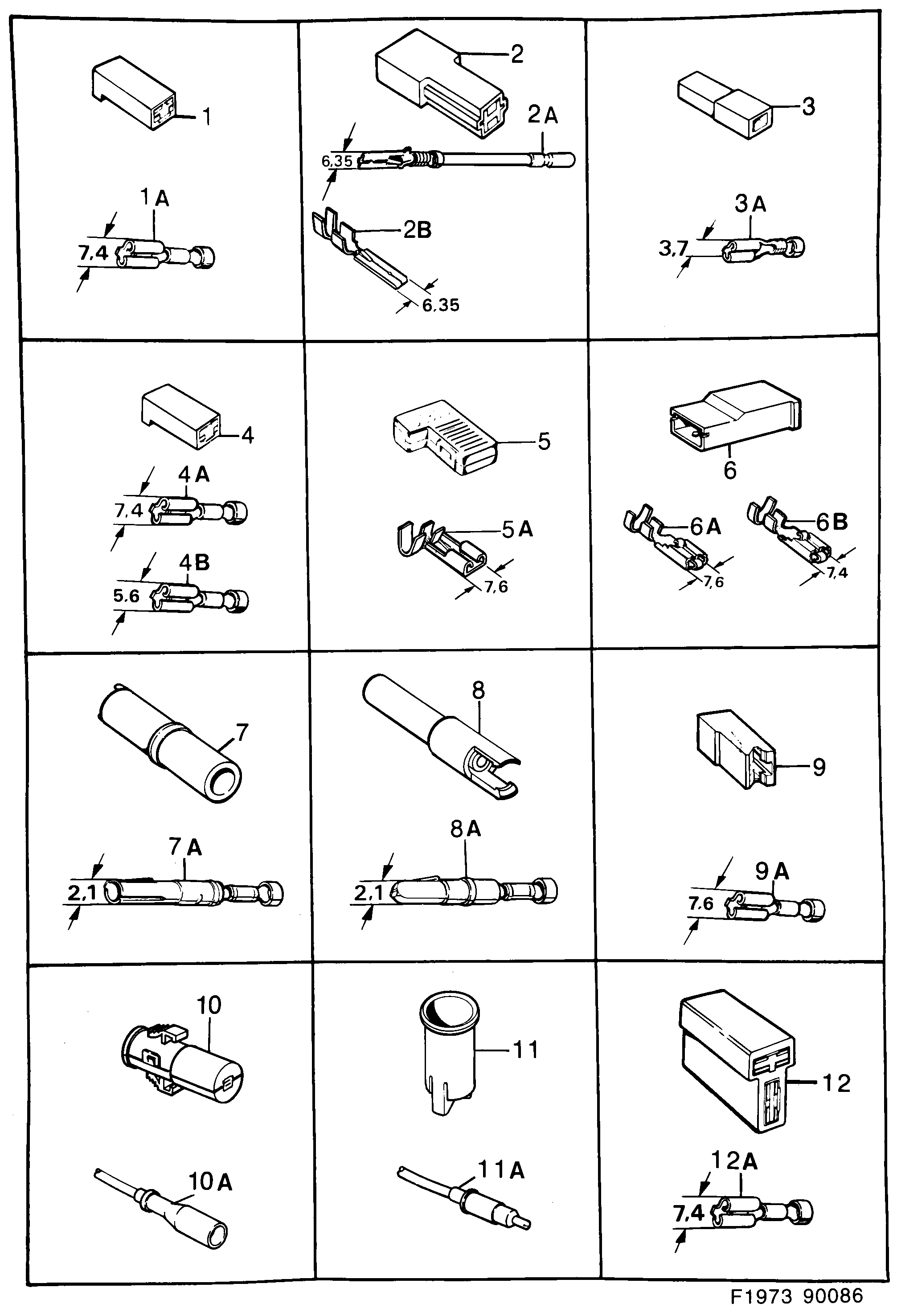

310: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1987) | Pour 900 (1987)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155112 Boîtier contact 1-poles, douille | JOINT PIECE,RELAY FUEL PUMP,IDLE COMPENSATOR, EL-WINDOW REGULATOR | X | |
| 1A | 7971708 Cosse AREA,0,5-1,5 MM2 | X | |
| 1A | 8583379 Cosse AREA,0,5-1,5 MM2 | X | |
| 1A | 8582454 Cosse AREA,0,5-1,5 MM2 | X | |
| 1A | 7155153 Cosse AREA,0,8-2,1 MM2 | X | |
| 2 | 7155120 Boîtier contact 1-poles, broche | JOINT PIECE,APC PUMP RELAY,FUSE BOX | X | |
| 2A | 8522542 Cosse AREA,1,5 MM2 | X | |
| 2B | 8582637 Cosse AREA,0,8-2,1 MM2 | X | |
| 3 | 8530115 Boîtier contact 1-poles, broche | LOUDSPEAKER | X | |
| 3A | 8530107 Cosse AREA,0,5-1,0 MM2 | X | |
| 4 | 8533184 Boîtier contact 1-poles, broche | LOUDSPEAKER,STARTER | X | |
| 4A | 8530107 Cosse AREA,0,5-1,0 MM2 | X | |
| 4B | 8533028 8582439 Cosse AREA,0,5-1,5 MM2 | X | |
| 4B | 8582439 Cosse AREA,0,5-1,5 MM2 | X | |
| 5 | 8521692 Boîtier contact 1-poles, douille | WINDOW REGULATOR THROTTLE SENSOR AC,HAND BRAKE,IGNITION COIL THERMO SWITCH,JOINT PIECE,AC RECIRKULATION VALVE,IGNITION LOCK | X | |
| 5A | 8521676 Cosse AREA,0,5-1,5 MM2 | X | |
| 5A | 8582421 Cosse AREA,0,5-1,5 MM2 | X | |
| 5A | 8521684 Cosse AREA,1,0-2,5 MM2 | X | |
| 6 | 8541229 Douille d'isolation 1-poles, broche | JOINT PIECE,LUGGAGE COMPARTMENT LIGHT,TAIL LIGHT,ALTERNATOR,MAIN SWITCH | X | |
| 6A | 8541203 Cosse AREA,0,5-1,0 MM2 | X | |
| 6B | 8582405 Cosse AREA,0,5-1,5 MM2 | X | |
| 6B | 8541211 Cosse AREA,2,5-4,0 MM2 | X | |
| 7 | 8516932 Boîtier contact 1-poles, douille | JOINT PIECE | X | |
| 7A | 8522583 Cosse AREA,0,8-3,4 MM2 | X | |
| 8 | 8516940 Boîtier contact 1-poles, broche | GEAR BOX JOIN PIECE | X | |
| 8A | 8503161 Cosse AREA,0,5-1,0 MM2 | X | |
| 9 | 8521544 Boîtier contact 1-poles, douille | JOINT PIECE | X | |
| 9A | 8559205 Cosse AREA,4,0-6,0 MM2 | X | |
| 10 | 9503418 Boîte connexion 1-poles, douille | JOINT PIECE,AC COMPRES- SOR | X | |
| 10A | 7874498 Connexion | X | |
| 11 | 9503426 Boîte connexion 1-poles, broche | JOINT PIECE | X | |
| 11A | 7874506 Connexion | X | |
| 12 | 7155096 Boîte connexion 2-poles, douille | ASH TRAY,JOINT PIECE SPOTLIGHT | X | |
| 12A | 7155153 Cosse AREA,0,8-2,1 MM2 | X | |
| 12A | 8582454 Cosse AREA,0,5-1,5 MM2 | X |
