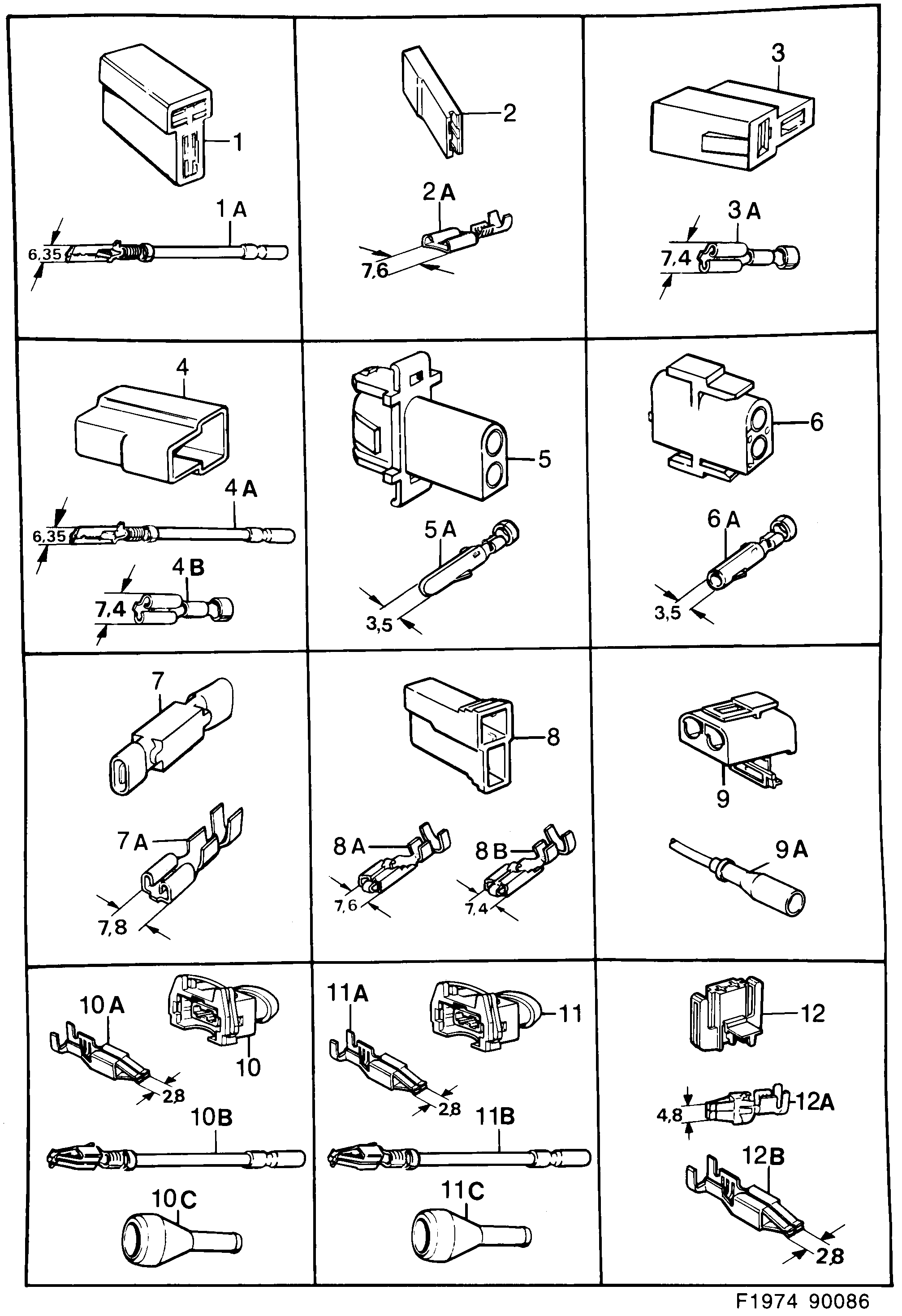

340: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1987) | Pour 900 (1987)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155104 Boîtier contact 2-poles, broches | JOINT PIECE | X | |
| 1A | 8522542 Cosse AREA,1,5 MM2 | X | |
| 2 | 8516916 Isolant 2-poles, douille | JOINT PIECE,BRAKE LIGHT SWITCH,BACK-UP LIGHT, THERMO SWITCH,STARTER VACUUM SWITCH,SOLENOID VALVE IDLE COMPENSATION FUSE,INTERIOR LIGHT THEFT ALARM,ELECTRONIC UNIT SPEED CONTROL EL-PAD | X | |
| 2A | 8514036 Cosse AREA,0,3-0,8 MM2 | X | |
| 2A | 8514028 7155716 Cosse AREA,0,3-0,8 MM2 | X | |
| 2A | 7155716 Cosse AREA,0,5-1,5 MM2 | X | |
| 2A | 7155039 Cosse AREA,1,0-2,5 MM2 | X | |
| 2A | 8559205 Cosse AREA,4,0-6,0 MM2 | X | |
| 3 | 8558538 Boîtier contact 2-poles, douille | FUEL PUMP,FUSE BOX | X | |
| 3A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 3A | 7968068 Cosse AREA,4,0-6,0 MM2 | X | |
| 4 | 8558546 Boîtier contact 2-poles, douille | JOINT PIECE,FUSE BOX | X | |
| 4A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 4B | 8516957 Cosse AREA,4,0-6,0 MM2 | X | |
| 5 | 8561623 Boîtier contact 2-poles, broches | JOINT PIECE,ELECTRIC PAD,NUMBER PLATE LIGHT, CENTRAL LOCK | X | |
| 5A | 8544314 8582603 Cosse AREA,0,5-2,0 MM2 | X | |
| 5A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 6 | 8561631 Boîte connexion 2-poles, broches | JOINT PIECE,ELECTRIC PAD | X | |
| 6A | 8544298 8582595 Cosse AREA,0,5-2,0 MM2 | X | |
| 7 | 8530966 Diode 2-poles, broches | DIOD HOLDER | X | |
| 7A | 7155716 Cosse AREA,0,4-1,0 MM2 | X | |
| 8 | 8574949 12790282 Boîtier contact 2-poles, douille | CIGARETTE LIGHTER | X | |
| 8A | 8541203 Cosse AREA,0,5-1,5 MM2 | X | |
| 8B | 8541211 Cosse AREA,2,5-4,0 MM2 | X | |
| 9 | 9503319 Boîtier contact 2-poles, douille | JOINT PIECE,VACUUM SWITCH APC,AC FAN MOTOR,WASHER MOTOR SOLENOID VALVE AC,MOTOR COOLING FAN,BRAKE FLUID LEVEL,FUEL PUMP,WINDOW REGULATOR FRONT,CENTRAL LOCK | X | |
| 9A | 7874498 Connexion | X | |
| 10 | 8593899 Boîtier contact 2-poles, douille | AUXILIARY AIR VALVE THERMO TIME SWITCH, GIUDE PRESSURE VALVE STARTER VALVE,INJECTION VALVE,JOINT PIECE,FUEL SHUT OFF VALVE,TIMING VALVE | X | |
| 10A | 9120668 12789796 Cosse AREA,0,75,-1,5 MM2 | X | |
| 10B | 8522617 Cosse AREA,1,5 MM2 | X | |
| 10C | 8571382 Protection | X | |
| 11 | 8593915 Boîtier contact 2-poles, douille | JOINT PIECE TEMP SENSOR INTERIOR LIGHT | X | |
| 11A | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X | |
| 11B | 8522617 Cosse AREA,1,5 MM2 | X | |
| 11C | 8571382 Protection | X | |
| 12 | 9124157 30520661 Boîtier contact 2-poles, douille | JOINT PIECE,SWITCH | X | |
| 12A | 9120775 30520555 Cosse AREA,0,5-1,0 MM2 | X | |
| 12B | 9120783 30520556 Cosse AREA,1,0-2,5 MM2 | X | |
| 12B | 9521980 30520556 Cosse AREA,1,5-2,5 MM2 | X |
