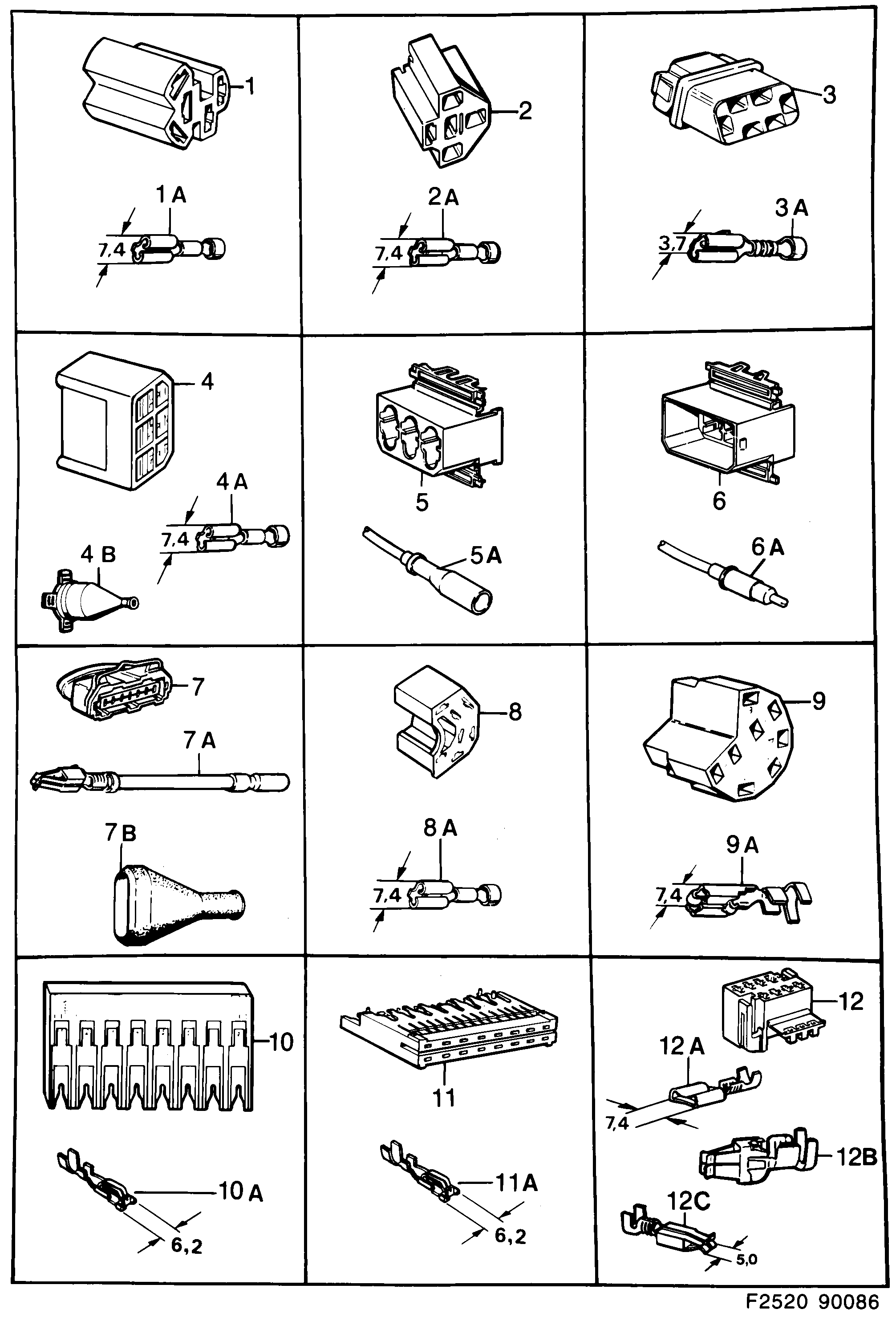

430: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1987) | Pour 900 (1987)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8544397 Boîtier contact 5-poles, douille | SWITCH HEATING FAN | X | |
| 1A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 2 | 8533697 Boîtier contact 5-poles, douille | RELAY COOLING FAN RESISTOR HEATING FAN, SPEED CONTROL,TIME RELAY INTERIOR,RELAY WINDOW REGULATOR,RELAY FLASHER,IGNITION LOCK JOINT PIECE,RELAY SPEED CONTROL | X | |
| 2A | 8582454 Cosse AREA,0,5-1,5 MM2 | X | |
| 2A | 8582397 Cosse AREA,1,2-2,5 MM2 | X | |
| 3 | 8540569 Boîtier contact 6-poles, douille | SWITCH ELECTRIC MIRROR | X | |
| 3A | 8509846 8522575 Cosse AREA,0,5-1,4 MM2 | X | |
| 4 | 8552200 Boîtier contact 6-poles, douille | PARKING LIGHT,DIRECTION LIGHT | X | |
| 4A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 4B | 8552721 Protège-câble | X | |
| 5 | 9503475 Boîtier contact 6-poles, douille | JOINT PIECE | X | |
| 5A | 7874498 Connexion | X | |
| 6 | 9506668 Boîtier contact 6-poles, broche | JOINT PIECE | X | |
| 6A | 7874506 Connexion | X | |
| 7 | 8593949 Boîtier contact 7-poles, douille | ELECTRONIC UNIT IGNITION SYSTEM | X | |
| 7A | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 7B | 8574048 Protection | X | |
| 8 | 8533705 Boîtier contact 7-poles, douille | SWITCH WINDSHIELD WIPER | X | |
| 8A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 8A | 7968068 Cosse AREA,4,0-6,0 MM2 | X | |
| 9 | 8544363 Boîtier contact 8-poles, douille | SWITCH LIGHT | X | |
| 9A | 8541203 Cosse AREA,0,5-1,5 MM2 | X | |
| 9A | 8541211 Cosse AREA,2,5-4,0 MM2 | X | |
| 10 | 8568735 Boîtier contact 8-poles, douille | TAIL LIGHT | X | |
| 10A | 8568768 Cosse AREA,0,5-1,0 MM2 | X | |
| 11 | 8568842 Boîtier contact 8-poles, douille | FOR 8567735,TAIL LIGHT | X | |
| 11A | 8568768 Cosse AREA,0,5-1,0 MM2 | X | |
| 12 | 9124090 Boîtier contact 8-poles, douille | MOTOR PASSIVE SEAT BELT ELECTRONIC UNIT CENTRAL LOCK,CONTROL UNIT ANTI THEFT ALARM,EL-SUN ROOF JOINT PIECE | X | |
| 12A | 7971708 Cosse AREA,0,5-1,5 MM2 | X | |
| 12A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 12B | 9120783 30520556 Cosse AREA,1,0-2,5 MM2 | X | |
| 12B | 9120775 30520555 Cosse AREA,0,5-1,0 MM2 | X | |
| 12B | 9120791 30520557 Cosse AREA,2,5-4,0 MM2 | X | |
| 12C | 9120767 30520554 Cosse AREA,4,0-6,0 MM2 | X |
