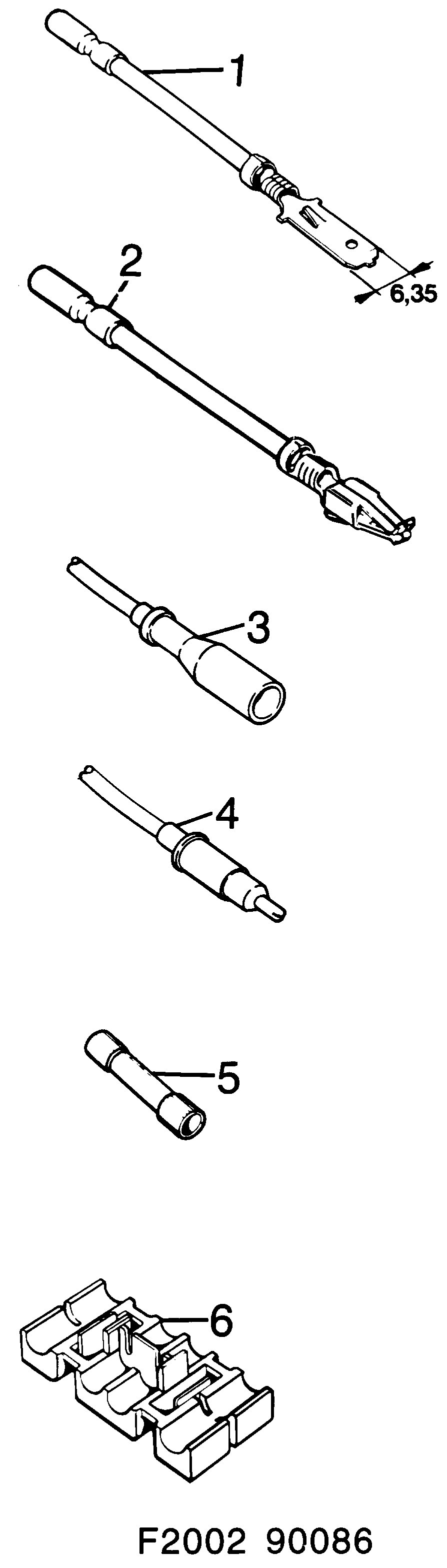

1210: Système électrique, boîte de connexion - Conduites et fusibles - Cosse câble
(1989) | Pour 900 (1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8522542 Cosse Code coleur vert (section 1,5 MM2). | FOR FUSE BOX JOINT PIECE,FOR CONTACT HOUSING,7155104 7155120,7342900,8558546 | X | |
| 2 | 8522617 Cosse Code coleur vert (section 1,5 MM2). | JOINT PIECE,FOR CONTACT HOUSING,8533821 | X | |
| 3 | 7874498 Connexion FOR AC COMPRESSOR,TAIL LIGHT,CENTRAL LOCK, PASSIVE SEAT BELTS JOINT PIECE TRUNK LID JOINT PIECE CABLE NET- WORK REAR DOOR/CENTRAL LOCK,MOTOR COOLING FAN AC,FOR CONTACT HOUSING | X | |
| 4 | 7874506 Connexion FOR JOINT PIECE,CENTRAL LOCK,EL-MIRROR,WINDOW REGULATOR,EL-HEATED MIRROR,PASSIVE SEAT BELT,FOR CONTACT HOUSING,9503327,9503327 9503426,9506668 | X | |
| 5 | 7155146 Douille raccord Code coleur bleu (section 1,5-2,5 MM2). | 40/253 188 007 | X | |
| 5 | 7155203 Douille raccord Code coleur rouge (section 0,3-1,5 MM2). | 40/253 164 008 | X | |
| 5 | 7155633 Douille raccord Code coleur jaune (section 3,0-6,0 MM2). | 40/253 221 006 | X | |
| 6 | 8521668 Joint câble AREA 0,8-2,1 MM2 | X |
