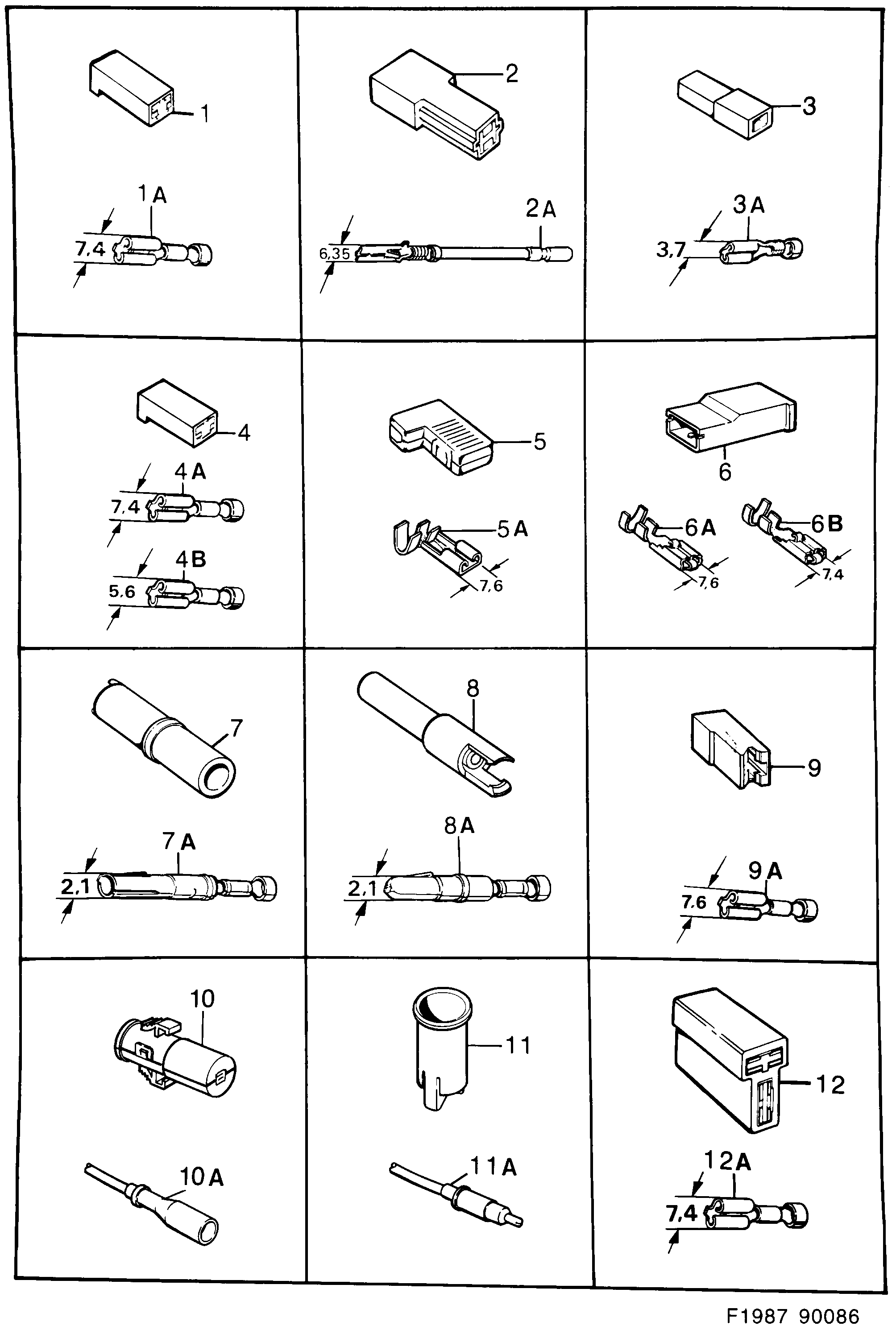

760: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1989) | Pour 900 (1989)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155112 Boîtier contact 1-poles, douille | REAR DEMIST,FUSE BOX EL-WINDOW REGULATOR, BELT-KEY WARNING,BRAKE PEDAL SWITCH SPEED CONTROL | X | |
| 1A | 7971708 Cosse AREA,0,5-1,5 MM2 | X | |
| 1A | 8583379 Cosse AREA,0,5-1,5 MM2 | X | |
| 1A | 7155153 Cosse AREA,0,8-2,1 MM2 | X | |
| 2 | 7155120 Boîtier contact 1-poles, broche | APC,FUSE BOX,EL-PAD EL-HEATED MIRROR, BY-PASS JOINT PIECE CABLE NETWORK DOOR/REAR CABLE NETWORK NUMBER- PLATE,BRAKE LIGHT RELAY LIGHT,DIM LIGHT EL-CENTRAL,SPEED CONT- ROL | X | |
| 2A | 8522542 Cosse AREA,1,5 MM2 | X | |
| 3 | 8530115 Boîtier contact 1-poles, broche | LOUDSPEAKER | X | |
| 3A | 8530107 Cosse AREA,0,5-1,0 MM2 | X | |
| 4 | 8533184 Boîtier contact 1-poles, broche | LOUDSPEAKER,STARTER | X | |
| 4A | 8530107 Cosse AREA,0,5-1,0 MM2 | X | |
| 4B | 8533028 8582439 Cosse AREA,0,5-1,5 MM2 | X | |
| 4B | 8582439 Cosse AREA,0,5-1,5 MM2 | X | |
| 5 | 8521692 Boîtier contact 1-poles, douille | WINDOW REGULATOR,IDLE COMPENSATION,IGNITION COIL,THERMO SWITCH IGNITION LOCK,IDLE COMPENSATION,SOLENOID VALVE IDLE COMPENSATION AC | X | |
| 5A | 8521676 Cosse AREA,0,5-1,5 MM2 | X | |
| 5A | 8582421 Cosse AREA,0,5-1,5 MM2 | X | |
| 5A | 8521684 Cosse AREA,1,0-2,5 MM2 | X | |
| 6 | 8541229 Douille d'isolation 1-poles, broche | JOINT PIECE,LUGGAGE COMPARTMENT LIGHT,TAIL LIGHT,ALTERNATOR,MAIN SWITCH,THROTTLE HOUSE VENTILATION,FUEL SHUT OFF,SWITCH LUGGAGE COMPARTMENT,BY-PASS LIGHT GLOVE BOX,MAIN SWITCH FAN,SWITCH AC | X | |
| 6A | 8541203 Cosse AREA,0,5-1,0 MM2 | X | |
| 6B | 8582405 Cosse AREA,0,5-1,5 MM2 | X | |
| 6B | 8560476 Cosse AREA,0,7-1,0 MM2 | X | |
| 6B | 8541211 Cosse AREA,2,5-4,0 MM2 | X | |
| 7 | 8516932 Boîtier contact 1-poles, douille | IDLE COMPENSATION,HIGH MOUNTED STOP LIGHT, REAR FOG LIGHT | X | |
| 7A | 8522583 Cosse AREA,0,8-3,4 MM2 | X | |
| 8 | 8516940 Boîtier contact 1-poles, broche | GEAR BOX IDLE COMPEN- SATION | X | |
| 8A | 8503161 Cosse AREA,0,5-1,0 MM2 | X | |
| 9 | 8521544 Boîtier contact 1-poles, douille | STARTER,REOSTAT EL-PAD | X | |
| 9A | 8559205 Cosse AREA,4,0-6,0 MM2 | X | |
| 10 | 9503418 Boîte connexion 1-poles, douille | AC COMPRESSOR,EL-HEATED MIRROR,JOINT PIECE FUEL PUMP | X | |
| 10A | 7874498 Connexion | X | |
| 11 | 9503426 Boîte connexion 1-poles, broche | JOINT PIECE CABLE NET- WORK AC | X | |
| 11A | 7874506 Connexion | X | |
| 12 | 7155096 Boîte connexion 2-poles, douille | ASH TRAY,SPOTLIGHT TEST CONNECTION LAMBDA, SWITCH BRAKE LIGHT,FAN EL-SUN ROOF,COMBINED INSTRUMENT | X | |
| 12A | 7155153 Cosse AREA,0,8-2,1 MM2 | X | |
| 12A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 12A | 8582454 Cosse AREA,0,5-1,5 MM2 | X |
