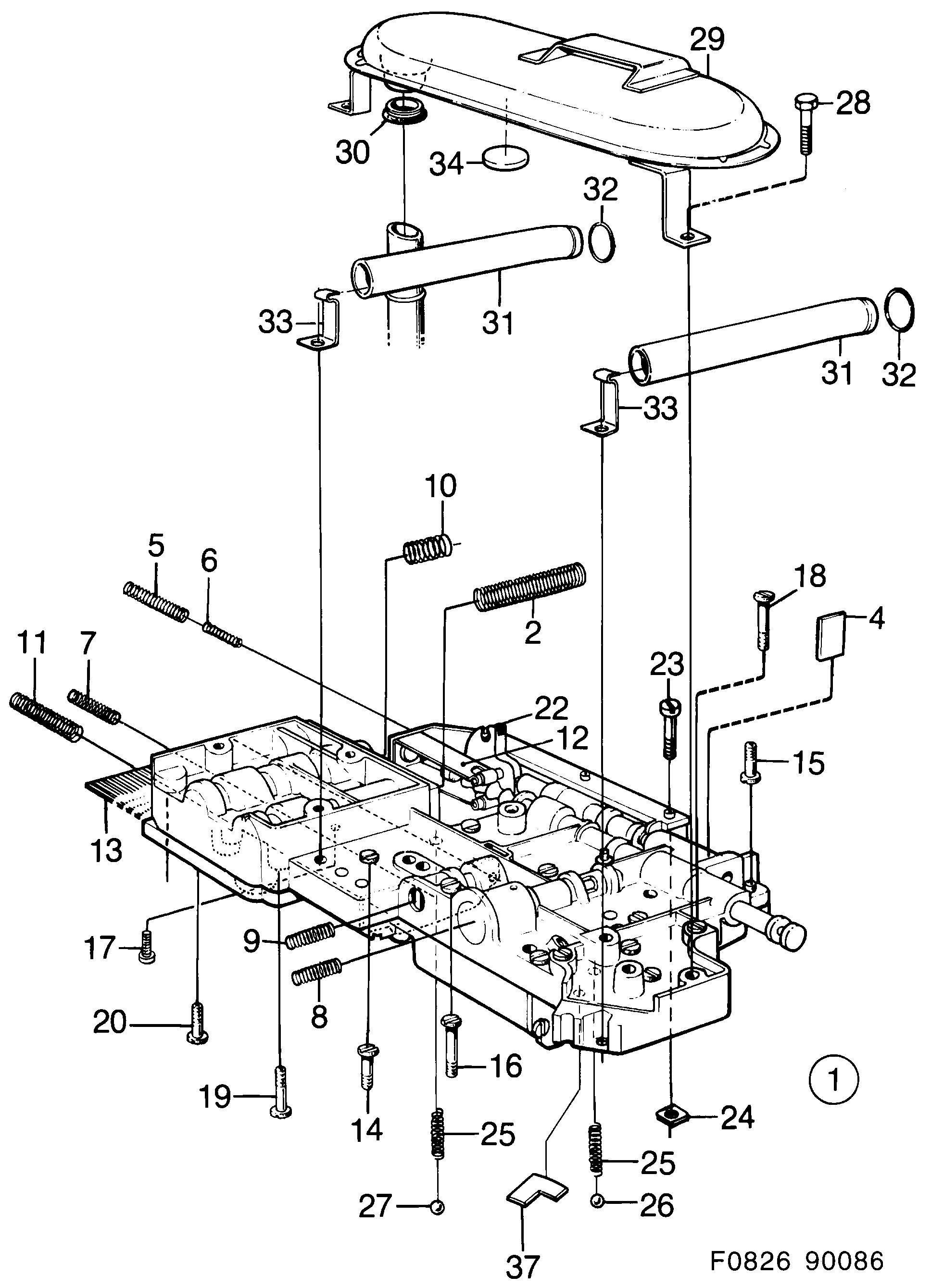

670: Transmission - Boîte de vitesses, automatique - Système de contrôle - 1ère partie
(1986 - 1989 | A) | Pour 900 (1989)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 7542517 Carter soupape GEAR BOX GA 33207,43407 GA 33308 | 1 | |||
| 1 | 7542525 Carter soupape GEAR BOX GA 53307,53408 | 1 | |||
| 2 | 7542533 Ressort | 1 | |||
| 4 | 8707747 Butée | 1 | |||
| 5 | 8707721 Ressort | 1 | |||
| 6 | 8707754 Ressort | 1 | |||
| 7 | 8707929 Ressort | 1 | |||
| 8 | 7542541 Ressort MARKED: GREEN | 1 | |||
| 8 | 7542574 Ressort MARKED: YELLOW | 1 | |||
| 8 | 7542558 Ressort ALT. MARKED: RED | 1 | |||
| 8 | 7542566 Ressort ALT. MARKED: ORANGE | 1 | |||
| 9 | 7542830 Ressort GEAR BOX GA 33207,43407 GA 33308 | 1 | |||
| 9 | 8707788 Ressort GEAR BOX GA 53307,53408 | 1 | |||
| 10 | 7542822 Ressort | 1 | |||
| 11 | 8707952 Ressort | 1 | |||
| 12 | 7511371 Console | 1 | |||
| 13 | 7546252 Plaque | 1 | |||
| 14 | 8708026 Vis | 1 | |||
| 15 | 8707887 Vis | 1 | |||
| 16 | 7542616 Vis | 1 | |||
| 17 | 7542624 Vis | 1 | |||
| 18 | 8709479 Vis | 2 | |||
| 19 | 8708026 Vis | 6 | |||
| 20 | 8707887 Vis | 6 | |||
| 22 | 9300286 Came | 1 | |||
| 23 | 9364431 Vis | 2 | |||
| 24 | 9317439 Ecrou | 2 | |||
| 25 | 7542590 Ressort | 2 | |||
| 26 | 8705691 Bille | 1 | |||
| 27 | 7542608 Bille | 1 | |||
| 28 | 8708695 Vis | 1 | |||
| 29 | 7544125 9317348 Filtre huile | 1 | |||
| 30 | 9317348 Joint | 1 | |||
| 31 | 9361064 Tuyau | 2 | |||
| 32 | 8705733 Joint torique | 2 | |||
| 33 | 9361072 Clip | 2 | |||
| 34 | 8708414 Aimant | 1 | |||
| 37 | 7546690 Clip | 1 | |||
| 37 | 7547946 Clip | 1 | |||
7542681 Jeu ressorts GEAR BOX GA 33207,43407 GA 33308 | X | ||||
7542699 Jeu ressorts GEAR BOX GA 53307,53408 | X | ||||
