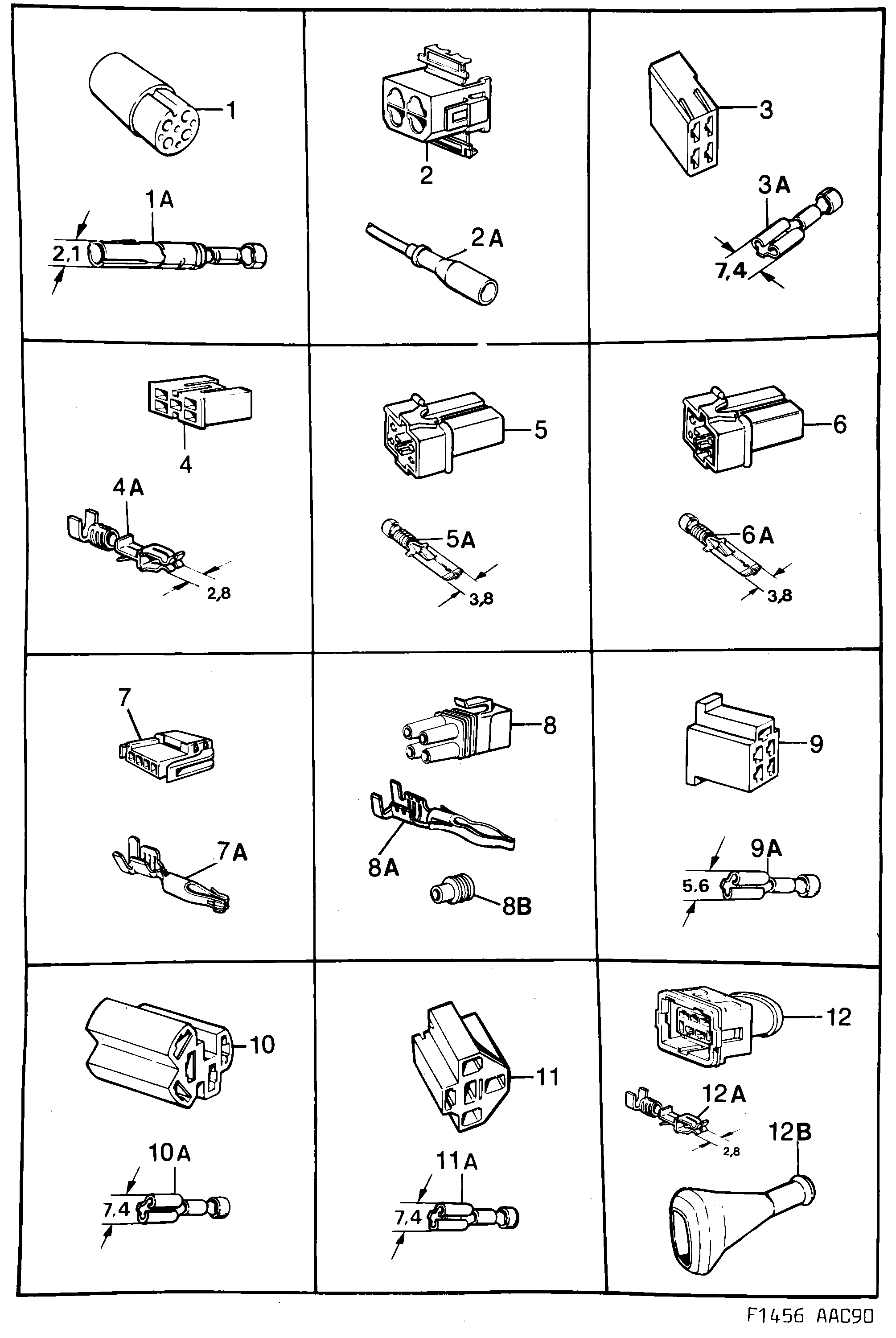

230: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1990) | Pour 900 (1990)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8530099 Boîtier contact 4-poles, douille | ELECTRIC MIRROR,JOINT PIECE CABLE HARNESS REAR/REAR DOORS | X | |
| 1A | 8522583 Cosse AREA,0,8-3,4 MM2 | X | |
| 2 | 9503434 Boîtier contact 4-poles, douille | JOINT PIECE CABLE HAR- NESS INSTRUMENTS/DOORS FRONT,FUEL PUMP | X | |
| 2A | 8547804 Bloc connexion AREA 2,5-4,0 MM2 | X | |
| 3 | 8521536 Boîtier contact 4-poles, douille | TEST CONNECTION EZK | X | |
| 3A | 8522534 Cosse AREA,1,0-2,5 MM2 | X | |
| 4 | 9123555 Boîtier contact 4-poles, douille | IGNITION PULS/CHECK ENGINE,CONTROL SPEED CONTROL,JOINT PIECE CABLE HARNESS ENGINE/ INSTRUMENTS,JOINT PIECE CABLE HARNESS SENSOR/ AIR-BAG | X | |
| 4A | 9120957 12789796 Cosse AREA,1,0-2,5 MM2 | X | |
| 4A | 4063087 Cosse AREA,1,0-2,5 MM2 | X | |
| 4A | 9120791 30520557 Cosse AREA,2,5-4,0 MM2 | X | |
| 5 | 9518739 Boîtier contact 4-poles, broche | JOINT PIECE CABLE HAR- NESS ENGINE/INSTRUMENT, JOINT PIECE CABLE HAR- NESS TRUNK DOOR/TRUNK DOOR,JOINT PIECE CABLE HARNESS AIR-BAG/SENSOR | X | |
| 5A | 9529074 Cosse AREA,0,5-1,0 MM2 | X | |
| 5A | 9552100 Cosse AREA,0,75-1,5 MM2 | X | |
| 6 | 4061495 Boîtier contact 4-poles, broche | JOINT PIECE CABLE HAR- NESS AIR-BAG/SENSOR | X | |
| 6A | 9529074 Cosse AREA,0,5-1,0 MM2 | X | |
| 6A | 9552100 Cosse AREA,0,75-1,5 MM2 | X | |
| 7 | 4061503 Boîtier contact 4-poles, douille | JOINT PIECE CABLE HAR- NESS AIR-BAG/SENSOR | X | |
| 7A | 9120957 12789796 Cosse AREA,1,0-2,5 MM2 | X | |
| 7A | 4063087 Cosse AREA,1,0-2,5 MM2 | X | |
| 8 | 9564584 Boîtier contact 4-poles, broche | AUXILIARY AIR VALVE | X | |
| 8A | 9564600 Cosse AREA,0,5-0,8 MM2 | X | |
| 8B | 9564592 Joint | X | |
| 9 | 8516890 Boîtier contact 5-poles, douille | WINDSHIELD WIPER MOTOR | X | |
| 9A | 8522567 Cosse AREA,0,5-1,0 MM2 | X | |
| 10 | 8544397 Boîtier contact 5-poles, douille | SWITCH HEATING FAN | X | |
| 10A | 8522534 Cosse AREA,0,5-1,5 MM2 | X | |
| 10A | 7968068 Cosse AREA,4,0-6,0 MM2 | X | |
| 11 | 8533697 Boîtier contact 5-poles, douille | RESISTOR HEATING FAN SPEED CONTROL,TIME RELAY INTERIOR LIGHT RELAY WINDOW REGULATOR RELAY FLASHER,IGNITION LOCK,RELAY CONVERTIBLE TIME RELAY INTERIOR LIGHT DELAY,ONE TOUCH | X | |
| 11A | 8522534 Cosse AREA,0,5-1,5 MM2 | X | |
| 11A | 7968068 Cosse AREA,4,0-6,0 MM2 | X | |
| 12 | 9519455 Boîtier contact 5-poles, douille | LEVEL ABS | X | |
| 12A | 9120957 12789796 Cosse AREA,1,0-2,5 MM2 | X | |
| 12B | 9519430 Protection | X |
