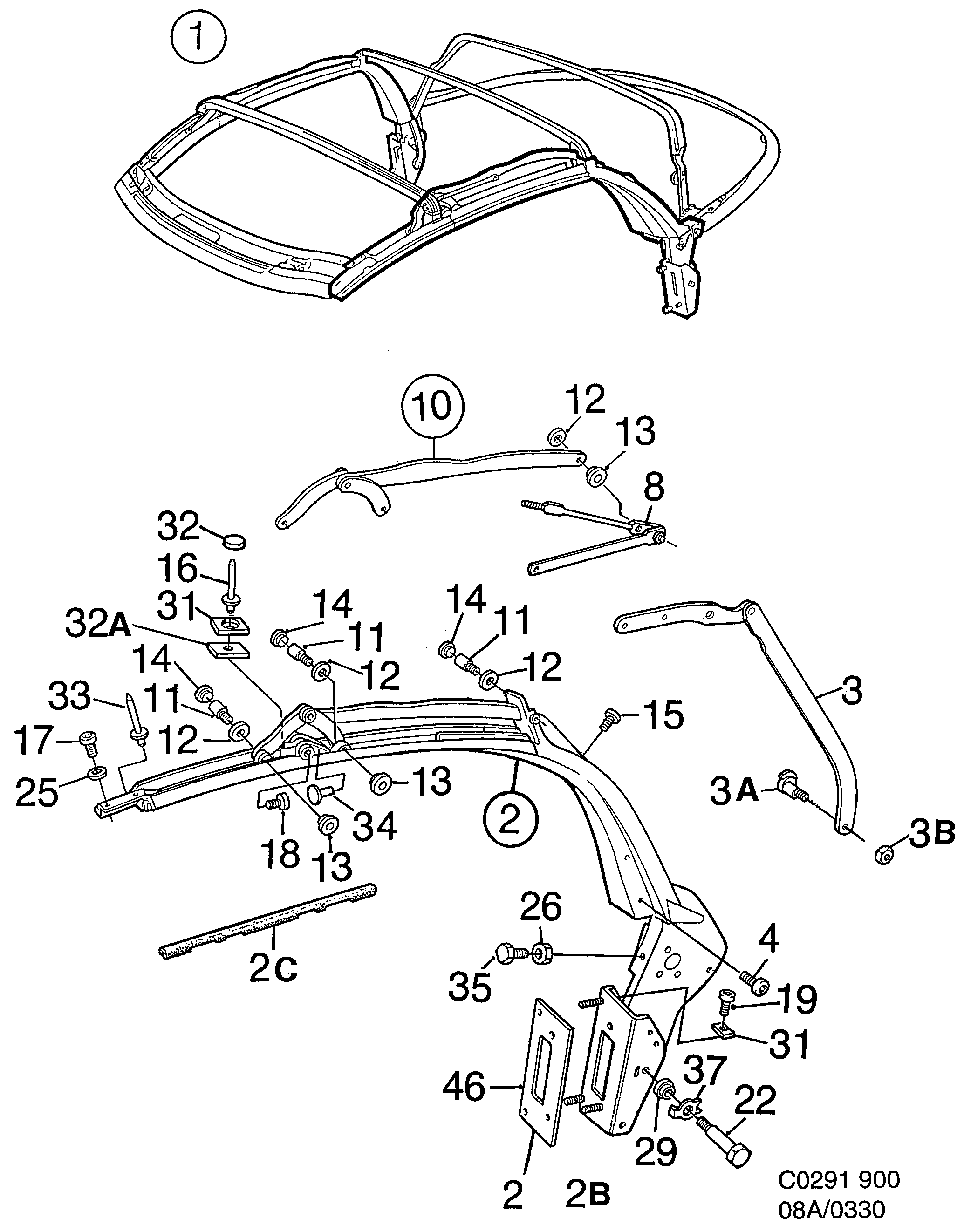

330: Carrosserie, extérieur - Corps de carrosserie - Longeron
(1994 - 1996 | CV) | Pour 900 (1996)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4556486 4857173 Support de capote | ||||
| 2 | 4858940 Longeron LH | 1 | |||
| 2 | 4858957 Longeron RH | 1 | |||
| 2B | 4696753 Console LH | 1 | |||
| 2B | 4696761 Console RH | 1 | |||
| 2C | 4557641 Lisse protection | 2 | |||
| 3 | 7497977 Articulation LH | 1 | |||
| 3 | 7497985 Articulation RH | 1 | |||
| 3A | 4856936 Vis | 2 | |||
| 3B | 7965767 55557005 Contre-écrou | 2 | |||
4856910 Plaque filetée | 2 | ||||
| 4 | 4555827 Boulon | 2 | |||
| 8 | |||||
| 10 | 7497936 Jeu de leviers LH | 1 | |||
| 10 | 7497944 Jeu de leviers RH | 1 | |||
| 11 | 4555868 Boulon | 3 | |||
| 12 | 4555991 Rondelle | 3 | |||
| 13 | 4556130 Bague | 3 | |||
| 14 | 4556239 Tampon | 3 | |||
| 15 | 4555629 Vis | 1 | |||
| 16 | 4555702 Rivet | 2 | |||
| 16 | 4555769 Vis | 2 | |||
| 17 | 4555710 Vis M6x16 | 3 | |||
| 18 | 4555728 Vis | 1 | |||
| 19 | 4555736 Vis | 2 | |||
| 22 | 4555876 Boulon | 1 | |||
| 25 | 4555942 Rondelle | 3 | |||
| 26 | 4556064 8074106 Ecrou | 1 | |||
| 29 | 4556114 Bague | 2 | |||
| 31 | 4556221 Butée caoutchouc | 2 | |||
| 32 | 4696175 Tampon | 2 | |||
| 32A | 7497738 Rondelle entretoise | 2 | |||
| 33 | 4556304 4850731 Rivet borgne | 1 | |||
| 34 | 4556320 Butée | 1 | |||
| 35 | 4697454 8083933 Butée 1995- | 1 | |||
| 37 | 4556007 Rondelle | 1 | |||
| 46 | 4557690 4852836 Plaque de réglage 1MM | X | |||
| 46 | 4406567 4852836 Plaque de réglage 2MM | X | |||
5360557 Kit réparation | X | ||||
4555868 Boulon | 8 | ||||
4555991 Rondelle | 6 | ||||
4556106 Bague | 12 | ||||
4556114 Bague | 4 | ||||
4556130 Bague | 10 | ||||
4556239 Tampon | 6 | ||||
4696829 Bague | 3 | ||||
4696837 Boulon | 4 | ||||
4767455 Bague | 1 | ||||
6952014 Bague | 4 | ||||
