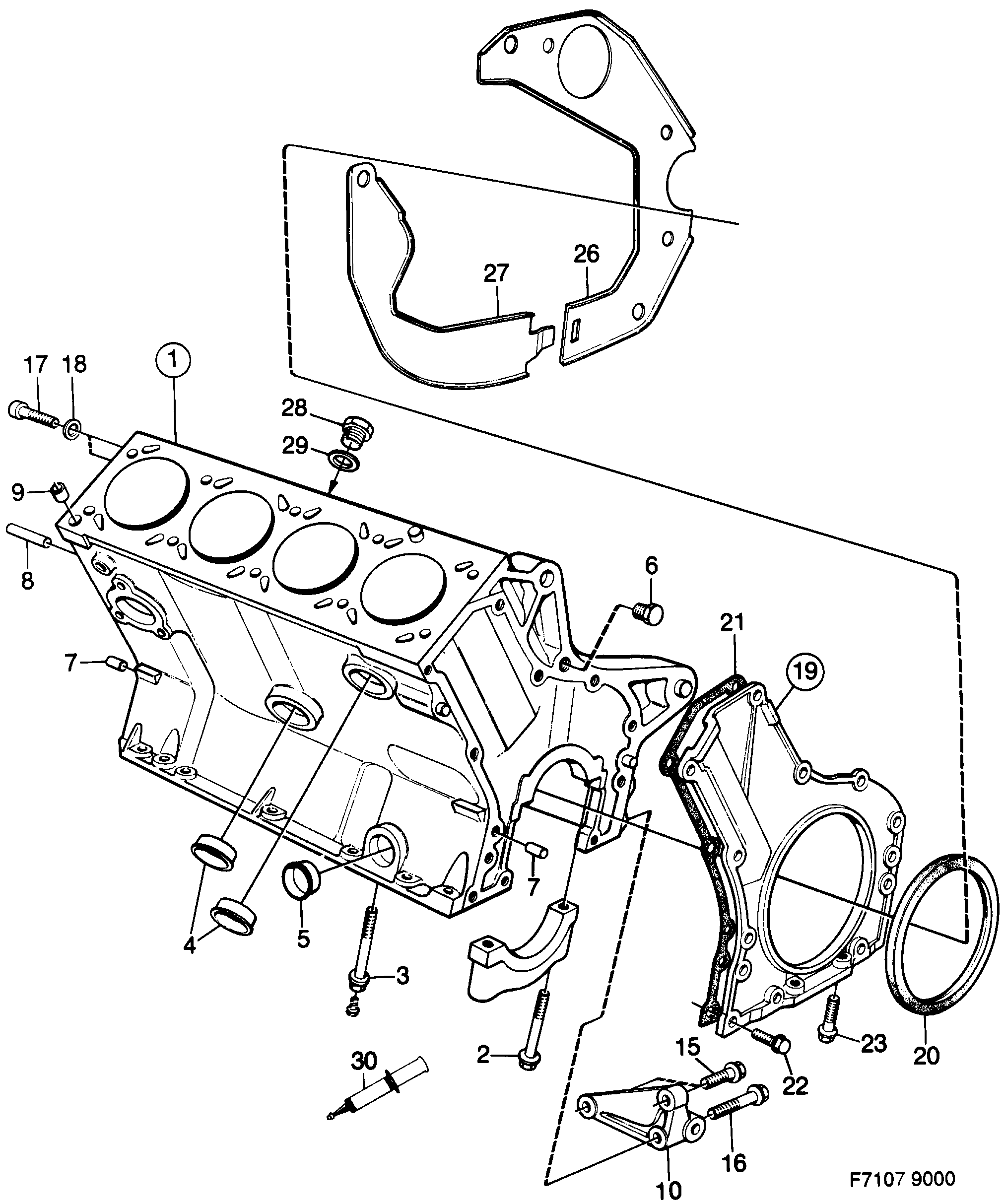

190: Moteur - Corps de moteur - Bloc-cylindres
(1985 - 1989) | Pour 9000 (1985)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7516859 Bloc-cylindres | 1 | |
| 2 | 8352502 9128687 Vis | 6 | |
| 3 | 9308537 Vis | 4 | |
| 4 | 9116757 32000339 Rondelle étanchéité 1985-1987 | (8347999) | 2 | |
| 5 | 8123218 Rondelle étanchéité 1985-1987 | 1 | |
| 6 | 8348047 Bouchon | 1 | |
| 7 | 8366007 Guide | 4 | |
| 8 | 8034761 Goupille | 1 | |
| 9 | 8346470 Guide | 4 | |
| 10 | 9357203 Console | 1 | |
| 15 | 8125205 Vis | 2 | |
| 16 | 8125262 Vis | 1 | |
| 17 | 8097867 Vis 1985-1986 | 2 | |
| 18 | 8073223 Rondelle | 2 | |
| 19 | 7516248 Plaque | 1 | |
| 20 | 9350158 55557240 Joint | 1 | |
| 21 | 7563679 Joint 1985-1986 | (9354267) | 1 | |
| 22 | 8125163 Vis | 9 | |
| 23 | 8125189 Vis | 2 | |
| 26 | 9388653 Anti-éclaboussures | 1 | |
| 26 | 9389990 Anti-éclaboussures | 1 | |
| 27 | 9388661 Anti-éclaboussures | 1 | |
| 28 | 7564222 7563042 Bouchon 1985-1988 | I | 1 | |
| 29 | 8124141 92150435 Joint I | 1 | |
| 30 | 90297970 Instajoint 50 ML | X |
