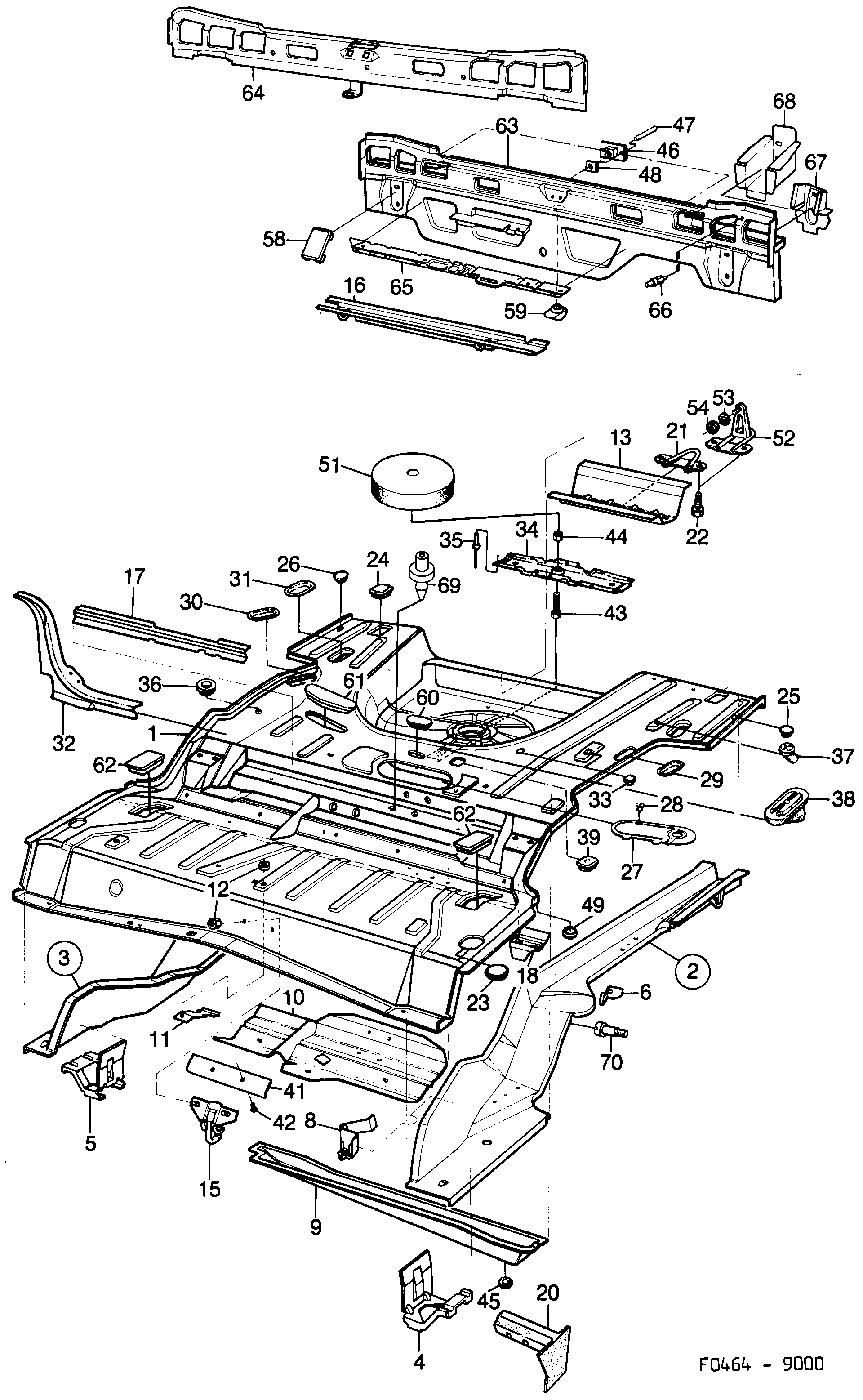

130: Carrosserie, extérieur - Corps de carrosserie - Plancher arrière
(1985 - 1989) | Pour 9000 (1985)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9265943 Plancher | 1 | |
| 2 | 9265976 Traverse 1985-1985 | LH | 1 | |
| 3 | 9265968 30521810 Traverse 1985-1985 | RH | 1 | |
| 4 | 9265984 Support 1985-1986 | LH | 1 | |
| 5 | 9265992 Support 1985-1986 | RH | 1 | |
| 6 | 9266016 Fixation LH | 1 | |
| 6 | 9266008 Fixation RH | 1 | |
| 8 | 9265950 Suspension 1985-1988 | Avant. | 1 | |
| 9 | 9266024 Traverse Arrière. | 1 | |
| 10 | 9266032 Renfort | 1 | |
| 11 | 9266040 Support | 1 | |
| 12 | 7968415 Contre-écrou (7965767) | 3 | |
| 13 | 9266057 Profil support 1985-1985 | 1 | |
| 15 | 9266073 Suspension | 1 | |
| 16 | 9266081 Profil support | 1 | |
| 17 | 9266099 Tôle inclinée | 1 | |
| 18 | 9266115 Support 1985-1987 | LH | 1 | |
| 18 | 9266107 Support 1985-1987 | RH | 1 | |
| 20 | 9267717 Protection LH | 1 | |
| 20 | 9267709 Protection RH | 1 | |
| 21 | 9262619 9278912 Crochet remorquage -1986 | 1 | |
| 22 | 7974850 92152121 Vis -1986 | 2 | |
| 23 | 9267865 Couvercle | 2 | |
| 24 | 9267774 Couvercle | 2 | |
| 25 | 9268814 Tampon | 1 | |
| 26 | 9268822 Tampon | 1 | |
| 27 | 9387994 Couvercle | 1 | |
| 28 | 9387911 Crochet | 2 | |
| 29 | 8962342 Couvercle LH | 1 | |
| 30 | 8962359 Couvercle RH | 1 | |
| 31 | 8962334 Couvercle | 2 | |
| 32 | 9265935 Tôle inclinée LH | 1 | |
| 32 | 9265927 Tôle inclinée RH | 1 | |
| 33 | 8239170 Tampon | 2 | |
| 34 | 9269184 Poutre support -1986 | 1 | |
| 35 | 8235178 Rivet pop | 10 | |
| 36 | 6919658 Tampon | 2 | |
| 37 | 9267998 Tampon 1985-1985 | 4 | |
| 38 | 9267980 Tampon Arrière. | LH | 1 | |
| 39 | 8239170 Tampon | 2 | |
| 41 | 9271263 Tôle recouvrement | 1 | |
| 42 | 8235178 Rivet pop | 2 | |
9288127 Ruban | X | ||
| 52 | 6939805 Crochet remorquage | 1 | |
| 53 | 6939839 Rondelle | 1 | |
| 54 | 7978620 11900437 Ecrou 1985-1988 | 1 | |
| 58 | 6958987 Couvercle | 2 | |
| 59 | 8266876 9267998 Bouchon drainage | 1 | |
| 60 | 6973812 Joint | 1 | |
| 61 | 6973820 Joint | 1 | |
| 62 | 6973838 Joint | 2 | |
| 63 | 9266198 Partie arrière | 1 | |
| 63 | 6963912 Partie arrière | 1 | |
| 64 | 6962625 Seuil PART OF 9266198 | 1 | |
| 64 | 6963920 Seuil PART OF 6963912 | 1 | |
| 65 | 6963904 Profil support | 1 | |
| 66 | 7399454 9130829 Ecrou rivet | 1 | |
| 67 | 9266065 Support PART OF 9266198 | 2 | |
| 68 | 6973564 Entretoise LH,PART OF 6963912 | 1 | |
| 68 | 6973556 Entretoise RH,PART OF 6963912 | 1 | |
| 69 | 6960975 Tampon | 4 |
