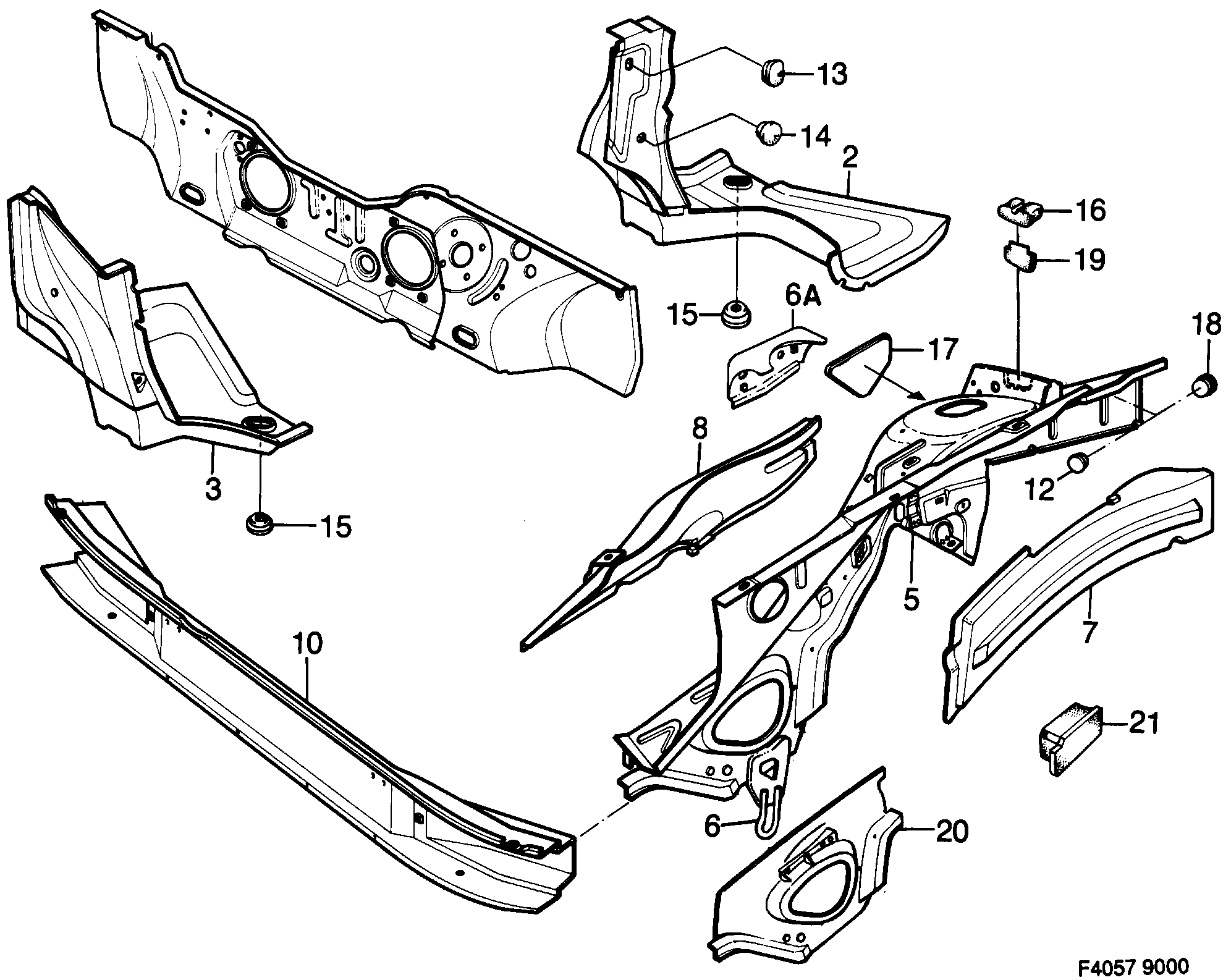

250: Carrosserie, extérieur - Corps de carrosserie - Passage de roue, avant
(1985 - 1989) | Pour 9000 (1985)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 1 | ||||
| 2 | 9265844 Renfort | 1 | |||
| 3 | 9265836 Renfort | 1 | |||
| 5 | 9265554 7975436 Passage roue LH SEE WORKSHOP MANUAL 8:1 | 1 | |||
| 5 | 9265547 7975436 Passage roue RH SEE WORKSHOP MANUAL 8:1 | 1 | |||
| 6 | 6955678 Crochet remorquage RH ONLY | 1 | |||
| 6A | 4293882 Console RH ONLY | 1 | |||
| 7 | 9265570 9275793 Renfort 1985-1985 | LH | 1 | |||
| 7 | 9265562 Renfort 1985-1985 | RH | 1 | |||
| 8 | 9265596 Traverse 1985-1987 | LH | 1 | |||
| 8 | 9265588 Traverse 1985-1987 | RH | 1 | |||
| 10 | 4009700 Traverse 1985-1987 | (9265521) | 1 | |||
| 12 | 8206096 Tampon | 1 | |||
| 13 | 9267915 Tampon | 3 | |||
| 14 | 9268806 Tampon -1987 | 2 | |||
| 15 | 9268863 Tampon | 2 | |||
| 17 | 9267857 Couvercle -1988 | LH | 1 | |||
| 17 | 9267840 Couvercle -1988 | RH | 1 | |||
| 19 | 9625641 Joint CARS WITHOUT AC | 2 | |||
| 20 | 6962609 4098695 Tôle LH | 1 | |||
| 20 | 6962617 4098703 Tôle RH | 1 | |||
8283715 Ruban 8283715= 3M | X | ||||
7982952 Vis soudée M6x15 | X | ||||
4348173 Vis soudée M6x21 | X | ||||
