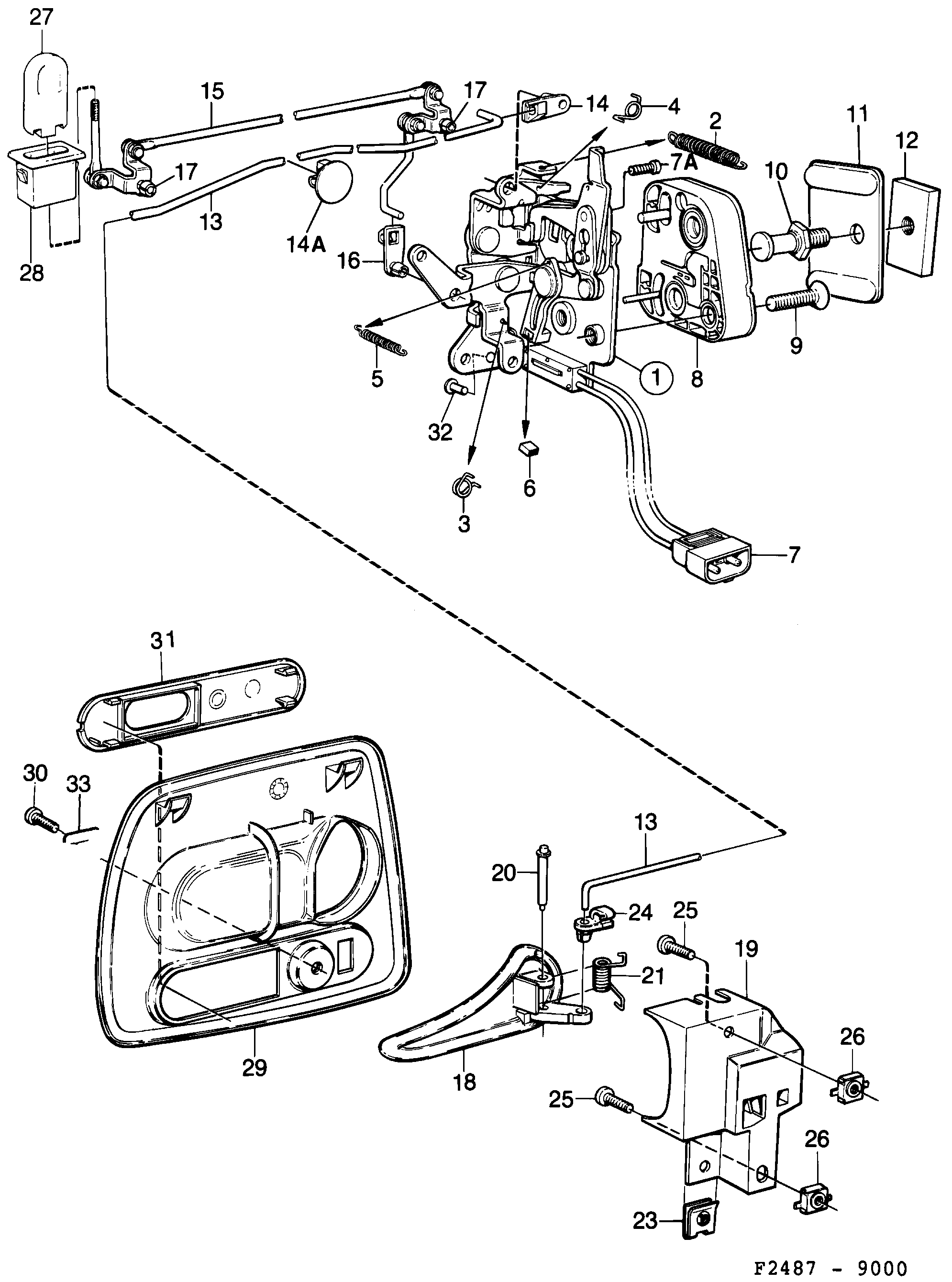

610: Carrosserie, extérieur - Portes, hayon - Serrure porte - Porte arrière
(1985 - 1989) | Pour 9000 (1985)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9253410 Serrure porte 1985-1985 | LH | 1 | |
| 1 | 9253402 Serrure porte 1985-1985 | RH | 1 | |
| 2 | 9257080 Ressort | 2 | |
| 3 | 9257171 Ressort LH | 1 | |
| 3 | 9257163 Ressort RH | 1 | |
| 4 | 9259433 Ressort LH | 1 | |
| 4 | 9259425 Ressort RH | 1 | |
| 5 | 9263401 Ressort | 2 | |
| 6 | 9508011 30525962 Aimant | 2 | |
| 7 | 9505454 Contact | 2 | |
| 7A | 8059214 Vis | 2 | |
| 8 | 9253451 6948970 Serrure porte 1985-1988 | OUTER,LH | 1 | |
| 8 | 9253444 6948962 Serrure porte 1985-1988 | OUTER,RH | 1 | |
| 9 | 8056228 7982184 Vis 1985-1988 | 6 | |
| 10 | 9258252 6947824 Goupille 1985-1988 | 2 | |
| 11 | 9268483 4251518 Entretoise 1985-1988 | 2 | |
| 12 | 9260183 9085077 Plaque | 2 | |
| 13 | 6954341 Tige 1985-1985 | LH (9255258) | 1 | |
| 13 | 9255241 Tige 1985-1985 | RH | 1 | |
| 14 | 8453755 Clip | 2 | |
| 14A | 9263583 4304663 Clip | 2 | |
| 15 | 9263617 4089652 Loquet 1985-1987 | LH | 1 | |
| 15 | 9263609 Loquet 1985-1987 | RH | 1 | |
| 16 | 8453755 Clip | 2 | |
| 17 | 9266644 Clip | 2 | |
| 18 | 9754763 Poignée LH | 1 | |
| 18 | 9754755 Poignée RH | 1 | |
| 19 | 9769134 Console LH | 1 | |
| 19 | 9769126 Console RH | 1 | |
| 20 | 9776139 Rivet | 2 | |
| 21 | 9776188 Ressort rappel LH | 1 | |
| 21 | 9776105 Ressort rappel RH | 1 | |
| 23 | 9776121 Ecrou | 2 | |
| 24 | 9782566 Pince serrage | 2 | |
| 25 | 8059396 Vis | 4 | |
| 26 | 7974231 Ecrou de benne | 4 | |
| 27 | 9762030 Bouton verrouillage | 2 | |
| 27 | 4037735 Bouton verrouillage | 2 | |
| 28 | 9762048 4269957 Bague | 2 | |
| 29 | 9578824 Plaque fixation -1987 | LH (9758178) | 1 | |
| 29 | 9578816 Plaque fixation -1987 | RH (9758160) | 1 | |
| 30 | 7972888 Vis 1985-1985 | 2 | |
| 31 | 9767559 Couvercle | 2 | |
| 32 | 9508094 30525968 Rivet | 4 |
