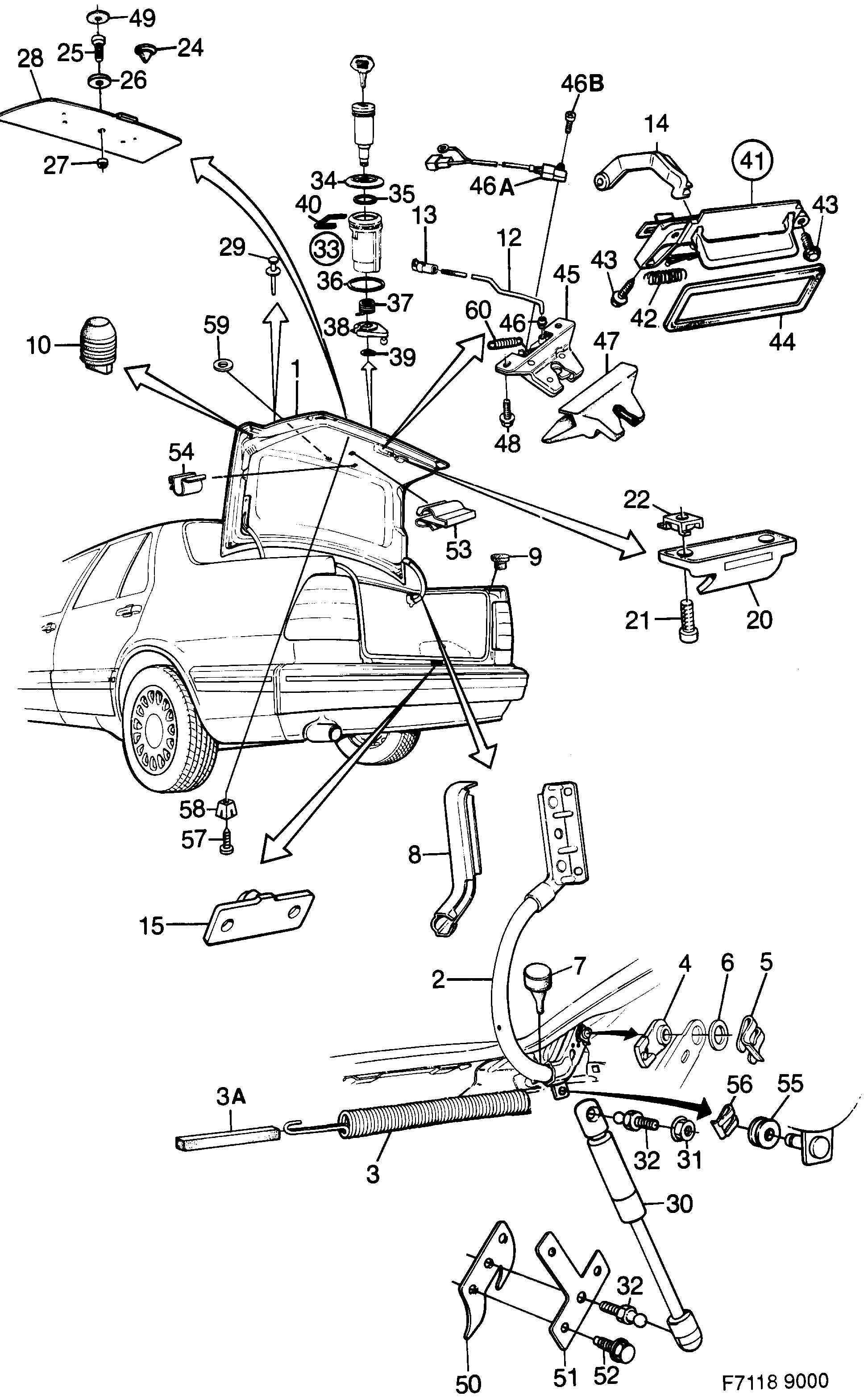

670: Carrosserie, extérieur - Portes, hayon - Hayon, charnières, serrure
(1985 - 1989 | 4D) | Pour 9000 (1985)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 6963987 4088274 Hayon | 1 | |||
| 2 | 6963995 Charnière LH | 1 | |||
| 2 | 6963953 Charnière RH | 1 | |||
| 3 | 6961866 Ressort | 2 | |||
| 3A | 4305330 Amortisseur | 2 | |||
| 4 | 9225475 Bague | 2 | |||
| 5 | 8257750 Verrouillage | 2 | |||
| 6 | 6973317 Rondelle | 2 | |||
| 7 | 6945497 Butée HINGE | 2 | |||
| 8 | 6962534 Couverture LH | 1 | |||
| 8 | 6962526 Couverture RH | 1 | |||
| 9 | 6974000 12770126 Protection anti-usure | 1 | |||
| 10 | 6961874 Butée TRUNK LID | 2 | |||
| 12 | 6963029 Tige commande | 1 | |||
| 13 | 9256488 Rotule | 1 | |||
| 14 | 6956791 Tringle | 1 | |||
| 15 | 6991533 Lame connexion | 1 | |||
| 20 | 9574302 Poignée | 1 | |||
| 21 | 8426199 Vis | 2 | |||
| 22 | 9774456 7974231 Ecrou | 2 | |||
| 24 | 7399447 Tampon plastique | 4 | |||
| 24 | 7399447 Tampon plastique LHD | 3 | |||
| 25 | 7977010 Vis | 1 | |||
| 26 | 6962567 Jeu rondelles | 1 | |||
| 27 | 7399629 Ecrou -1989 | 3 | |||
| 27 | 7399629 Ecrou -1989, LHD | 4 | |||
| 28 | 9279423 Couverture | 1 | |||
| 28 | 6955306 Couverture LHD | 1 | |||
| 29 | 9279621 Rivet | 10 | |||
| 33 | 1 | ||||
| 34 | 9261579 Couvercle | 1 | |||
| 35 | 9262163 Joint | 1 | |||
| 36 | 9261595 Cale | 1 | |||
| 37 | 9261561 Ressort | 1 | |||
| 38 | 9261538 Flasque entraînement | 1 | |||
| 39 | 7935992 Jonc | 1 | |||
| 40 | 9262486 Clip | 1 | |||
| 41 | 6960298 8284861 Poignée | 1 | |||
| 42 | 6991855 Ressort traction | 1 | |||
| 43 | 7973423 7977283 Vis | 4 | |||
| 44 | 6956189 Joint | 1 | |||
| 45 | 9252198 Serrure -1989 | 1 | |||
| 46 | 9256306 Clip | 1 | |||
| 47 | 6956957 Protection -1989 | 1 | |||
| 48 | 7969223 Vis | 4 | |||
| 55 | 4006557 Bague | 2 | |||
| 56 | 8252553 12780365 Clip | 2 | |||
| 60 | 4088209 Ressort | 1 | |||
