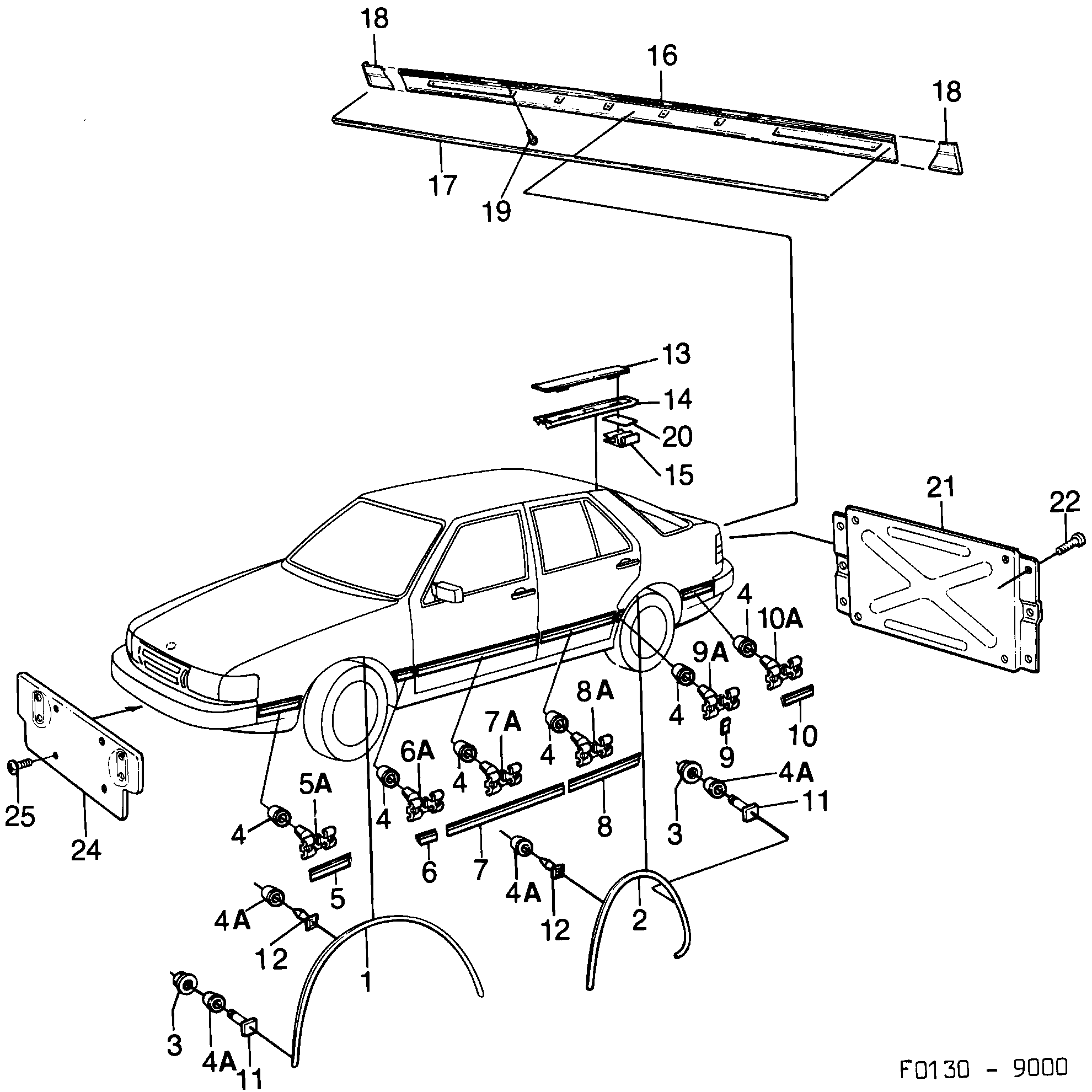

790: Carrosserie, extérieur - Eléments extérieurs - Enjoliveur
(1985 - 1989 | 5D) | Pour 9000 (1985)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 9257965 Baguette de passage roue LH | 1 | |||
| 1 | 9257957 Baguette de passage roue RH | 1 | |||
| 2 | 9258237 Baguette de passage roue LH | 1 | |||
| 2 | 9258229 Baguette de passage roue RH | 1 | |||
| 3 | 7398423 Ecrou -1986 | 14 | |||
| 4 | 7373269 Bague -1986 | 70 | |||
| 5 | 9255266 Enjoliveur LH | 1 | |||
| 5 | 9255274 Enjoliveur RH | 1 | |||
| 5A | 9266651 Clip | 2 | |||
| 6 | 9255282 Enjoliveur LH | 1 | |||
| 6 | 9255290 Enjoliveur RH | 1 | |||
| 6A | 9266651 Clip | 2 | |||
| 7 | 9255308 Enjoliveur LH | 1 | |||
| 7 | 9255316 Enjoliveur RH | 1 | |||
| 7A | 9266651 Clip | 7 | |||
| 8 | 9255324 Enjoliveur LH | 1 | |||
| 8 | 9255332 Enjoliveur RH | 1 | |||
| 8A | 9266651 Clip | 5 | |||
| 9 | 9255340 Enjoliveur LH | 1 | |||
| 9 | 9255357 Enjoliveur RH | 1 | |||
| 9A | 9266651 Clip | 1 | |||
| 10 | 9255365 Enjoliveur LH | 1 | |||
| 10 | 9255373 4254215 Enjoliveur RH | 1 | |||
| 10A | 9266651 Clip | 3 | |||
| 11 | 7398365 Vis -1986 | 14 | |||
| 12 | 9253329 Clip -1986 | 16 | |||
| 13 | 9268202 Enjoliveur LH | 1 | |||
| 13 | 9267394 Enjoliveur RH | 1 | |||
| 14 | 9269713 Enjoliveur LH | 1 | |||
| 14 | 9269705 Enjoliveur RH | 1 | |||
| 15 | 9269697 Clip | 4 | |||
| 16 | 9251471 Tôle-écran | 1 | |||
| 17 | 9252057 Lisse étanchéité | 1 | |||
| 18 | 9252131 Pièce extrémité LH | 1 | |||
| 18 | 9252123 Pièce extrémité RH | 1 | |||
| 19 | 7965544 Vis | 4 | |||
| 20 | 9277245 9288127 Ruban | 6 | |||
| 21 | 9272139 Support | 1 | |||
| 22 | 8059578 Vis | 4 | |||
| 24 | 1 | ||||
| 25 | 4 | ||||
9240086 12804284 Kit montage | 1 | ||||
7496029 Kit montage | 1 | ||||
7496037 Kit montage | 1 | ||||
