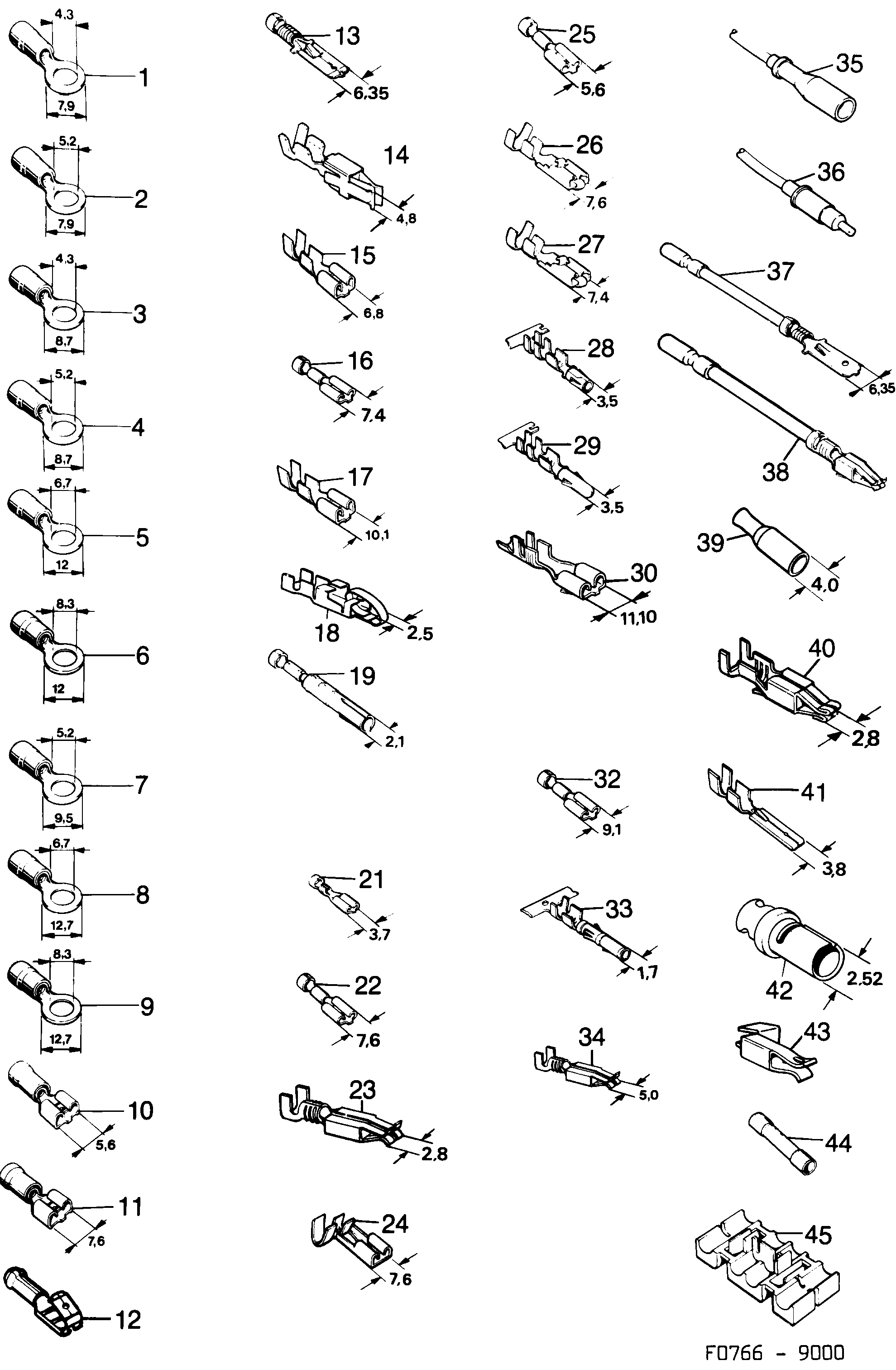

1060: Système électrique, boîte de connexion - Conduites et fusibles - Cosse câble

(1986) | Pour 9000 (1986)

Pos.	Réf.	Description	Usage	Qté
1	7155211 Cosse Code coleur rouge (section 0,25-1,6 MM2). \| 40/253 152 003	Cosse	Code coleur rouge (section 0,25-1,6 MM2). 40/253 152 003	X
2	7155229 Cosse Code coleur rouge (section 0,25-1,6 MM2). \| 40/253 153 001	Cosse	Code coleur rouge (section 0,25-1,6 MM2). 40/253 153 001	X
3	7155237 Cosse Code coleur bleu (section 1,0-2,6 MM2). \| 40/253 172 001	Cosse	Code coleur bleu (section 1,0-2,6 MM2). 40/253 172 001	X
4	7117880 Cosse Code coleur bleu (section 1,0-2,6 MM2). \| 40/253 173 009	Cosse	Code coleur bleu (section 1,0-2,6 MM2). 40/253 173 009	X
5	7829617 Cosse Code coleur bleu (section 1,0-2,6 MM2). \| 40/253 174 007	Cosse	Code coleur bleu (section 1,0-2,6 MM2). 40/253 174 007	X
6	7959349 Cosse Code coleur bleu (section 1,0-2,6 MM2).	Cosse	Code coleur bleu (section 1,0-2,6 MM2).	X
7	7155658 Cosse Code coleur jaune (section 2,7-6,6 MM2). \| 40/253 210 009	Cosse	Code coleur jaune (section 2,7-6,6 MM2). 40/253 210 009	X
8	7829666 Cosse Code coleur jaune (section 2,7-6,6 MM2). \| 40/253 211 007	Cosse	Code coleur jaune (section 2,7-6,6 MM2). 40/253 211 007	X
9	7829674 Cosse Code coleur jaune (section 2,7-6,6 MM2). \| 40/253 212 005	Cosse	Code coleur jaune (section 2,7-6,6 MM2). 40/253 212 005	X
10	7969231 Cosse Code coleur bleu (section 1,0-3,4 MM2).	Cosse	Code coleur bleu (section 1,0-3,4 MM2).	X
11	7829625 Raccord Code coleur bleu (section 1,5-2,5 MM2). \| 40/253 195 002	Raccord	Code coleur bleu (section 1,5-2,5 MM2). 40/253 195 002	X
11	7829682 Cosse Code coleur jaune (section 3,0-6,0 MM2). \| 40/253 226 005	Cosse	Code coleur jaune (section 3,0-6,0 MM2). 40/253 226 005	X
11	7829633 Boîtier contact Code coleur bleu (section 1,5-2,5 MM2). \| 40/253 197 008	Boîtier contact	Code coleur bleu (section 1,5-2,5 MM2). 40/253 197 008	X
11	7829609 Cosse Code coleur rouge (section 0,3-1,5 MM2). \| 40/253 168 009	Cosse	Code coleur rouge (section 0,3-1,5 MM2). 40/253 168 009	X
12	7829641 Tubulure Code coleur bleu (section 1,5-2,5 MM2). \| 45/30 24 650	Tubulure	Code coleur bleu (section 1,5-2,5 MM2). 45/30 24 650	X
13	7155062 Cosse JOINT PIECE,FOR CONTACT HOUSING,9124181 9502998,9503012	Cosse	JOINT PIECE,FOR CONTACT HOUSING,9124181 9502998,9503012	X
13	8516957 Cosse FOR CONTACT HOUSING 9124181	Cosse	FOR CONTACT HOUSING 9124181	X
13	8582637 Cosse FOR CONTACT HOUSING 7155104	Cosse	FOR CONTACT HOUSING 7155104	X
14	9120775 30520555 Cosse EL-CENTRAL,FAILUR SENSOR,FLASHER UNIT, FUEL PUMP RELAY,MAIN RELAY,RELAY HORN,RELAY REAR DEMIST,RELAY AC INTERVAL RELAY,AC DIOD INTERIOR LIGHT,IGNITION SETTING,LIGHT,FOR CONTACT HOUSING 8533697	Cosse	EL-CENTRAL,FAILUR SENSOR,FLASHER UNIT, FUEL PUMP RELAY,MAIN RELAY,RELAY HORN,RELAY REAR DEMIST,RELAY AC INTERVAL RELAY,AC DIOD INTERIOR LIGHT,IGNITION SETTING,LIGHT,FOR CONTACT HOUSING 8533697	X
15	7155039 Cosse EL-CENTRAL,EARTH FOR CONTACT HOUSING 8516916	Cosse	EL-CENTRAL,EARTH FOR CONTACT HOUSING 8516916	X
15	7155047 Cosse EARTH	Cosse	EARTH	X
15	7155716 Cosse EL-CENTRAL,JOINT PIECE,CIGARETTE LIGHTER FOR CONTACT HOUSING 8516916	Cosse	EL-CENTRAL,JOINT PIECE,CIGARETTE LIGHTER FOR CONTACT HOUSING 8516916	X
16	7155153 Cosse FOR CONTACT HOUSING 8558538	Cosse	FOR CONTACT HOUSING 8558538	X
16	7972029 Cosse FOR CONTACT HOUSING,8533697,9120791 9503251	Cosse	FOR CONTACT HOUSING,8533697,9120791 9503251	X
16	7971708 Cosse FOR CONTACT HOUSING 7155112,8533697	Cosse	FOR CONTACT HOUSING 7155112,8533697	X
16	7968068 Cosse FOR CONTACT HOUSING 8533697	Cosse	FOR CONTACT HOUSING 8533697	X
16	8503476 Cosse FOR CONTACT HOUSING 8558538	Cosse	FOR CONTACT HOUSING 8558538	X
16	8582454 Cosse JOINT PIECE,FOR CONTACT HOUSING,8558538 9512591	Cosse	JOINT PIECE,FOR CONTACT HOUSING,8558538 9512591	X
17	7969256 Cosse EL-CENTRAL	Cosse	EL-CENTRAL	X
18	8135147 Cosse FOR CONTACT HOUSING 8135600	Cosse	FOR CONTACT HOUSING 8135600	X
18	8138679 Cosse FOR CONTACT HOUSING 8135600	Cosse	FOR CONTACT HOUSING 8135600	X
19	8522583 Cosse FOR CONTACT HOUSING 8530099(8503153)	Cosse	FOR CONTACT HOUSING 8530099(8503153)	X
21	8509846 8522575 Cosse FOR CONTACT HOUSING 8378630	Cosse	FOR CONTACT HOUSING 8378630	X
21	8530107 Cosse FOR CONTACT HOUSING 8530115	Cosse	FOR CONTACT HOUSING 8530115	X
22	8514028 7155716 Cosse TEMP SENSOR,OIL PRESSURE SENSOR, ALTERNATOR,FOR CONTACT HOUSING 8516916	Cosse	TEMP SENSOR,OIL PRESSURE SENSOR, ALTERNATOR,FOR CONTACT HOUSING 8516916	X
22	8514036 Cosse RELAY GROUND SHEET FOR CONTACT HOUSING 8516916	Cosse	RELAY GROUND SHEET FOR CONTACT HOUSING 8516916	X
23	8521593 Cosse FAILUR SENSOR INTERVAL RELAY,FOR CONTACT HOUSING,8544371 8574097,8574121,8579930 8593899,8593907,8593915 8593931,8593949,9123381 9506650	Cosse	FAILUR SENSOR INTERVAL RELAY,FOR CONTACT HOUSING,8544371 8574097,8574121,8579930 8593899,8593907,8593915 8593931,8593949,9123381 9506650	X
23	9120783 30520556 Cosse EL-CENTRAL FAILUR SENSOR,RELAY LIGHT, RELAY FUEL PUMP,MAIN RELAY,RELAY HORN,RELAY REAR DEMIST,RELAY AC INTERVAL RELAY,AC DIOD JOINT PIECE,FOR CONTACT HOUSING,9124090,9124157	Cosse	EL-CENTRAL FAILUR SENSOR,RELAY LIGHT, RELAY FUEL PUMP,MAIN RELAY,RELAY HORN,RELAY REAR DEMIST,RELAY AC INTERVAL RELAY,AC DIOD JOINT PIECE,FOR CONTACT HOUSING,9124090,9124157	X
23	9120791 30520557 Cosse EL-CENTRAL,FAILUR SENSOR,RELAY AC,RELAY IGNITION LOCK,JOINT PIECE,REAR DEMIST,FOR CONTACT HOUSING 9122797 9124090	Cosse	EL-CENTRAL,FAILUR SENSOR,RELAY AC,RELAY IGNITION LOCK,JOINT PIECE,REAR DEMIST,FOR CONTACT HOUSING 9122797 9124090	X
24	8521676 Cosse SPOTLIGHT,LIGHT ASH TRAY,FOR CONTACT HOUSING 8521692	Cosse	SPOTLIGHT,LIGHT ASH TRAY,FOR CONTACT HOUSING 8521692	X
24	8521684 Cosse FOR CONTACT HOUSING 8521692,9518416	Cosse	FOR CONTACT HOUSING 8521692,9518416	X
24	8522526 Cosse FOR CONTACT HOUSING 8521692(8582421)	Cosse	FOR CONTACT HOUSING 8521692(8582421)	X
25	8544389 Cosse FOR CONTACT HOUSING 8544371	Cosse	FOR CONTACT HOUSING 8544371	X
25	8533028 8582439 Cosse FOR CONTACT HOUSING 8533184	Cosse	FOR CONTACT HOUSING 8533184	X
26	8541203 Cosse JOINT PIECE,FOR	Cosse	JOINT PIECE,FOR	X
27	8560476 Cosse FOR CONTACT HOUSING 8541229	Cosse	FOR CONTACT HOUSING 8541229	X
27	8582405 Cosse FOR CONTACT HOUSING 8541229	Cosse	FOR CONTACT HOUSING 8541229	X
27	8541211 Cosse JOINT PIECE,FOR CONTACT HOUSING 8541229 8544363	Cosse	JOINT PIECE,FOR CONTACT HOUSING 8541229 8544363	X
28	8544298 8582595 Cosse JOINT PIECE,FOR CONTACT HOUSING,8564916 8561631,9503293	Cosse	JOINT PIECE,FOR CONTACT HOUSING,8564916 8561631,9503293	X
28	8544306 Cosse JOINT PIECE	Cosse	JOINT PIECE	X
28	8582090 Cosse FOR CONTACT HOUSING 9503525	Cosse	FOR CONTACT HOUSING 9503525	X
29	8544314 8582603 Cosse FOR CONTACT HOUSING 8561623,8564924	Cosse	FOR CONTACT HOUSING 8561623,8564924	X
29	8544322 Cosse FOR CONTACT HOUSING 8564924	Cosse	FOR CONTACT HOUSING 8564924	X
30	8569139 Cosse EL-CENTRAL	Cosse	EL-CENTRAL	X
32	8582413 Cosse JOINT PIECE,FOR CONTACT HOUSING 7155021	Cosse	JOINT PIECE,FOR CONTACT HOUSING 7155021	X
33	8587552 Cosse FOR CONTACT HOUSING 9506643,9512591	Cosse	FOR CONTACT HOUSING 9506643,9512591	X
33	8587560 Cosse FOR CONTACT HOUSING 9512591	Cosse	FOR CONTACT HOUSING 9512591	X
34	9120767 30520554 Cosse EL-CENTRAL,RELAY REAR DEMIST,RELAY FUEL PUMP,FOR CONTACT HOUSING 9122789	Cosse	EL-CENTRAL,RELAY REAR DEMIST,RELAY FUEL PUMP,FOR CONTACT HOUSING 9122789	X
34	9521972 Cosse RELAY EARTH SHEET	Cosse	RELAY EARTH SHEET	X
34	9521980 30520556 Cosse RELAY EARTH SHEET	Cosse	RELAY EARTH SHEET	X
34	9120668 12789796 Cosse FOR CONTACT HOUSING 9123399	Cosse	FOR CONTACT HOUSING 9123399	X
35	7874498 Connexion FOR CONTACT HOUSING 9503277,9503316,9503319 9503418,9503434,9503475	Connexion	FOR CONTACT HOUSING 9503277,9503316,9503319 9503418,9503434,9503475	X
36	7874506 Connexion FOR CONTACT HOUSING 9501685,9503327,9503319 9506668	Connexion	FOR CONTACT HOUSING 9501685,9503327,9503319 9506668	X
37	8522542 Cosse Code coleur bleu (section 1,0-2,6 MM2). \| FOR CONTACT HOUSING,7155120	Cosse	Code coleur bleu (section 1,0-2,6 MM2). FOR CONTACT HOUSING,7155120	X
38	8522617 Cosse BULB CONTROL,AC INTERVAL RELAY,BELT WARNING FOR CONTACT HOUSING,8533697,8544371 8574097,8579930,8586802 8593899,8593907,8593915 8593923,8593931,8593949 9123381,9506650	Cosse	BULB CONTROL,AC INTERVAL RELAY,BELT WARNING FOR CONTACT HOUSING,8533697,8544371 8574097,8579930,8586802 8593899,8593907,8593915 8593923,8593931,8593949 9123381,9506650	X
39	8582579 Cosse JOINT PIECE	Cosse	JOINT PIECE	X
40	9508706 12789796 Cosse RELAY GROUND SHEET	Cosse	RELAY GROUND SHEET	X
40	9508748 12789796 Cosse FOR CONTACT HOUSING,9123399,9514803	Cosse	FOR CONTACT HOUSING,9123399,9514803	X
41	9552100 Cosse FOR CONTACT HOUSING,9122557	Cosse	FOR CONTACT HOUSING,9122557	X
42	9552175 Cosse FOR CONTACT HOUSING 9552159,9552167	Cosse	FOR CONTACT HOUSING 9552159,9552167	X
44	7155203 Douille raccord Code coleur rouge (section 0,25-1,6 MM2). \| 40/253 164 008	Douille raccord	Code coleur rouge (section 0,25-1,6 MM2). 40/253 164 008	X
44	7155146 Douille raccord Code coleur bleu (section 1,0-2,6 MM2). \| 40/253 188 007	Douille raccord	Code coleur bleu (section 1,0-2,6 MM2). 40/253 188 007	X
44	7155633 Douille raccord Code coleur jaune (section 2,7-6,6 MM2). \| 40/253 221 006	Douille raccord	Code coleur jaune (section 2,7-6,6 MM2). 40/253 221 006	X
45	8587198 Joint câble	Joint câble		X
45	8521668 Joint câble	Joint câble		X
