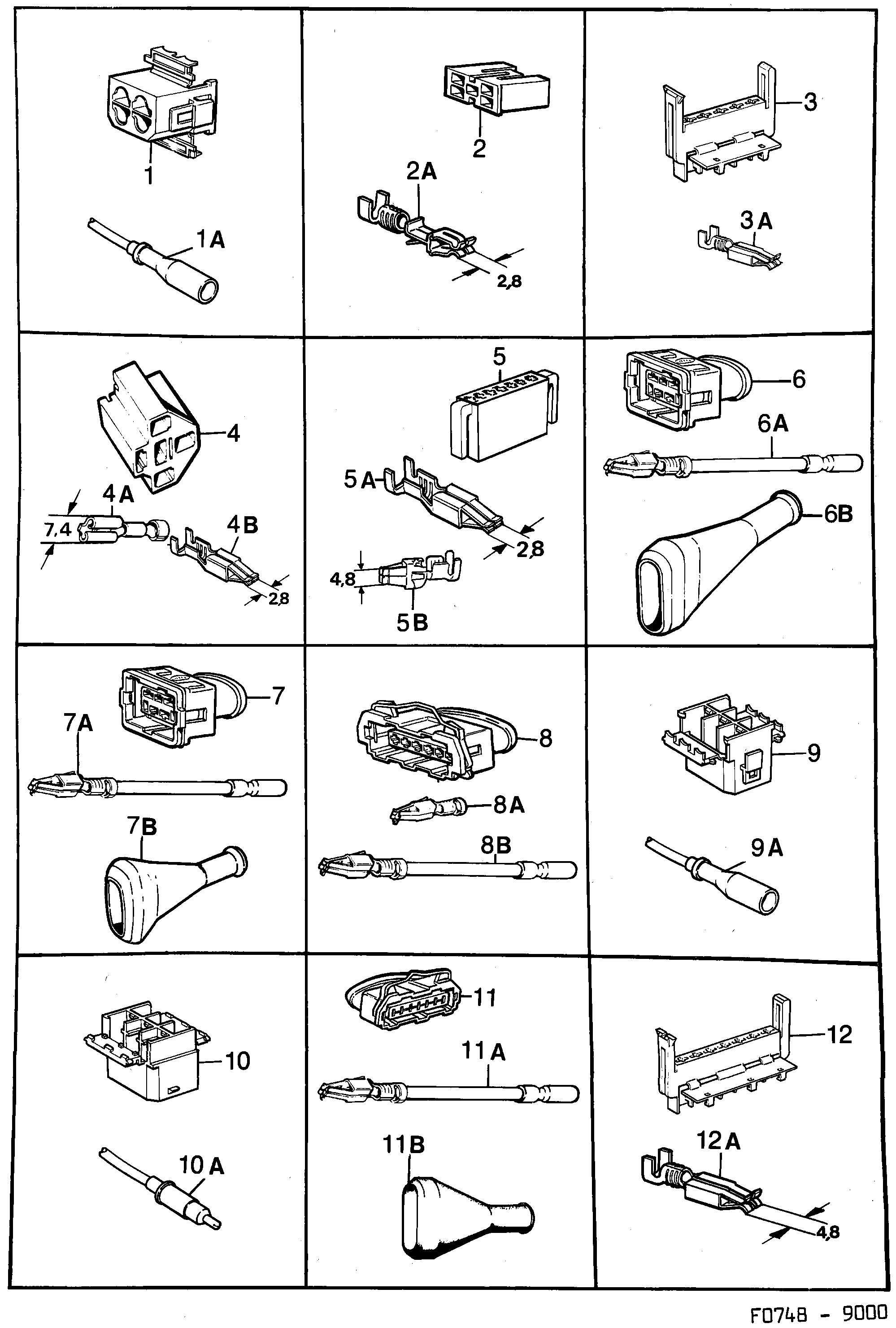

520: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1987) | Pour 9000 (1987)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9503434 Boîtier contact 4-poles, douille | CONTROL UNIT ACC,JOINT PIECE,PRESSURE SWITCH | X | |
| 1A | 7874498 Connexion | X | |
| 2 | 9123555 Boîtier contact 4-poles, douille | FAN INDOOR TEMP | X | |
| 2A | 9508714 12789796 Cosse AREA,0,3-0,6 MM2 | X | |
| 3 | 9122789 Boîtier contact 5-poles, douille | RESISTOR HEATING FAN | X | |
| 3A | 9120775 30520555 Cosse AREA,0,5-1,0 MM2 | X | |
| 3A | 9120767 30520554 Cosse AREA,4,0-6,0 MM2 | X | |
| 4 | 8533697 Boîtier contact 5-poles, douille | RELAY WINDOW REGULATOR TIME RELAY COOLING FAN, REAR FOG LIGHT EXTRA DIM DIP | X | |
| 4A | 7971708 Cosse AREA,0,5-1,5 MM2 | X | |
| 4A | 7972029 Cosse AREA,1,0-2,5 MM2 | X | |
| 4A | 7968068 Cosse AREA,4,0-6,0 MM2 | X | |
| 4B | 9120775 30520555 Cosse AREA,0,5-1,0 MM2 | X | |
| 5 | 9124173 Boîtier contact 5-poles, douille | GEAR INDICATOR,JOINT PIECE | X | |
| 5A | 9120775 30520555 Cosse AREA,0,5-1,0 MM2 | X | |
| 5A | 9521972 Cosse AREA,0,5-1,0 MM2 | X | |
| 5B | 9120783 30520556 Cosse AREA,1,0-2,5 MM2 | X | |
| 6 | 9519414 Boîtier contact 5-poles, douille | SENSOR ABS | X | |
| 6A | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 6B | 8579955 Protection AREA,1,0-2,5 MM2 | X | |
| 7 | 9519455 Boîtier contact 5-poles, douille | LEVEL ABS | X | |
| 7A | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 7B | 9519430 Protection | X | |
| 8 | 8593931 Boîtier contact 6-poles, douille | AIR MESS METER LH | X | |
| 8A | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 8B | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 9 | 9503475 Boîtier contact 6-poles, douille | JOINT PIECE | X | |
| 9A | 7874498 Connexion | X | |
| 10 | 9506668 Boîtier contact 6-poles, broche | JOINT PIECE | X | |
| 10A | 7874506 Connexion | X | |
| 11 | 8593949 Boîtier contact 7-poles, douille | EZK,POWER STAGE,VALVE | X | |
| 11A | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 11B | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 11C | 8574048 Protection | X | |
| 12 | 9122797 Boîtier contact 7-poles, douille | THEFT ALARM,SWITCH DIRECTION INDICATOR, SWITCH SPEED CONTROL TAIL LIGHT REAR FOG LIGHT,JOINT PIECE | X | |
| 12A | 9120775 30520555 Cosse AREA,0,5-1,0 MM2 | X | |
| 12A | 9120783 30520556 Cosse AREA,1,0-2,5 MM2 | X | |
| 12A | 9120791 30520557 Cosse AREA,2,5-4,0 MM2 | X |
