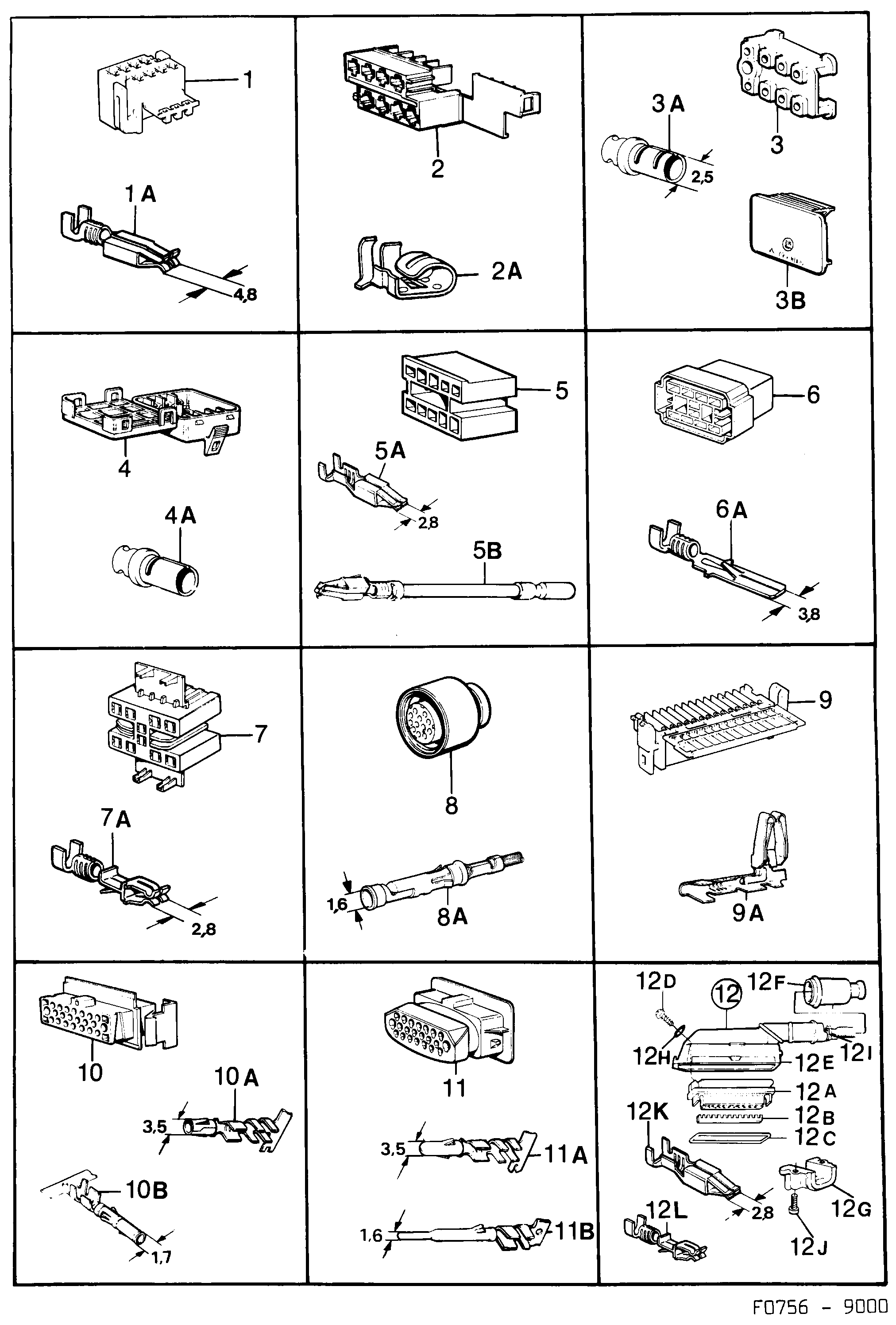

760: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1988) | Pour 9000 (1988)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9124090 Boîtier contact I | 8-poles, douille | JOINT PIECE,SWITCH REAR DEMIST,SWITCH SUN ROOF, REGULATOR,SWITCH SUN CENTRAL LOCK,TOW HOOK ACC,TRUNK LID,SWITCH CENTRAL LOCK,ON/OFF SWITCH FAN,DCC,EDU ALARM,JOINT PIECE CABLE HARNESS ROOF | X | |
| 1A | 9120791 30520557 Cosse AREA,2,5-4,0 MM2 | X | |
| 2 | 9503525 Boîtier contact 8-poles, douille | SWITCH WINDOW REGULATOR | X | |
| 2A | 8582090 Cosse AREA,0,5-1,5 MM2 | X | |
| 3 | 9552159 Boîtier contact 8-poles, douille | ELECTRONIC UNIT BELT TENSIONER | X | |
| 3A | 9552175 Cosse | X | |
| 3B | 9552167 Couvercle | X | |
| 4 | 9512930 30526066 Boîtier contact 9-poles, douille | LOCK STEERING COLUMN | X | |
| 4A | 9509746 Cosse AREA,0,5-1,5 MM2 | X | |
| 5 | 8544371 Boîte connexion 10-poles, douille | LEVEL CONTROL | X | |
| 5A | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 5B | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 6 | 9122557 Boîte connexion 10-poles, broche | RADIO,JOINT PIECE MAIN CABLE HARNESS SAAB DI | X | |
| 6A | 9552100 Cosse AREA,0,75-1,5 MM2 | X | |
| 7 | 9123399 12764801 Boîte connexion 10-poles, douille | REAR FOG LIGHT,SWITCH AC,RECIRCULATION AC, RADIO,REOSTAT,FOG LIGHT EXTRA,REOSTAT EL- PAD,HEADLIGHT LEVELING SAAB DI | X | |
| 7A | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X | |
| 8 | 9529538 Boîtier contact 12-poles, douille | BELT TENSIONER | X | |
| 8A | 9525817 Cosse AREA,0,2-0,56 MM2 | X | |
| 9 | 9503020 30525826 Boîtier contact 14-poles, douille | INSTRUMENTS | X | |
| 9A | 9505397 Cosse AREA,1,5-2,5 MM2 | X | |
| 10 | 9525106 Boîtier contact 22-poles, douille | JOINT PIECE | X | |
| 10A | 8544298 8582595 Cosse AREA,0,5-2,0 MM2 | X | |
| 10B | 8587552 Cosse AREA,0,5-1,5 MM2 | X | |
| 11 | 9525114 Boîtier contact 22-poles, broche | JOINT PIECE CABLE HAR- NESS DOORS | X | |
| 11A | 8544314 8582603 Cosse AREA,2,0-4,0 MM2 | X | |
| 11B | 8593964 Cosse AREA,0,8-1,5 MM2 | X | |
| 12 | 8579930 Boîtier contact 25-poles, douille | ELECTRONIC UNIT LH | X | |
| 12A | 8587420 Boîtier contact | 1 | |
| 12B | 8587438 Gâche | 1 | |
| 12C | 8587453 Joint | 1 | |
| 12D | 8587487 Vis | 1 | |
| 12E | 8587412 Capot | 1 | |
| 12F | 8587446 Bague | 1 | |
| 12G | 8587495 Support | 1 | |
| 12H | 8587461 Joint | 1 | |
| 12I | 7971872 Ruban serrage (8558256) | 1 | |
| 12J | 7971351 Vis | 2 | |
| 12K | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 12L | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X |
