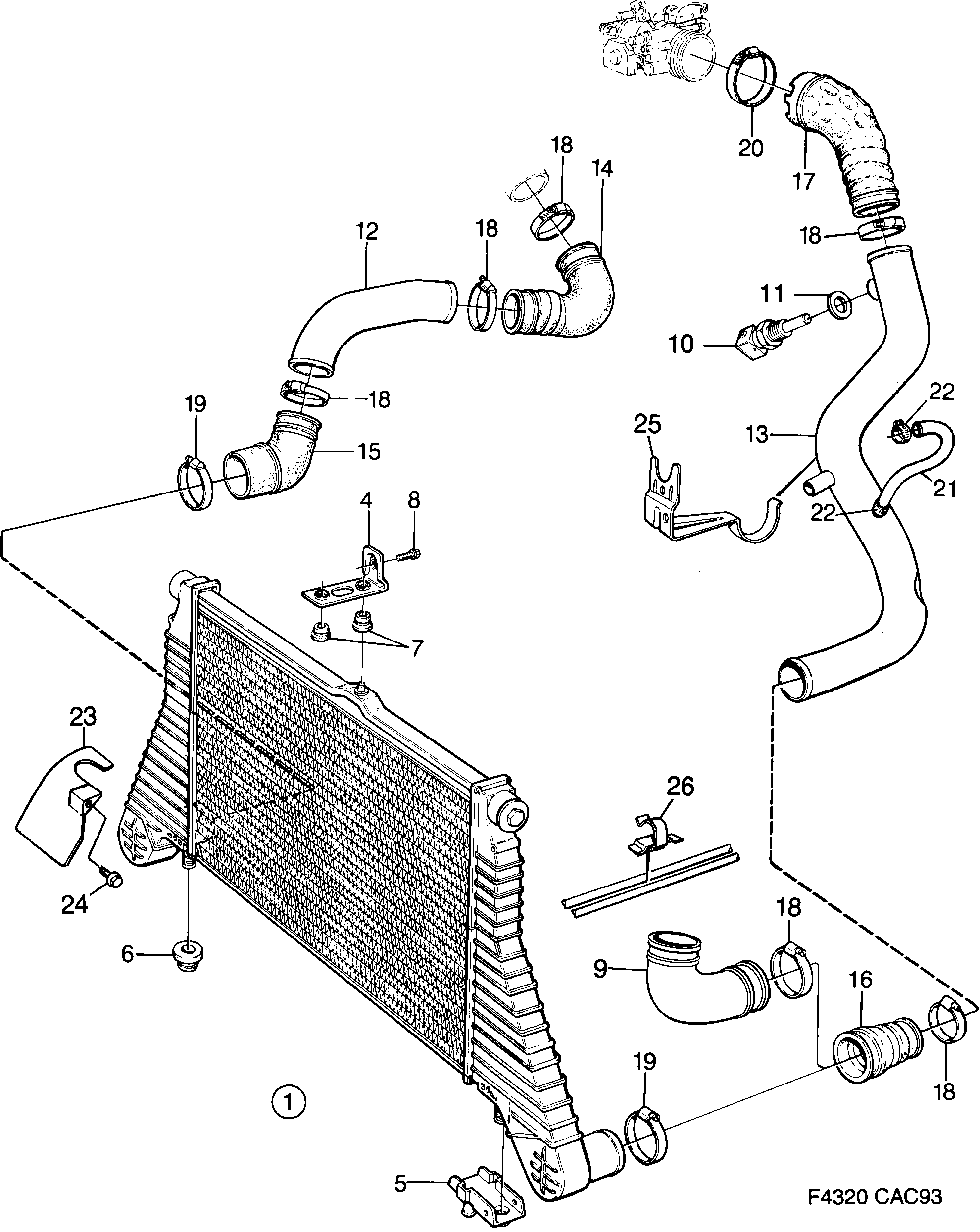

1850: Moteur - Système de refroidissement - Refoidisseur d'air de suralimentation
(1990 - 1993) | Pour 9000 (1990)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7559776 Refoidisseur d'air de suralimentation 1990-1990 | 1 | |
| 4 | 7550346 Fixation | 1 | |
| 5 | 9381120 Fixation 1990-1990 | 1 | |
| 6 | 4027488 Bague caoutchouc | 2 | |
| 7 | 7550353 Bague caoutchouc | 1 | |
| 8 | 7972441 Vis | 1 | |
| 9 | 4164745 Flexible B202S | 1 | |
| 12 | 9381724 Tuyau 1990-1990 | TE05 | 1 | |
| 12 | 4015871 Tuyau 1990-1990 | T25 | 1 | |
| 13 | 7590805 Tuyau 1990-1990 | B202 | 1 | |
| 13 | 9390923 Tuyau 1990-1990 | B202 | 1 | |
| 13 | 4164687 Tuyau B202S | 1 | |
| 13 | 4164695 Tuyau B202S | 1 | |
| 14 | 9387671 Flexible 1990-1990 | TE05 | 1 | |
| 14 | 4015863 Flexible 1990-1990 | T25 | 1 | |
| 15 | 9387689 Flexible 1990-1990 | 1 | |
| 16 | 9390956 Flexible 1990-1990 | 1 | |
| 17 | 9391509 Flexible 1990-1990 | B202 | 1 | |
| 17 | 9391509 Flexible B202S | 1 | |
| 18 | 7970130 92153077 Collier serrage | 5 | |
| 19 | 7970148 92153079 Collier serrage | 2 | |
| 20 | 7970155 92153080 Collier serrage | 1 | |
| 21 | 9342627 Flexible 1990-1990 | 1 | |
| 21 | 8978652 Flexible B202S | L=305 MM | 1 | |
| 22 | 7973522 Collier serrage | 2 | |
| 23 | 4028767 Tôle recouvrement AC | 1 | |
| 24 | 7972607 92153146 Vis AC | 2 | |
| 25 | 4390589 Support B202S | 1 | |
| 26 | 9228156 Clip B202S | 2 |
