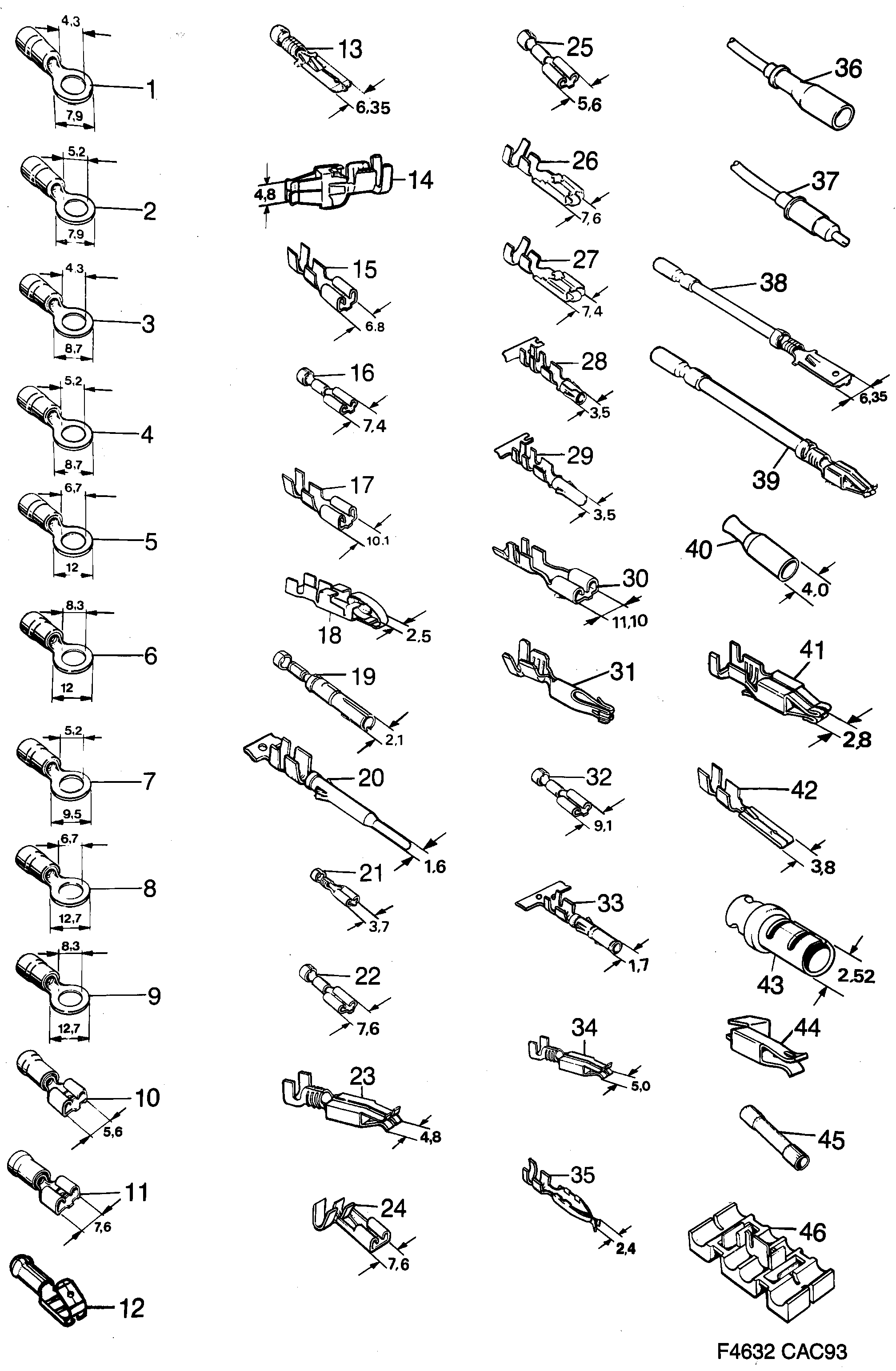

1040: Système électrique, boîte de connexion - Conduites et fusibles - Cosse câble

(1990) | Pour 9000 (1990)

Pos.	Réf.	Description	Usage	Qté
1	7155211 Cosse 40/253 152 003	Cosse	40/253 152 003	X
2	7155229 Cosse 40/253 153 001	Cosse	40/253 153 001	X
3	7155237 Cosse 40/253 172 001	Cosse	40/253 172 001	X
4	7117880 Cosse 40/253 173 009	Cosse	40/253 173 009	X
5	7829617 Cosse 40/253 174 007	Cosse	40/253 174 007	X
6	7959349 Cosse	Cosse		X
7	7155658 Cosse 40/253 210 009	Cosse	40/253 210 009	X
8	7829666 Cosse 40/253 211 007	Cosse	40/253 211 007	X
9	7829674 Cosse 40/253 212 005	Cosse	40/253 212 005	X
9	7977556 Cosse GROUND ABS	Cosse	GROUND ABS	X
10	7969231 Cosse	Cosse		X
11	7829625 Raccord 40/253 195 002	Raccord	40/253 195 002	X
11	7829682 Cosse 40/253 226 005	Cosse	40/253 226 005	X
11	7829633 Boîtier contact 40/253 197 008	Boîtier contact	40/253 197 008	X
11	7829609 Cosse 40/253 168 009	Cosse	40/253 168 009	X
12	7829641 Tubulure 40/253 196 000	Tubulure	40/253 196 000	X
13	8522542 Cosse JOINT PIECE,FOR CONTACT HOUSING,9503012	Cosse	JOINT PIECE,FOR CONTACT HOUSING,9503012	X
13	8593089 Cosse JOINT PIECE TRUNK LID,HIGH MOUNTED STOP LIGHT,FOR CONTACT HOUSING,9124181	Cosse	JOINT PIECE TRUNK LID,HIGH MOUNTED STOP LIGHT,FOR CONTACT HOUSING,9124181	X
14	9120775 30520555 Cosse RELAY HORN,RELAY REAR DEMIST,RELAY AC, AC DIOD,LIGHT FOR CONTACT HOUSING 8533697,9124157,9507658	Cosse	RELAY HORN,RELAY REAR DEMIST,RELAY AC, AC DIOD,LIGHT FOR CONTACT HOUSING 8533697,9124157,9507658	X
15	8514036 Cosse EL-CENTRAL,EARTH	Cosse	EL-CENTRAL,EARTH	X
15	7155716 Cosse EL-CENTRAL,DOOR SWITCH,CIGARETTE LIGHTER,DISTRIBUTOR TERMINAL,JOINT PIECE BRAKE LIGHT,FOR CONTACT HOUSING,8516916	Cosse	EL-CENTRAL,DOOR SWITCH,CIGARETTE LIGHTER,DISTRIBUTOR TERMINAL,JOINT PIECE BRAKE LIGHT,FOR CONTACT HOUSING,8516916	X
16	7155153 Cosse FOR CONTACT HOUSING 7155112,8558538	Cosse	FOR CONTACT HOUSING 7155112,8558538	X
16	7972029 Cosse FOR CONTACT HOUSING,8533697,9503251	Cosse	FOR CONTACT HOUSING,8533697,9503251	X
16	7971708 Cosse FOR CONTACT HOUSING 7155096,7155112	Cosse	FOR CONTACT HOUSING 7155096,7155112	X
16	8582454 Cosse TEST CONNECTOR,FOR CONTACT HOUSING,8558538	Cosse	TEST CONNECTOR,FOR CONTACT HOUSING,8558538	X
17	7969256 Cosse EL-CENTRAL,RELAY DISTRIBUTION TERMINAL	Cosse	EL-CENTRAL,RELAY DISTRIBUTION TERMINAL	X
18	8135147 Cosse FOR CONTACT HOUSING 8135600	Cosse	FOR CONTACT HOUSING 8135600	X
18	8138679 Cosse FOR CONTACT HOUSING 8135600	Cosse	FOR CONTACT HOUSING 8135600	X
19	8522583 Cosse FOR CONTACT HOUSING 8530099	Cosse	FOR CONTACT HOUSING 8530099	X
20	8593964 Cosse FOR CONTACT HOUSING 8521718,8593964	Cosse	FOR CONTACT HOUSING 8521718,8593964	X
20	9519398 Cosse FOR CONTACT HOUSING,9519406	Cosse	FOR CONTACT HOUSING,9519406	X
20	9526401 Cosse FOR CONTACT HOUSING,9529512	Cosse	FOR CONTACT HOUSING,9529512	X
21	8509846 8522575 Cosse FOR CONTACT HOUSING 8378630	Cosse	FOR CONTACT HOUSING 8378630	X
21	8530107 Cosse FOR CONTACT HOUSING 8530115	Cosse	FOR CONTACT HOUSING 8530115	X
22	8514028 7155716 Cosse TEMP SENSOR,OIL PRESSURE SENSOR, ALTERNATOR,FOR CONTACT HOUSING 8516916	Cosse	TEMP SENSOR,OIL PRESSURE SENSOR, ALTERNATOR,FOR CONTACT HOUSING 8516916	X
22	8514036 Cosse STARTER,GROUND JOINT PIECE	Cosse	STARTER,GROUND JOINT PIECE	X
23	8521593 Cosse FAILUR SENSOR	Cosse	FAILUR SENSOR	X
23	9120783 30520556 Cosse AC DIOD FOR CONTACT HOUSING, 9124157,9502048	Cosse	AC DIOD FOR CONTACT HOUSING, 9124157,9502048	X
23	9120791 30520557 Cosse EL-CENTRAL,FAILUR SENSOR,RELAY AC,JOINT PIECE,REAR DEMIST,TIME RELAY AC,RELAY DIM DIP RELAY BELT WARNING RELAY FOG LIGHT EXTRA GEAR INDICATOR,HORN PUMP RELAY ABS,RELAY MOTOR,MAIN RELAY ABS	Cosse	EL-CENTRAL,FAILUR SENSOR,RELAY AC,JOINT PIECE,REAR DEMIST,TIME RELAY AC,RELAY DIM DIP RELAY BELT WARNING RELAY FOG LIGHT EXTRA GEAR INDICATOR,HORN PUMP RELAY ABS,RELAY MOTOR,MAIN RELAY ABS	X
23	4061586 Cosse FOR CONTACT HOUSING 4060885,4061446	Cosse	FOR CONTACT HOUSING 4060885,4061446	X
24	8521676 Cosse SPOTLIGHT,LIGHT ASH TRAY,FOR CONTACT HOUSING 8521692	Cosse	SPOTLIGHT,LIGHT ASH TRAY,FOR CONTACT HOUSING 8521692	X
24	8521684 Cosse FOR CONTACT HOUSING 8521692	Cosse	FOR CONTACT HOUSING 8521692	X
24	8582421 Cosse FOR CONTACT HOUSING 8521692	Cosse	FOR CONTACT HOUSING 8521692	X
25	8533028 8582439 Cosse FOR CONTACT HOUSING 8533184	Cosse	FOR CONTACT HOUSING 8533184	X
26	8541203 Cosse SPOTLIGHT,FOR SPOTLIGHT,FOR CONTACT HOUSING 8541229 8544363,8574949,9507658	Cosse	SPOTLIGHT,FOR SPOTLIGHT,FOR CONTACT HOUSING 8541229 8544363,8574949,9507658	X
27	8560476 Cosse FOR CONTACT HOUSING 8541229	Cosse	FOR CONTACT HOUSING 8541229	X
27	8541211 Cosse FOR CONTACT HOUSING 8544363	Cosse	FOR CONTACT HOUSING 8544363	X
28	8544298 8582595 Cosse FOR CONTACT HOUSING 8521700,8564919,9525106	Cosse	FOR CONTACT HOUSING 8521700,8564919,9525106	X
28	8544306 Cosse REAR DEMIST	Cosse	REAR DEMIST	X
28	8582090 Cosse FOR CONTACT HOUSING 9503525	Cosse	FOR CONTACT HOUSING 9503525	X
28	8582595 Cosse LIGHT NUMBER PLATE DOOR SWITCH,HIGH MOUNTED STOP LIGHT JOINT PIECE CENTRAL LOCK	Cosse	LIGHT NUMBER PLATE DOOR SWITCH,HIGH MOUNTED STOP LIGHT JOINT PIECE CENTRAL LOCK	X
29	8544314 8582603 Cosse FOR CONTACT HOUSING 8521718,8564924 9525114	Cosse	FOR CONTACT HOUSING 8521718,8564924 9525114	X
29	8544322 Cosse FOR CONTACT HOUSING 8564924	Cosse	FOR CONTACT HOUSING 8564924	X
30	8569139 Cosse EL-CENTRAL,RELAY DISTRIBUTION TERMINAL	Cosse	EL-CENTRAL,RELAY DISTRIBUTION TERMINAL	X
30	9515024 Cosse FUSE BOX,RELAY DISTRIBUTION TERMINAL, EL- CENTRAL	Cosse	FUSE BOX,RELAY DISTRIBUTION TERMINAL, EL- CENTRAL	X
31	9527771 Cosse FOR CONTACT HOUSING 9527755	Cosse	FOR CONTACT HOUSING 9527755	X
32	8582413 Cosse FOR CONTACT HOUSING 7155021	Cosse	FOR CONTACT HOUSING 7155021	X
33	8587552 Cosse FOR CONTACT HOUSING 8521700,9512591 9525106	Cosse	FOR CONTACT HOUSING 8521700,9512591 9525106	X
33	8587560 Cosse FOR CONTACT HOUSING 9512591	Cosse	FOR CONTACT HOUSING 9512591	X
34	9521972 Cosse RELAY GROUND SHEET	Cosse	RELAY GROUND SHEET	X
34	9521980 30520556 Cosse RELAY GROUND SHEET	Cosse	RELAY GROUND SHEET	X
35	4063970 12790467 Cosse FOR CONTACT HOUSING 4060869,9565045	Cosse	FOR CONTACT HOUSING 4060869,9565045	X
36	7874498 Connexion FOR CONTACT HOUSING 9503277,9503316,9503418 9503434,9503475,9506668 9519679	Connexion	FOR CONTACT HOUSING 9503277,9503316,9503418 9503434,9503475,9506668 9519679	X
36	8547796 Bloc connexion SIDE DIRECTION INDIC FOR CONTACT HOUSING, 9503277,9503319,9503418 9503475,9519679	Bloc connexion	SIDE DIRECTION INDIC FOR CONTACT HOUSING, 9503277,9503319,9503418 9503475,9519679	X
36	8547804 Bloc connexion	Bloc connexion		X
37	7874506 Connexion FOR CONTACT HOUSING 9501685,9503426,9506668	Connexion	FOR CONTACT HOUSING 9501685,9503426,9506668	X
37	8547770 Bloc connexion FOR CONTACT HOUSING 9501685,9503327,9503426 9503442,9506668	Bloc connexion	FOR CONTACT HOUSING 9501685,9503327,9503426 9503442,9506668	X
38	8522542 Cosse FOR CONTACT HOUSING,7155120	Cosse	FOR CONTACT HOUSING,7155120	X
39	8522617 Cosse AC	Cosse	AC	X
40	8582579 Cosse JOINT PIECE	Cosse	JOINT PIECE	X
41	9508706 12789796 Cosse RELAY GROUND SHEET	Cosse	RELAY GROUND SHEET	X
41	9120668 12789796 Cosse BULB CONTROL INTERVAL RELAY,TIME RELAY AC,RELAY BELT WARNING,FOR CONTACT HOUSING,8579930,8593899 8593907,8593915,8593931 8593949,8597064,9123381 9123548,9123555,9125519	Cosse	BULB CONTROL INTERVAL RELAY,TIME RELAY AC,RELAY BELT WARNING,FOR CONTACT HOUSING,8579930,8593899 8593907,8593915,8593931 8593949,8597064,9123381 9123548,9123555,9125519	X
41	9120957 12789796 Cosse FOR CONTACT HOUSING 4061479,4061503,4068441 4068888,4069274,9503475 9518713,9525031,9565045	Cosse	FOR CONTACT HOUSING 4061479,4061503,4068441 4068888,4069274,9503475 9518713,9525031,9565045	X
42	9552100 Cosse FOR CONTACT HOUSING,4061495,4069928 9122557,9518739	Cosse	FOR CONTACT HOUSING,4061495,4069928 9122557,9518739	X
42	9552126 9552100 Cosse FOR CONTACT HOUSING,9122557	Cosse	FOR CONTACT HOUSING,9122557	X
42	4063376 Cosse FOR CONTACT HOUSING,4060877	Cosse	FOR CONTACT HOUSING,4060877	X
43	9552175 Cosse FOR CONTACT HOUSING 9552167	Cosse	FOR CONTACT HOUSING 9552167	X
43	9509746 Cosse FOR CONTACT HOUSING 9512930	Cosse	FOR CONTACT HOUSING 9512930	X
45	7155203 Douille raccord 40/253 164 008	Douille raccord	40/253 164 008	X
45	7155146 Douille raccord 40/253 188 007	Douille raccord	40/253 188 007	X
45	7155633 Douille raccord 40/253 221 006	Douille raccord	40/253 221 006	X
46	8587198 Joint câble	Joint câble		X
46	8521668 Joint câble	Joint câble		X
