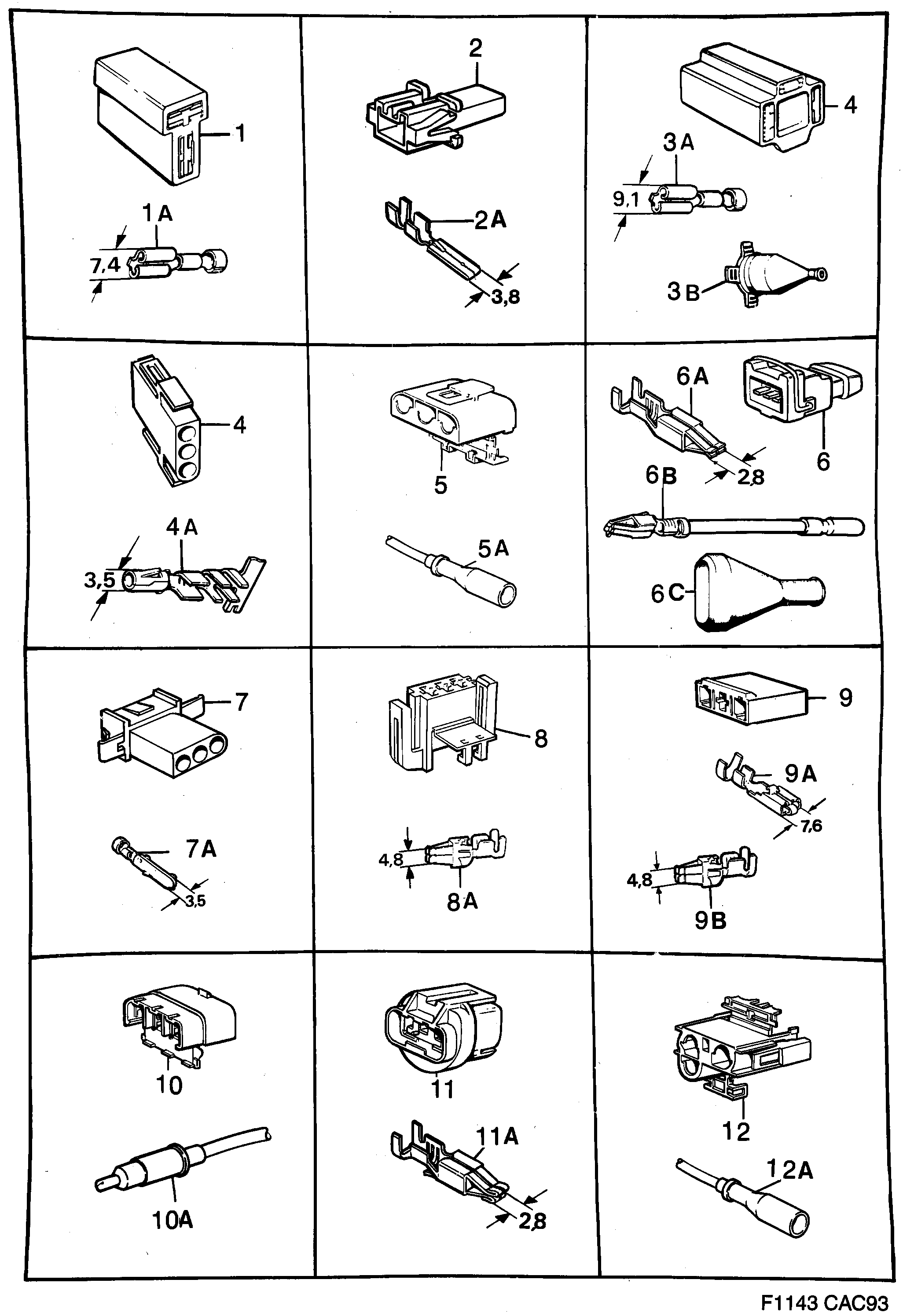

170: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1990) | Pour 9000 (1990)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155096 Boîte connexion 2-poles, broches | SWITCH BRAKE LIGHT | X | |
| 1A | 7971708 Cosse AREA,0,5-1,5 MM2 | X | |
| 2 | 9518713 Boîtier contact 2-poles, broches | BY-PASS,SIDE DIRECTION INDICATOR,JOINT PIECE | X | |
| 2A | 9552100 Cosse AREA,0,75-1,5 MM2 | X | |
| 3 | 7155021 Boîtier contact 3-poles, douille | HEADLIGHT | X | |
| 3A | 8582413 Cosse AREA,1,3-3,4 MM2 | X | |
| 3B | 8552721 Protège-câble | X | |
| 4 | 8564916 Boîtier contact 3-poles, douille | JOINT PIECE,JOINT PIECE B-PILLAR LH AND RH | X | |
| 4A | 8582595 Cosse AREA,0,5-2,0 MM2 | X | |
| 5 | 9503277 Boîtier contact 3-poles, douille | SPEED CONTROL,HEADLIGHT WIPERS,WIPER MOTOR, LEVEL CONTROL,CENTRAL LOCK,ABS,HEADLIGHT LEVELLING,FAN,BY-PASS THEFT ALARM DOOR | X | |
| 5A | 8547796 Bloc connexion | X | |
| 5A | 8547812 Bloc connexion | X | |
| 6 | 8593907 Boîtier contact 3-poles, douille | THROTTLE SWITCH,JOINT PIECE DI/APC,SOLENOID VALVE APC | X | |
| 6A | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 6A | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X | |
| 6B | 8522617 Cosse AREA,1,0-2,6 MM2 | X | |
| 6C | 8579955 Protection | X | |
| 7 | 8564924 Boîtier contact 3-poles, broche | JOINT PIECE,NUMBER PLATE LIGHT,JOINT PIECE CABLE HARNESS DOORS JOINT PIECE TRUNK LID | X | |
| 7A | 8582603 Cosse AREA 0,5-2,0 MM2 | X | |
| 7A | 8544322 Cosse AREA 2,0-4,0 MM2 | X | |
| 8 | 9124165 Boîtier contact 3-poles, douille | JOINT PIECE,LIGHT ASH TRAY REAR,ELECTRONIC UNIT REOSTAT,CLOCK SPEEDOMETER,REOSTAT JOINT PIECE PASSENGER SEAT | X | |
| 8A | 9120791 30520557 Cosse AREA 2,5-4,0 MM2 | X | |
| 9 | 9507658 Boîtier contact 3-poles, douille | SWITCH INNER LIGHT | X | |
| 9A | 9120775 30520555 Cosse AREA 0,5-1,5 MM2 | X | |
| 9A | 8560476 Cosse AREA 0,9-2,0 MM2 | X | |
| 9B | 9120791 30520557 Cosse AREA 2,5-4,0 MM2 | X | |
| 10 | 9503327 Boîtier contact 3-poles, broche | JOINT PIECE,JOINT PIECE CABLE MAIN CABLE HARNESS/ABS | X | |
| 10A | 8547770 Bloc connexion | X | |
| 11 | 9514803 Boîtier contact LHD | 3-poles, douille | HEADLIGHT | X | |
| 11A | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X | |
| 12 | 9519679 Boîtier contact 3-poles, douille | DIRECTION LIGHT,SIDE BACK-UP LIGHT | X | |
| 12A | 8547796 Bloc connexion | X | |
| 12A | 7874498 Connexion | X |
