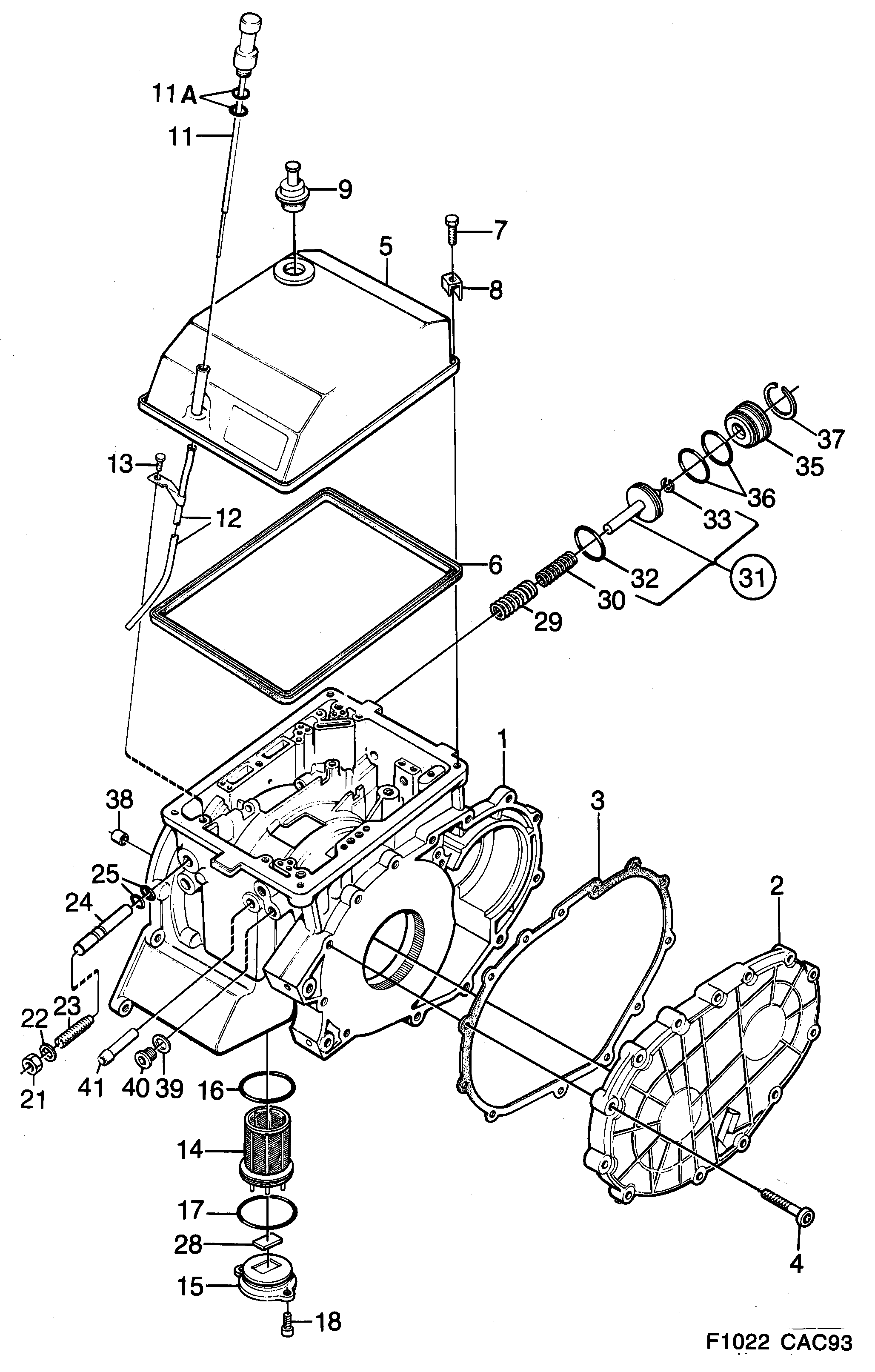

560: Transmission - Boîte de vitesses, automatique - Carter de boîte vitesses, couvercle
(1990 - 1993 | A) | Pour 9000 (1990)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4025086 Carter boîte vitesses -2008 | TURBO | 1 | |||
| 1 | 4122065 Carter boîte vitesses TURBO | 1 | |||
| 1 | 7599798 Carter boîte vitesses -2008 | I | 1 | |||
| 1 | 4122057 Carter boîte vitesses I | 1 | |||
| 2 | 7597784 Couvercle | 1 | |||
| 3 | 7556228 4477378 Joint -2001 | 1 | |||
| 4 | 7557754 Vis | 13 | |||
| 5 | 7574031 Couvercle -2006 | 1 | |||
| 6 | 7592330 Joint | 1 | |||
| 7 | 7557895 Vis -2005 | 4 | |||
| 8 | 7558828 Tôle verrouillage -2005 | 4 | |||
| 9 | 7597222 Robinet purge | 1 | |||
| 11 | 4026449 Jauge | 1 | |||
| 11A | 7594880 Joint torique | 1 | |||
| 12 | 7571334 Tuyau -2001 | 1 | |||
| 13 | 7557887 Vis | 1 | |||
| 14 | 7599525 Filtre | 1 | |||
| 15 | 7577562 Couvercle | 1 | |||
| 16 | 7594187 Joint torique | 1 | |||
| 17 | 7597776 Joint torique | 1 | |||
| 18 | 7557804 Vis -2004 | 3 | |||
| 21 | 4026753 Ecrou | 1 | |||
| 22 | 7933872 Rondelle | 1 | |||
| 23 | 7554934 Vis réglage | 1 | |||
| 24 | 7554926 Boulon -2006 | 1 | |||
| 25 | 7594179 Joint torique | 2 | |||
| 28 | 7576788 Aimant | 1 | |||
| 29 | 7558232 Ressort pression | 1 | |||
| 30 | 7558240 Ressort pression | 1 | |||
| 31 | 7576937 Piston | 1 | |||
| 32 | 7552250 Joint torique | 1 | |||
| 33 | 7559008 Circlip | 1 | |||
| 35 | 7554967 Couvercle | 1 | |||
| 36 | 7556996 Joint torique | 2 | |||
| 37 | 7557093 Anneau verrouillage | 1 | |||
| 38 | 7573819 Douille | 1 | |||
| 39 | 7558356 Bague étanchéité | 2 | |||
| 40 | 7558521 Tampon | 2 | |||
| 41 | 7571490 Tuyau | 1 | |||
7575525 Kit réparation Filtre de rechange | X | ||||
7496094 Kit joints B202 | Phase 1-2 | X | ||||
7496102 Kit joints B202 | Phase 3 | X | ||||
