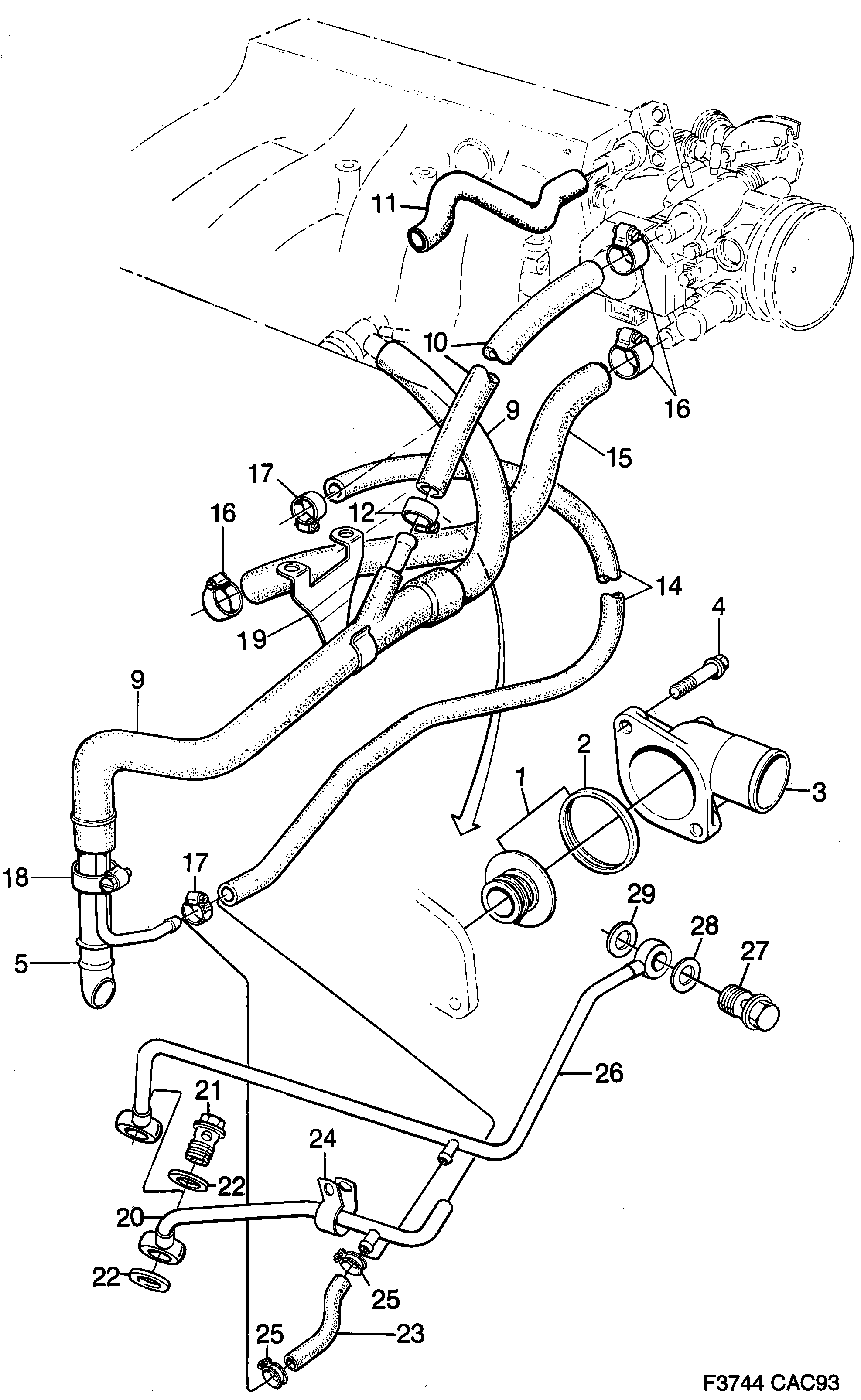

2060: Moteur - Système de refroidissement - Thermostat, etc
(1990 - 1993) | Pour 9000 (1991)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 8817298 30577561 Jeu thermostat 89°C | 1 | |
| 1 | 8817538 Jeu thermostat 82°C | 1 | |
| 2 | 8352692 9176165 Joint | 1 | |
| 3 | 9117508 Couvercle | 1 | |
| 4 | 8125189 Vis | 2 | |
| 5 | 7588551 Tuyau 1990-1992 | 1 | |
| 9 | 7561756 Flexible B202I | 1 | |
| 9 | 7519697 Flexible TURBO | 1 | |
| 10 | 7520018 Flexible B202TURBO | 1 | |
| 10 | 7519531 Flexible B234TURBO | 1 | |
| 10 | 7873045 Flexible 1991-1993 | B202I | 1 | |
| 11 | 9107640 Flexible 1990- | B234I | 1 | |
| 11 | 9107640 Flexible LHD | B234I | 1 | |
| 12 | 8359275 90530642 Collier serrage 1991-1993 | 1 | |
| 14 | 7520026 Flexible I | 1 | |
| 15 | 7520034 Flexible B202 | 1 | |
| 15 | 9107632 Flexible 1990- | B234I | 1 | |
| 15 | 9107632 Flexible LHD | B234I | 1 | |
| 15 | 9106998 Flexible B234TURBO | 1 | |
| 16 | 4087649 Collier serrage | 3 | |
| 17 | 8359275 90530642 Collier serrage I | 2 | |
| 17 | 7963515 90572589 Collier serrage TURBO | 2 | |
| 18 | 7963523 7970064 Collier serrage | 1 | |
| 19 | 7519788 30539192 Console 1991-1993 | I | 1 | |
| 19 | 9125832 30539192 Console 1991-1993 | TURBO | 1 | |
| 21 | 7583628 Vis TURBO | 1 | |
| 22 | 8124158 Joint TURBO | 2 | |
| 23 | 9116765 30520450 Flexible TURBO | 1 | |
| 25 | 7968308 Collier serrage 1991-1993 | TURBO | ALT TO 89 75 237 | 2 | |
| 26 | 9114109 Tuyau 1990-1992 | TURBO | T25 | 1 | |
| 27 | 8123903 92150977 Vis banjo 1990- | TURBO | 1 | |
| 28 | 8124141 92150435 Joint 1990- | TURBO | 1 | |
| 29 | 8326712 4161162 Joint 1990- | TURBO | 1 |
