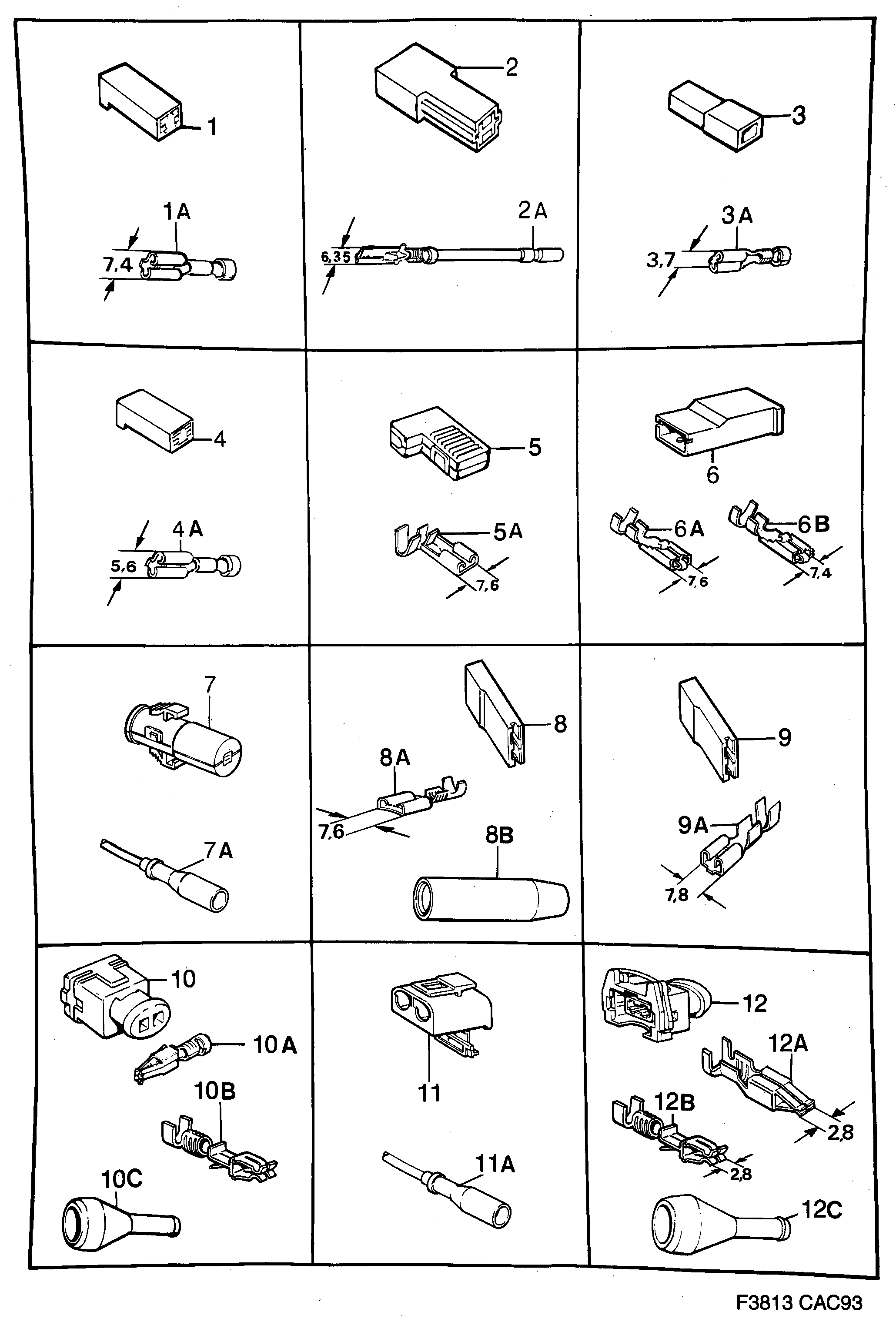

560: Système électrique, boîte de connexion - Conduites et fusibles - Connecteur, etc
(1992) | Pour 9000 (1992)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 7155112 Boîtier contact 1-poles, douille | IGNITION PULS,MAKE UP MIRROR,HIGH MOUNTED STOP LIGHT STOP LIGHT | X | |
| 1A | 7971708 Cosse AREA,0,5-1,5 MM2 | X | |
| 1A | 8522534 Cosse AREA,0,5-1,5 MM2 | X | |
| 2 | 7155120 Boîtier contact 1-poles, broche | EL-MIRROR,EL-CENTRAL LIGHT GEAR INDICATOR | X | |
| 2A | 8522542 Cosse AREA,1,0-2,6 MM2 | X | |
| 3 | 8530115 Boîtier contact 1-poles, broche | LOUDSPEAKER | X | |
| 3A | 8530107 Cosse AREA,0,5-1,0 MM2 | X | |
| 4 | 8533184 Boîtier contact 1-poles, broche | LOUDSPEAKER | X | |
| 4A | 8582439 Cosse AREA,0,5-1,5 MM2 | X | |
| 5 | 8521692 Boîtier contact 1-poles, douille | IGNITION COIL,REAR DEMIST,LIGHT ASH TRAY, ENGINE COMPARTMENT LIGHT | X | |
| 5A | 8522526 Cosse AREA,0,5-1,5 MM2 | X | |
| 5A | 8521684 Cosse AREA,1,0-2,5 MM2 | X | |
| 6 | 8541229 Douille d'isolation 1-poles, broche | SPOTLIGHT,SAFETY BELT WARNING,SWITCH SPOT- LIGHT,LIGHT INSTEP LIGHT NUMBER PLATE GLOVE COMPARTMENT LIGHT | X | |
| 6A | 8541203 Cosse AREA,0,5-1,5 MM2 | X | |
| 6B | 8560476 Cosse AREA,0,9-2,0 MM2 | X | |
| 7 | 9503418 Boîte connexion 1-poles, douille | COMPRESSOR | X | |
| 7A | 8547796 Bloc connexion | X | |
| 8 | 8516916 Isolant 1-poles, douille | THERMO CONTACT,LIGHT ASH TRAY,SWITCH HORN, HORN,LIGHT LUGGAGE COM- PARTMENT,FOG LIGHT SWITCH HAND BRAKE STARTER MOTOR,JOINT PIECE REAR DOOR | X | |
| 8A | 7155716 Cosse AREA,0,5-1,5 MM2 | X | |
| 8A | 8514036 Cosse AREA,1,5-2,5 MM2 | X | |
| 8B | 9569997 Protection | X | |
| 9 | 8378630 Boîtier contact 2-poles, douille | PEDAL CONTACT SPEED CONTROL,JOINT PIECE BRAKE,JOINT PIECE CLUTCH | X | |
| 9A | 8522575 Câblage AREA,0,5-1,4 MM2 | X | |
| 10 | 8593899 Boîtier contact 2-poles, douille | AUXILIARY AIR VALVE INJECTION VALVE,KNOCK SENSOR,FUEL SYSTEM MAIN VALVE,VENTILATION COLD START VALVE BY-PASS,TEMP SENSOR | X | |
| 10A | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 10B | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X | |
| 10C | 8521619 Protection | X | |
| 11 | 9503319 Boîtier contact 2-poles, douille | EL. WINDOW REGULATOR STD FAN,LEVEL GUARD RADIATOR,LEVEL SWITCH WASHER MOTOR,FAN AC FOG LIGHT,JOINT PIECE OUTER TEMP,JOINT PIECE THERMO CONTACT,MICRO SWITCH,FAN,FOG LIGHT EXTRA,ABS,SWITCH,HORN | X | |
| 11A | 8547796 Bloc connexion | X | |
| 12 | 8593915 Boîtier contact 2-poles, douille | THERMO SWITCH | X | |
| 12A | 8521593 Cosse AREA,0,5-1,5 MM2 | X | |
| 12B | 9120668 12789796 Cosse AREA,0,75-1,5 MM2 | X | |
| 12C | 8571382 Protection | X |
