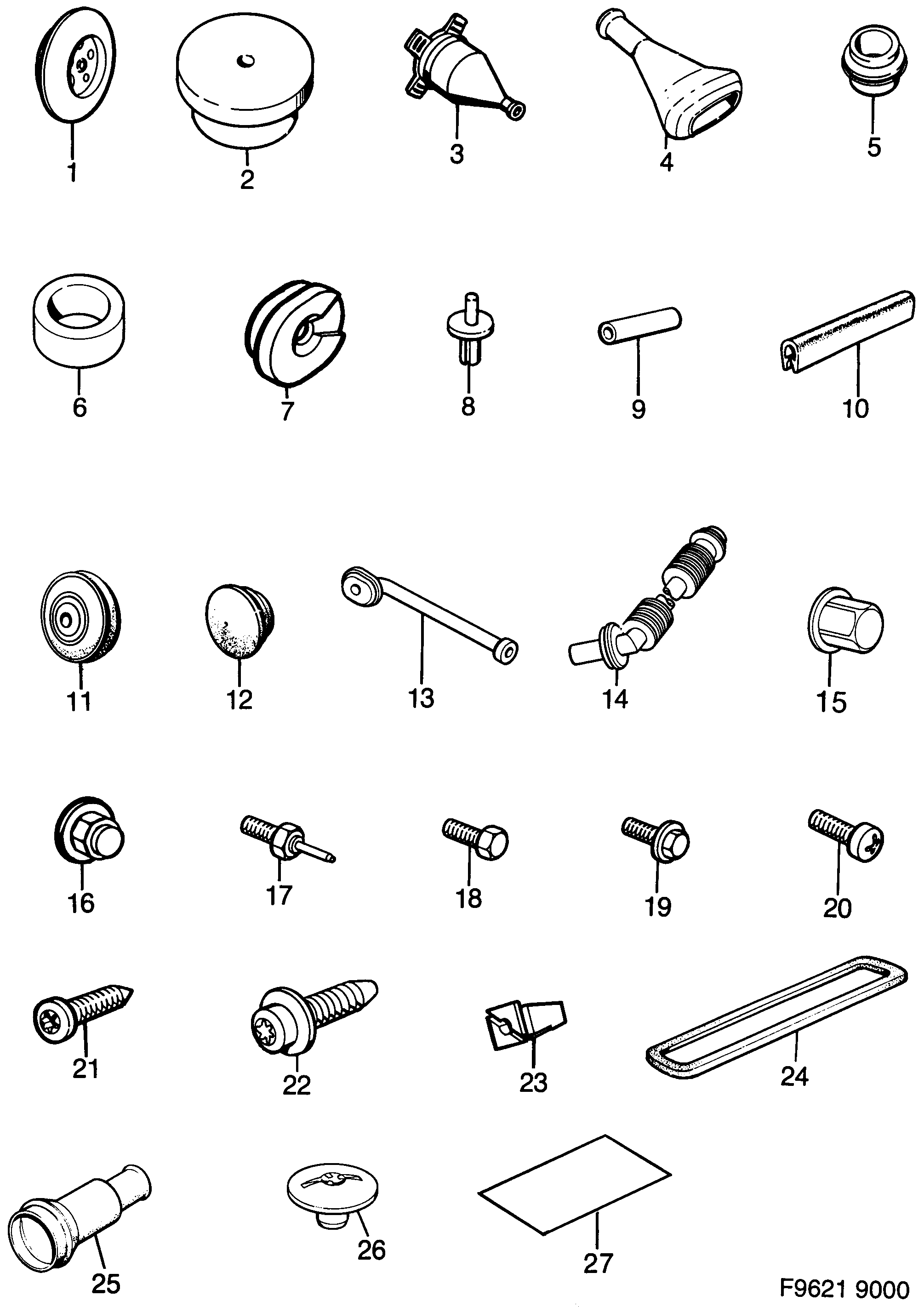

2040: Système électrique, généralités - Conduites et fusibles - Bagues, colliers de serrage
(1994 - 1998) | Pour 9000 (1997)
| Pos. | Réf. | Qté | |
|---|---|---|---|
| 1 | 9507666 Passe-câble | 1 | |
| 2 | 9523622 Bague Montant A | Ø 60 MM | 2 | |
| 2 | 9523465 Bague Câblage principal | Ø 60 MM | 2 | |
| 3 | 8552721 Protège-câble câblage | 4 | |
| 4 | 8579955 Protection | 1 | |
| 5 | 9502840 Passe-câble | 1 | |
| 6 | 9519570 Joint Câblage principal | 1 | |
| 7 | 9508482 Bague | X | |
| 8 | 9517889 7399256 Rivet | X | |
| 9 | 9529660 Protection support, boîte à relais | 1 | |
| 10 | 7591035 Lisse protection L= 55 MM | X | |
| 10 | 9519737 Lisse protection L=140 MM | X | |
| 10 | 8497471 8564973 Lisse protection L=150 MM | X | |
| 11 | 7326093 Bague protection | X | |
| 12 | 9267881 4333563 Tampon Ø 6,7 MM | X | |
| 12 | 6942775 Tampon Ø 25 MM | X | |
| 13 | 9503491 Passe-câble | X | |
| 14 | 9507690 Soufflet | X | |
| 15 | 4087128 92152035 Ecrou plastique 1995-1998 | X | |
| 16 | 7975576 92153043 Ecrou relais | EW | 1 | |
| 17 | 7974090 7399348 Vis | X | |
| 18 | 7971757 7528953 Vis masse | M8X10 | X | |
| 18 | 8082935 Vis M8X16 | X | |
| 18 | 7967938 55562121 Vis masse | M8X16 | X | |
| 18 | 8091738 Vis M8X18 | X | |
| 19 | 7972607 92153146 Vis M6X12 | X | |
| 19 | 7978091 11900353 Vis M6X12 | X | |
| 19 | 7972466 Vis M6X16 | X | |
| 19 | 7978109 11900354 Vis M6X16 | X | |
| 19 | 7973555 Vis M6X22 | X | |
| 19 | 7972623 92153212 Vis M8X16 | X | |
| 19 | 7971823 Vis B8X16 | X | |
| 19 | 8286296 Vis masse | X | |
| 19 | 8125007 Vis masse | M6FS6X12 | X | |
| 19 | 7969223 Vis M6FS6X12 | X | |
| 19 | 7974397 Vis antiparasitage radio | X | |
| 20 | 7922354 92153219 Vis 4,8X13 | X | |
| 20 | 7922826 Vis 4,8X16 | X | |
| 20 | 7970536 92150118 Vis 4,8X16 | X | |
| 20 | 7922362 Vis 4,8X16 | X | |
| 20 | 7977465 92153149 Vis 4,8X19 | X | |
| 20 | 7399520 Vis AIR-BAG | X | |
| 21 | 7922420 Vis masse | ABS | X | |
| 21 | 7922420 Vis relais | X | |
| 21 | 7922503 Vis câble de batterie | X | |
| 21 | 8059552 92151821 Vis 1994-1997 | hayon | X | |
| 21 | 7972805 Vis | X | |
| 21 | 7971294 Vis masse | X | |
| 21 | 8410961 Vis | X | |
| 21 | 7922420 Vis relais | X | |
| 22 | 7972946 92150102 Vis | X | |
| 22 | 7972953 92151994 Vis | X | |
| 23 | 7975261 Ecrou masse | ABS | X | |
| 23 | 7977358 Ecrou de compression relais | X | |
| 24 | 9564204 Joint | 1 | |
| 25 | 9120106 30520533 Protection | 1 | |
| 27 | 4242087 Plaque entretoise | X |
