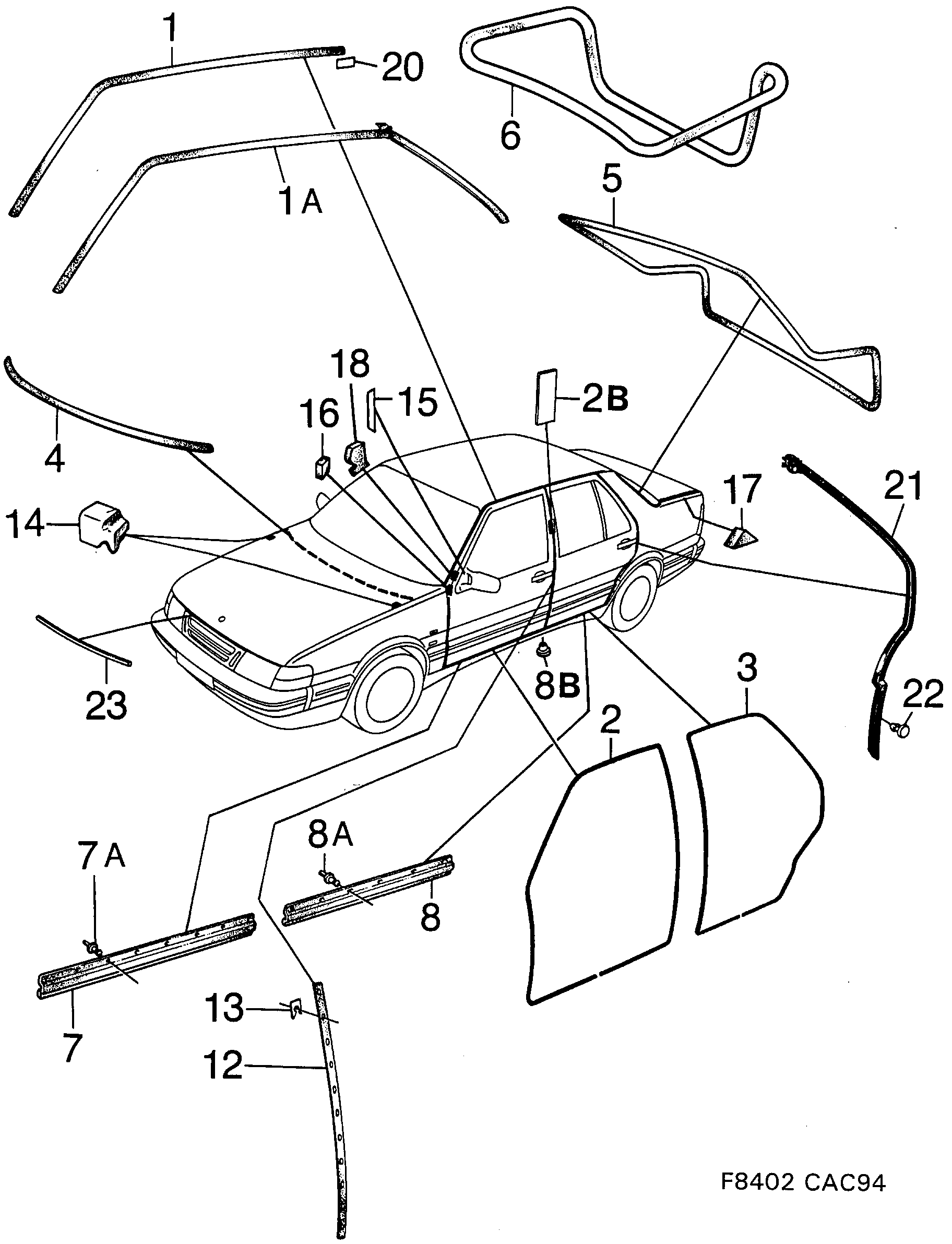

1170: Carrosserie, extérieur - Eléments extérieurs - Autres joints
(1994 - 1998) | Pour 9000 (1997)
| Pos. | Réf. | Qté | |||
|---|---|---|---|---|---|
| 1 | 4559043 Joint 1995- | LH | 1 | |||
| 1 | 4559035 Joint 1995- | RH | 1 | |||
| 1A | 4559050 Joint 1995-1997 | LH | 1 | |||
| 1A | 4559068 Joint 1995-1997 | RH | 1 | |||
| 2 | 4493219 Joint 1994- | Noir | LH | 1 | |||
| 2 | 4493227 Joint 1994- | Noir | RH | 1 | |||
| 2B | 4305777 Ruban adhésif | 24 | |||
| 3 | 4493235 Joint 1994- | Noir | LH | 1 | |||
| 3 | 4493243 Joint 1994- | Noir | RH | 1 | |||
| 4 | 4014577 Joint | 1 | |||
| 5 | 4307476 Joint 1995- | 1 | |||
| 6 | 4559647 Joint 1995-1997 | 1 | |||
| 7 | 4102075 Joint LH | 1 | |||
| 7 | 4102067 Joint RH | 1 | |||
| 7 | 4303699 Enjoliveur Concerne également la voiture jubilé, 50 ans. | 2 | |||
| 7A | 9087289 Clip | 8 | |||
| 8 | 4096871 4853552 Joint -1997 | LH | 1 | |||
| 8 | 4096889 4853545 Joint -1997 | RH | 1 | |||
| 8 | 4853552 Joint 1997- | LH | 1 | |||
| 8 | 4853545 Joint 1997- | RH | 1 | |||
| 8 | 4303707 Enjoliveur Concerne également la voiture jubilé, 50 ans. | 2 | |||
| 8A | 9087289 Clip | 8 | |||
| 8B | 6930572 12803392 Tampon Concerne également la voiture jubilé, 50 ans. | 2 | |||
| 12 | 9262965 Joint LH | 1 | |||
| 12 | 9262957 Joint RH | 1 | |||
| 13 | 9262940 Clip | 20 | |||
| 14 | 6956783 Joint | 2 | |||
| 15 | 9277237 Cale | 2 | |||
| 16 | 9277690 Lisse étanchéité | 2 | |||
| 17 | 9279548 Lisse étanchéité | 2 | |||
| 18 | 4494993 Joint 1994- | 2 | |||
| 20 | 9288127 Ruban LENGTH 770MM | X | |||
| 21 | 9089434 Joint LH | 1 | |||
| 21 | 9089426 Joint RH | 1 | |||
| 22 | 9087289 Clip | 14 | |||
| 23 | 1 | ||||
